Introduction to C-Type Independent Manipulator Stamping Production Line

In modern metal forming, stamping is a crucial process, and its level of automation directly impacts production efficiency. The C-type independent manipulator, as an innovative achievement in stamping automation, is reshaping traditional stamping production methods with its unique structure and superior performance, providing strong technical support for enterprises to achieve intelligent upgrades. This article will help you understand the components and characteristics of the C-type independent manipulator stamping production line.

Components

1. Destacking System

The destacking trolley loads sheets and moves them to the destacking work area. Magnetic devices or serrated picks can be used to separate the upper layers of sheets, which are then picked up by a destacking manipulator. To improve production efficiency, this production line is typically configured with double destacking stations.

2. C-Type Independent Manipulator

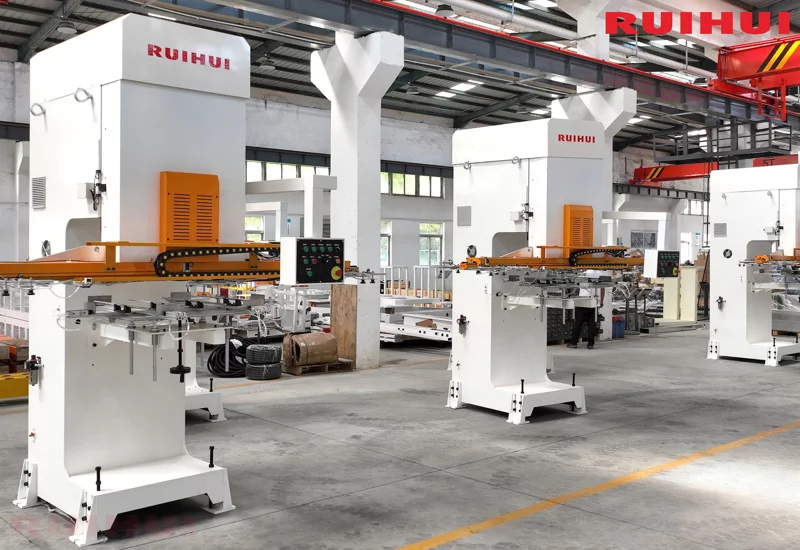

The manipulator's overall frame has a C-shaped structure, hence its name. The C-Type independent manipulator is responsible for transferring workpieces between the presses, and each manipulator can work independently.

3. Press Machine

This production line typically consists of 2 to 6(even more) presses, which perform different processes such as punching and forming.

4. Conveyor Belt



The conveyor belt is responsible for smoothly transporting the finished products to the manual receiving area.

Main Features

1. High Stability

The C-Type structure design allows the manipulator to remain stable under high-speed operation and heavy load conditions, making it less prone to shaking or wobbling, and accurately placing the workpiece into the mold.

2. Easy Maintenance

The independent design allows for individual repair or replacement of a single manipulator in case of malfunction, without causing prolonged downtime for the entire production line.

Application

Independent C-type manipulator stamping lines are suitable for processing medium to large-sized production in the home appliance industry, typically used for stamping components such as television back panels, refrigerator outer shells, and washing machine outer shells. With its excellent material handling capabilities, it provides higher production efficiency and ensures higher finished product quality.

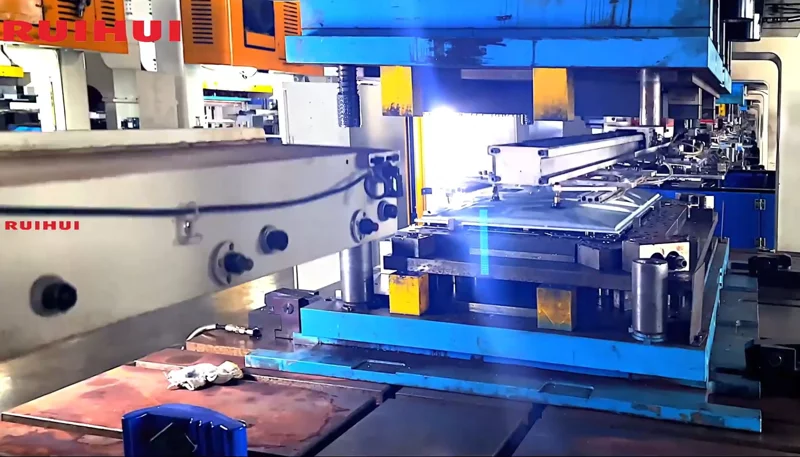

This video showcases RUIHUI's C-type independent manipulator stamping line in the process of producing TV back panels. If you are interested in this production line or have any questions, feel free to contact us. Thank you for reading.
