Introduction to Independent Manipulator Stamping Production Line

With the development of technology, stamping production lines are moving towards automation. The independent manipulator stamping production line is one such representative example. To achieve automation, accuracy and stability must be ensured. Next, we will discuss the components of an independent manipulator stamping production line and how it works.

Working Principle

An independent manipulator is connected in series with two presses; multiple series combinations form an independent manipulator stamping line. To ensure the stable operation of the series production line, the manipulator automatically and orderly transfers workpieces between various workstations according to a pre-set program.

Components

1. Destacking System

The destacking system uses magnetic force to separate a portion of the stacked material from the top layer. Suction cups at the end of a robotic arm then extract each piece individually and transfer it to a waiting area.

2. Independent manipulator



Independent manipulators are the core component of this production line. They can be driven independently, using the servo system, enabling precise coordinated control.

3. Press Machine

The manipulator handles the transfer of workpieces, while the press machine performs the stamping. Multiple press machines can work in series to complete different processing steps sequentially.

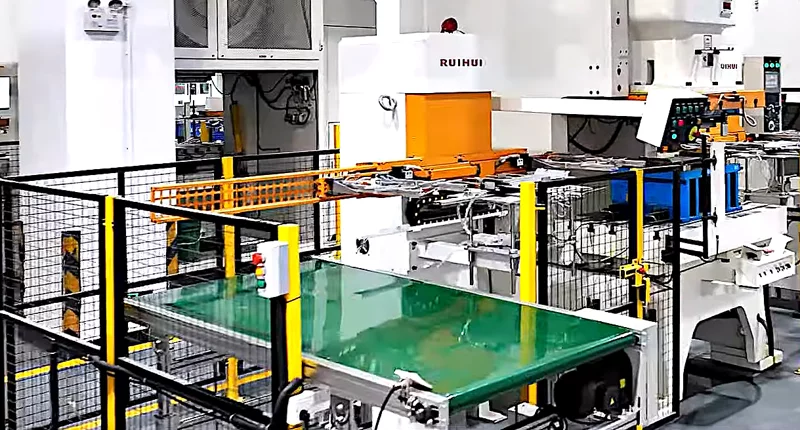

4. Conveyor Belt

A movable conveyor belt is used at the end to transport finished products transferred by the robotic arm, which are then collected and sorted manually. When not in use, it can be moved or relocated for use elsewhere.

Main Features

1. High Flexibility

Each manipulator can be controlled independently. Parameters can be set based on production requirements to ensure stable production.

2. High Degree of Automation

Whether it's destacking or transferring workpieces, the manipulator can replace manual operations, making it safer and more efficient.

Application

Products in the 3C electronics industry come in diverse specifications, and components typically require high precision for accurate assembly. Independent manipulator stamping lines are mainly used for the multi-step forming of small to medium-sized products, making them well-suited for the 3C electronics industry. Typical products include desktop computer casing and laptop housing components.

This video shows you RUIHUI's independent manipulator, C-type independent manipulator, and connecting rod type manipulator. If you are interested in these or have any questions, feel free to contact us. Thank you for reading.
