Connecting Rod Type Manipulator Stamping Line
Models List
-
RBT-2
-
RBT-3

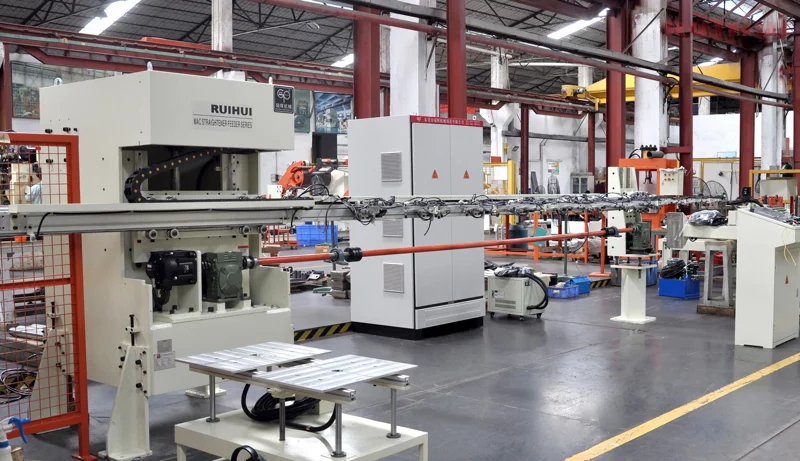

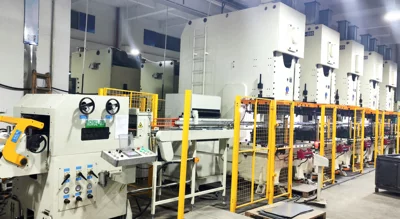

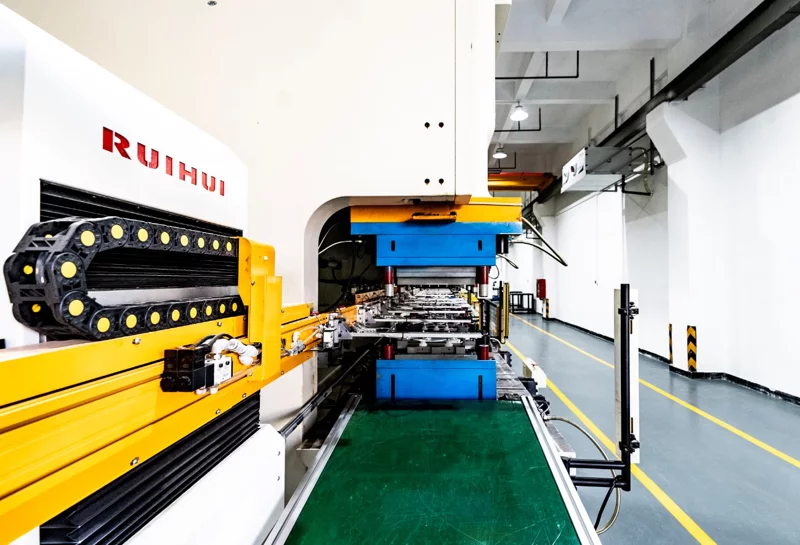

The connecting rod type manipulator stamping line integrates a three-in-one feeder, positioning conveyor, connecting rod type manipulator, and presses into a single system, achieving automated feeding, transferring, and stamping, and significantly improving production efficiency. With the connecting rod type manipulator, parts can be directly and rapidly transferred between presses. The positioning conveyor ensures precise alignment, guaranteeing that parts arrive accurately at each press station. This process requires minimal manual intervention, greatly shortening transfer time, reducing transfer errors, and enhancing production continuity and stability, resulting in a compact, highly efficient stamping operation.
| Item | RBT-2 | RBT-3 |
|---|---|---|
| Feeding Length mm | ~1200 | ~1500 |
| Up/Down Stroke mm | ~100 | ~100 |
| Cycle Time sec | 1.7~ | 2.5~ |
| Maximum Part Weight kg | 4.0×2 | 4.0×2 |
| Repeatability mm | ±0.3 | ±0.3 |
| Motor Power kw | 2.0 feed, 2.0 up and down | 2.0 feed, 2.0 up and down |
| Workpiece Pick Up | Vacuum, Magnet | Vacuum, Magnet |
| Machine Weight kg | About 400 | About 400 |

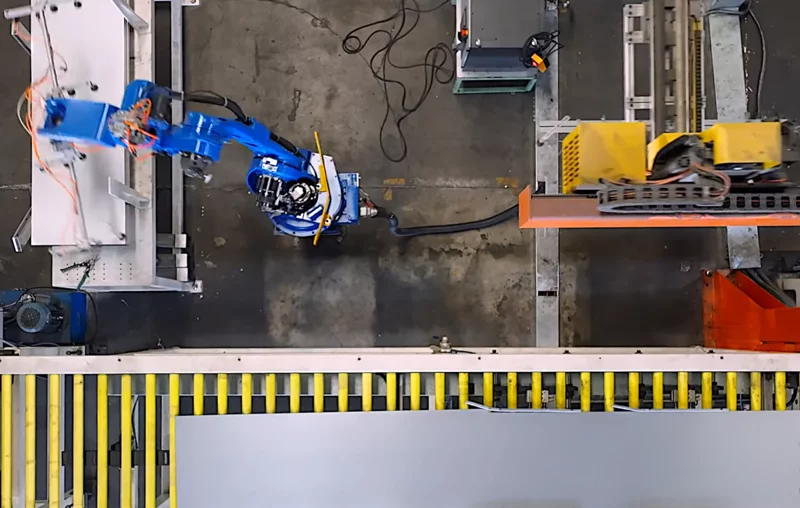

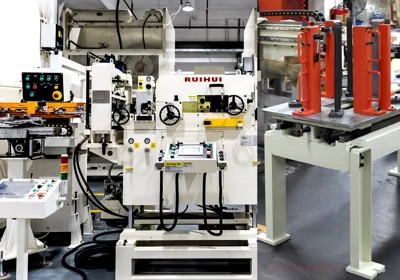

Automatic destacking and loading
The robot is used to complete automatic destacking and loading, replacing manual operations and improving production efficiency.

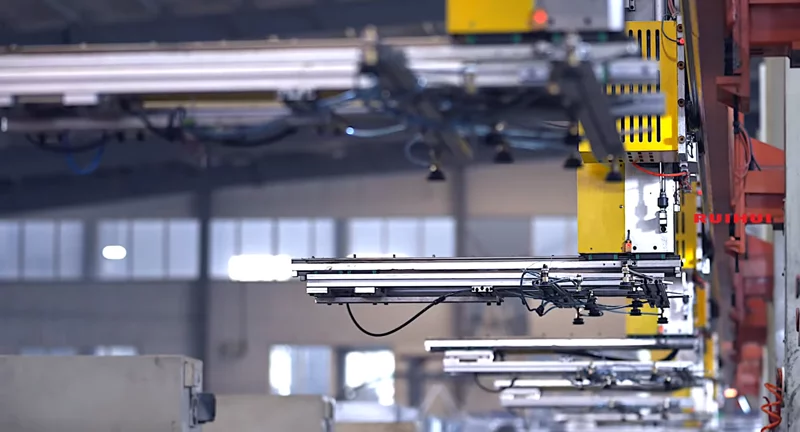

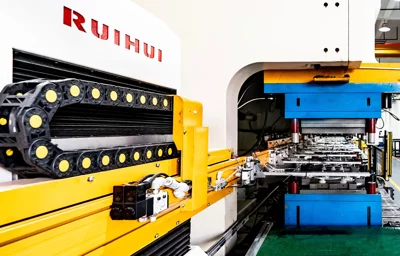

Connecting rod type translation manipulator
The connecting rod design makes the horizontal movement of the robot consistent and the transmission speed fast, which is highly efficient in completing simple process processing.

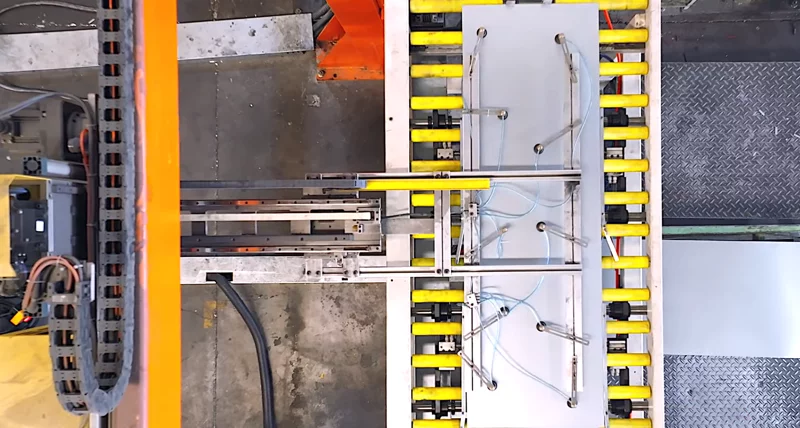

Material positioning
In order to ensure the uniformity and continuity of the linkage translation, the materials are positioned and calibrated before being conveyed to the press to ensure that they can be accurately placed in the press.
