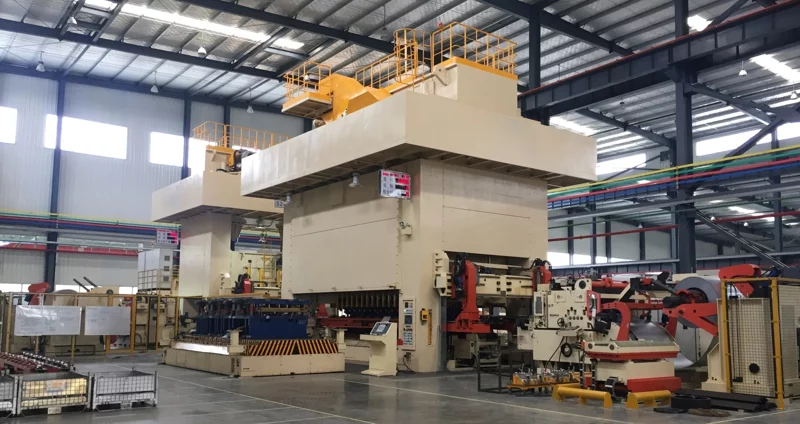

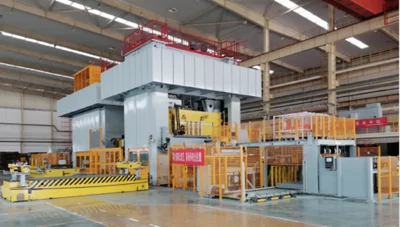

3-Axis Transfer Tandem Stamping Line

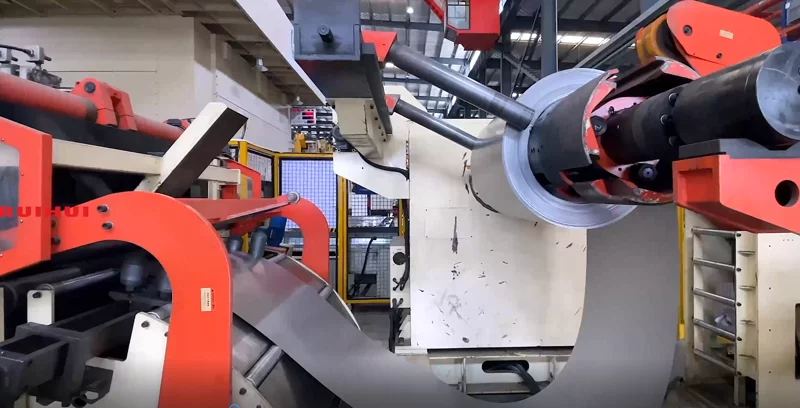

The 3-axis transfer tandem stamping line integrates 3-axis transfer systems with multiple presses, supporting six stamping modes to flexibly handle multi-variety and small-batch production. The line combines uncoiling, leveling, feeding, destacking, transferring, stamping, and stacking in a compact layout, reducing space and foundation investment. Its optimized scrap collection system enhances production site efficiency. With speeds up to 25spm (single press) and 15spm at 1500mm pitch in tandem mode, it delivers outstanding cycle performance. Ideal for industries such as automotive, home appliances, and metal parts, this solution offers high efficiency, intelligence, and competitiveness.
| Item | 3-Axis Transfer Tandem Stamping Line |
|---|---|
| Maximum Sheet Width mm | 1800*1200 |
| Minimum Sheet Width mm | 400*150 |
| Feed Stroke(X-Axis) mm | 0~1500 |
| Clamp Stroke(Y-Axis) mm | 0~300 |
| Lift Stroke(Z-Axis) mm | 0~300 |
Multiple Production Modes
The entire production line is highly flexible, which can reduce the press investment costs. It can solve the problems caused by multi-station stamping of deep-drawn parts by using a shuttle to connect two press machines, and it can also use various modes to improve the press uptime.
Top Suction Destacking
It adopts the top-suction destacking, which has a long overall lifespan, low operating noise, and a high degree of automation. Each suction cup can be independently controlled, and its position can be adjusted. It has a parameter memory function and is suitable for destacking sheets of various shapes.
Reduce Labor Costs
A production line can be staffed with just four people to complete a series of complex tasks, including production operations and product collection. This reduces difficulties such as labor shortages, low labor efficiency, and declining product prices year by year, giving it a competitive edge.
