Truss Destacker 3-Axis Transfer Stamping Line

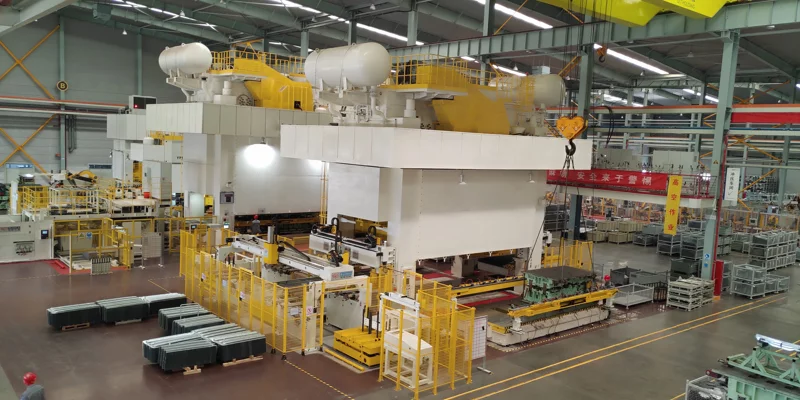

The Truss Destacker 3-Axis Transfer Stamping Line is an integrated metal stamping automation system that combines automatic destacking, intelligent transfer, and Automatic die change functions in one complete solution.
It is designed for high-efficiency mixed production of steel and aluminum materials, achieving fully automated coordination across all key processes — sheet destacking, loading, positioning, stamping, unloading, and stacking.
This automation significantly reduces manual handling and idle time between operations, enhancing production continuity and cycle rate.
Equipped with a dual-arm truss manipulator and 3-axis servo transfer system, the line enables automatic destacking, centering, conveying, and stacking for both rectangular and irregular sheets. The ADC one-touch die change system allows for mold replacement within 5 minutes, greatly improving production flexibility and uptime.
With its modular structure and digitally integrated control, the system not only reduces manual labor and safety risks but also achieves a stable production rate of 25 SPM, delivering an intelligent, efficient, and safe automation solution for the automotive, home appliance, and hardware stamping industries.
| Item | Truss Destacker 3-Axis Transfer Stamping Line |
|---|---|
| Press Capacity T | 1000T-3500T |
| Max Sheet Dimension mm | 1800*1200 |
| Min Sheet Dimension mm | 400*150 |
| Sheet Thickness mm | 0.5-3.2 |
| Applicable Material | Steel/Aluminum |
| Feeding Stroke(X-Axis) mm | 0-1500 |
| Clamping Stroke(Y-Axis) mm | 0-300 |
| Lifting Stroke(Z-Axis) mm | 0-300 |

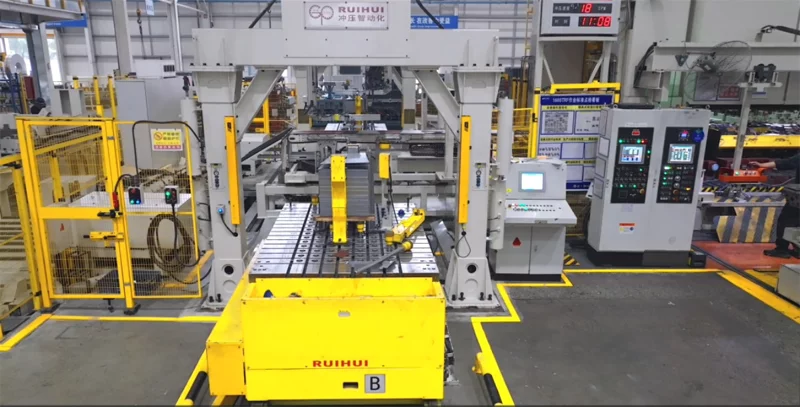

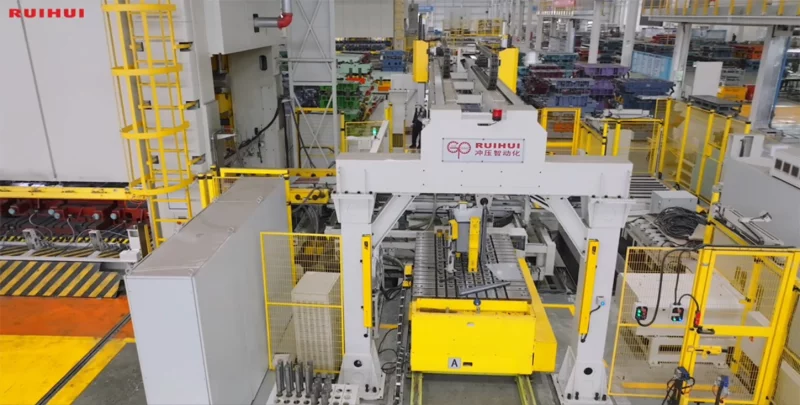

Dual-Arm Manipulator
Features high rigidity, excellent vibration resistance, and a high-speed cycle rate. Supports two interference curve modes (fast and slow), allowing smooth switching between them. With dual destacking arms operating alternately, the system easily achieves 25 SPM high-speed stable production. Fully integrated with the transfer mechanism, it ensures perfect synchronization across the entire line, meeting the dual requirements of efficiency and precision demanded by automotive stamping lines.

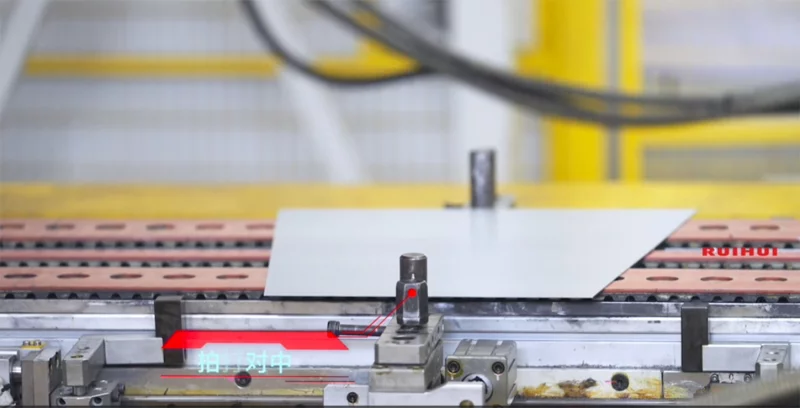

Intelligent Destacking System
Compatible with Rectangular and Irregular Sheets Challenge solved: Frequent product changeovers in multi-variety, small-batch production; low manual alignment efficiency. The innovative truss-type destacking structure combined with intelligent recognition algorithms enables efficient automatic destacking, pickup, and centering of sheets of different shapes and sizes. Supports Steel and Aluminum Mixed Production Challenge solved: Traditional lines cannot adapt to different metal characteristics, resulting in long changeover times. Supports mixed destacking and conveying of steel and aluminum sheets, meeting the multi-material stamping demands driven by the automotive industry’s lightweighting trend.
One-Touch Die Change System (ADC)
Challenge solved: Long die change times, excessive manual intervention, and limited production flexibility. The entire line is equipped with an ADC quick die change system, enabling one-touch switching from destacking to stamping. Die change is completed within 5 minutes, significantly enhancing productivity and flexibility.

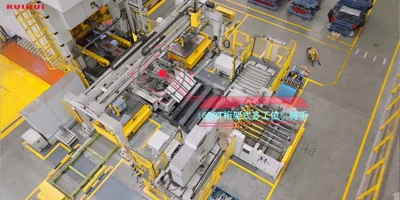

Modular Design + Digital Integration
Challenge solved: Complex equipment management, long downtime, and difficulty in achieving digital control. Automation parameter integration makes the system fully intelligent and autonomous. The modular line layout, combined with intelligent communication with the press, ensures simple operation, transparent production data, and easy maintenance, achieving stable and efficient production performance.
Safety Protection System
Challenge solved: Safety risks caused by manual handling and material loading. The entire line features dual safety door locks (request-type and cylindrical), while the conveyor belt is equipped with telescopic and height adjustment functions to ensure operator safety and stable production performance.
