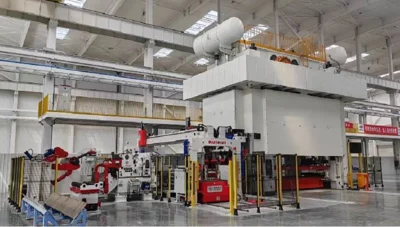

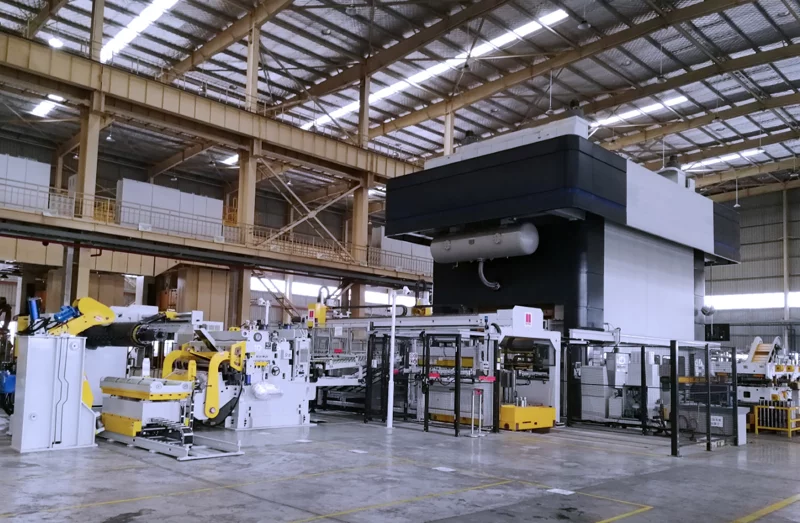

Compound 3-Axis Transfer Stamping Line
The compound 3-axis transfer stamping line is a powerful assistant for stamping automation. It realizes the fully automated production process from coils loading to finished product packing. It can move freely and flexibly in three-dimensional space and accurately grasp and transport materials. This stamping line can perform stamping on both coil materials and sheet materials. The equipment adopts a modular design, which is convenient for installation, commissioning, and later maintenance and upgrading. It can greatly improve production efficiency, reduce labor costs and labor intensity, and it can also reduce defective products and help enterprises develop efficiently.
| Item | Compound 3-Axis Transfer Stamping Line |
|---|---|
| Matching Press Tonnage t | 1000~3500 |
| Coil Width mm | 200~1600 |
| Coil Thickness mm | 0.6~6.0 |
| Line Speed m/min | 30 |
| Max Material Strength MPa | 980(Tensile Strength) |
| Shearing TAKT SPM | 25 |
| MAX Sheet Width mm | 1800*1200 |
| MIN Sheet Width mm | 400*150 |
| Sheet Thickness mm | 0.5~3.2 |
| Production Material | Steel/Aluminum |
| Feed Stroke(X-Axis) mm | 0~1500 |
| Clamp Stroke(Y-Axis) mm | 0~350 |
| Lift Stroke(Z-Axis) mm | 0~300 |

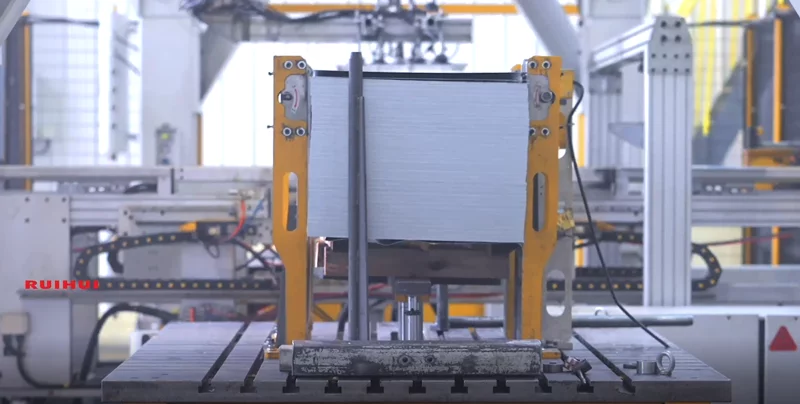

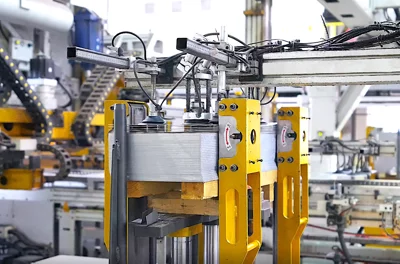

Loading trolley
The loading trolley efficiently loads stacks onto the production line, reducing manual labor and improving safety. The trolley consists of a positioning and separating mechanism, the trolley body, a lifting mechanism, and a control unit. The stack positioning rod and magnetic spreader are fixed to the trolley's top surface and move with the trolley. They are positioned using specialized tooling and raised to the unloading position by a lifting mechanism.

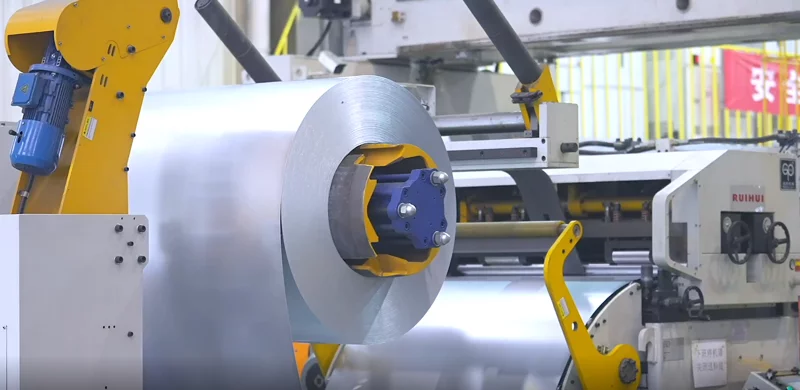

NC Straightener feeding
NC(numerical control) technology enables precise adjustment and real-time monitoring, thereby improving the overall efficiency and accuracy of the feeding process. RUIHUI offers different solutions to optimize material feeding, including short-line, long-line, and movable split-type.

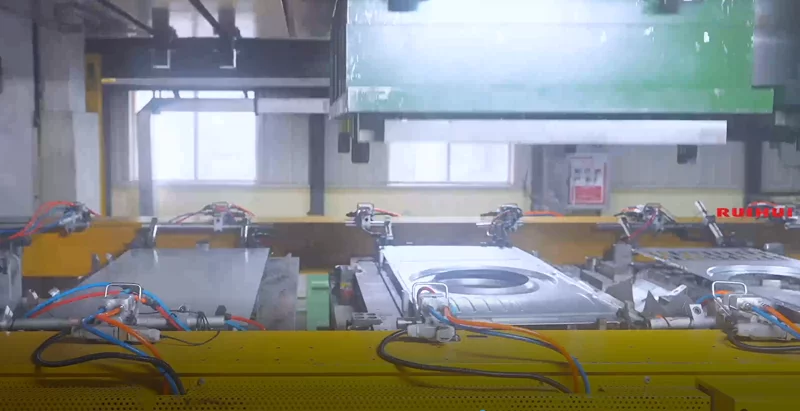

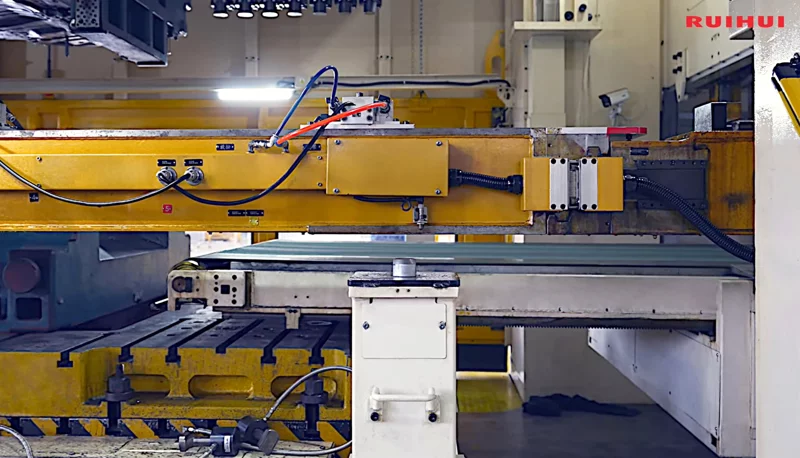

3-axis transfer
The robot consists of three axes, all of which are driven by rack and pinion transmissions, and Japanese linear guide rails ensure precision. This enables high-rigidity, low-friction linear motion, ensuring positioning accuracy and repeatability at high speeds and heavy loads.

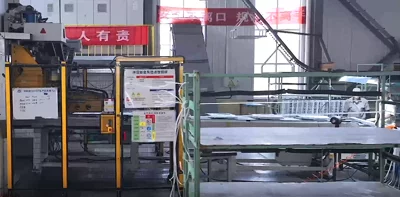

Tail of line conveying
The end-of-line conveyor delivers the products to manual packing. Automatic telescoping at the front section reduces the number of empty mold stations, and automatic height adjustment matches the mold feed height, preventing material jams, collisions, or poor feeding caused by height deviations. This improves the operational stability of the entire line and the flexibility of mold adaptation.
