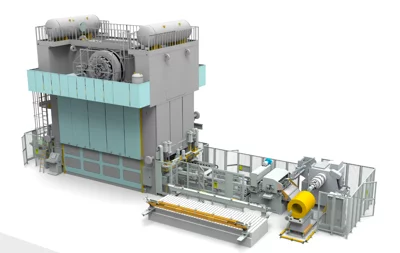

Fully Automatic 3-Axis Transfer Stamping Line

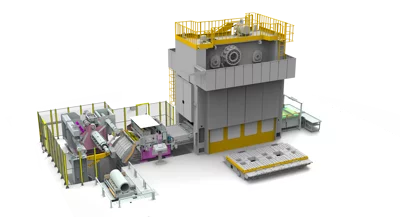

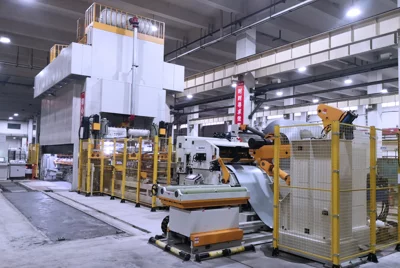

This fully automatic multi-station robotic press line, also known as a coil-to-coil shearing multi-station robotic press line, integrates multiple functional modules, including uncoiling, leveling and feeding, oiling, shearing, stamping, and output. Its modular design allows for easy operation and maintenance, effectively improving production efficiency and product consistency. It is also equipped with intelligent control and safety systems to ensure stability and safety during the production process. The robotic arm utilizes multiple servo motors to drive three axes in a coordinated manner, operating according to set parameters and curves. The stroke can be freely configured, enabling precise, safe, and efficient handling.
| Item | Fully Automatic 3-Axis Transfer Stamping Line |
|---|---|
| Matching Press Tonnage t | 1000~3500 |
| Coil Width mm | 200~1300 |
| Coil Thickness mm | 0.6~6.0 |
| Line Speed m/min | 16 |
| Max Material Strength MPa | 490 |
| Shearing TAKT SPM | 25 |
| Feeding Stroke(X-Axis) mm | 0~1200 |
| Clamping Stroke(Y-Axis) mm | 0~350 |
| Lifting Stroke(Z-Axis) mm | 0~300 |

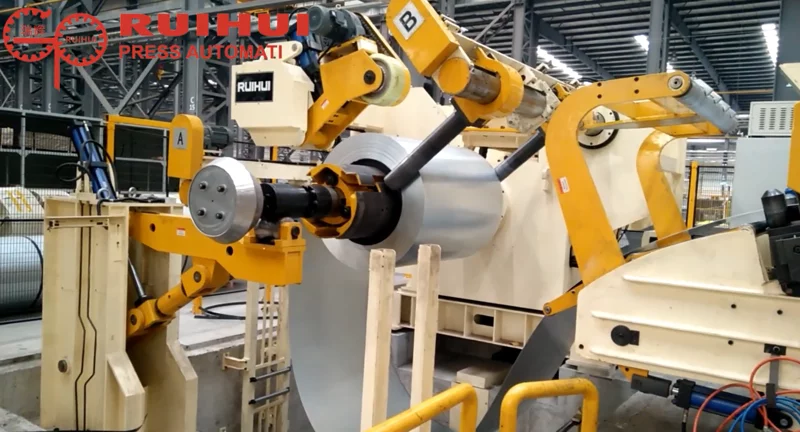

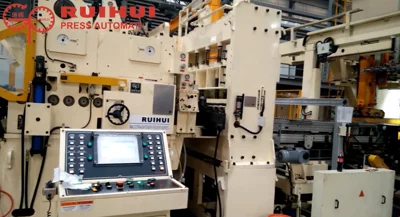

NC Straightener Feeder
It uses a high-performance NC straightener feeder that can handle coils with a width of 200~1300 mm and a maximum thickness of 6.0 mm, and can handle most conventional coils.

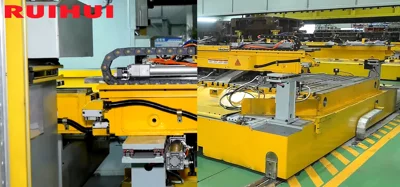

Intelligent 3-axis Transfer System
The 3-axis transfer moves along a preset curve, and the travel of each axis can be freely set. The crossbar can be automatically disassembled and assembled, and a fault alarm is triggered, displaying the alarm information on the touch screen.

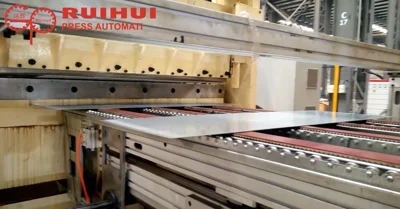

Multiple Production Modes
After the NC straightener feeder completes the straightening of the strip, two production modes can be selected: 1. Shearing blanking, 3-axis transfer stamping of sheets. 2. Progressive die stamping of strip.
