Introduction to Complete Slitting Production Line

In metal processing, coil width, inner diameter, and outer diameter are always important parameters to understand, as they influence the selection of processing equipment. With the development of technology, people are increasingly demanding higher processing efficiency and product quality. This article will explore the components and main features of complete slitting production lines.

What is Complete Slitting Production Line

A complete slitting production line is used to cut a single wide coil of material into multiple coils of the same width, which are then rewound. Processable materials include aluminum, copper, brass, stainless steel, and carbon steel. This production line achieves fully automated control from uncoiling to rewinding, featuring precise material positioning, stress relief, rapid blade changing with a dual-blade unit, and quick coil changing. The compact design and automation significantly reduce the need for manual intervention.

Components

1. Decoiling and Leveling Machine

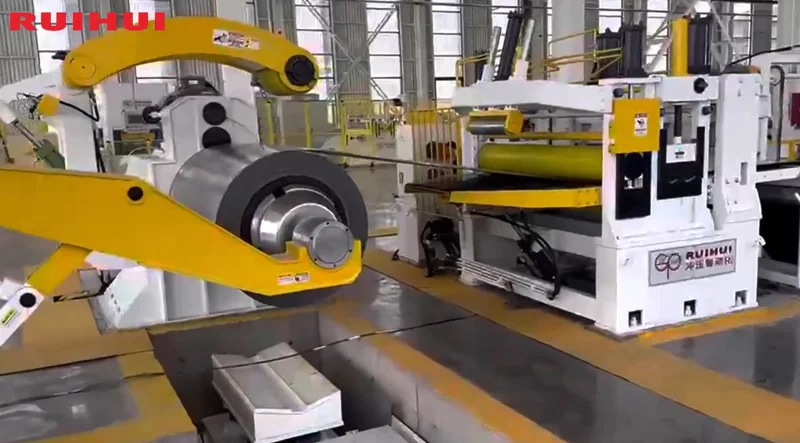

Decoiling and leveling machines decoil and level the coil to be processed, eliminating a small portion of the stress, which is beneficial for subsequent cutting. Sometimes, a feeder can be used to help control the feeding speed and accuracy. If there are no high requirements, you can choose not to add a feeder.

2. Slitting Device

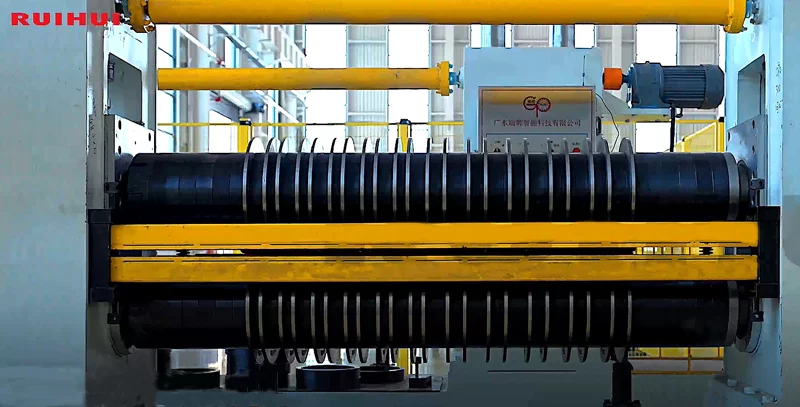

The slitting device consists of rollers with multiple blades, generally referred to as cutter shafts. The slitting device is mainly composed of upper and lower cutter shafts, and the gap between the upper and lower cutter shafts will affect the product quality.

3. Tension Device

Applying tension to the material allows for more stable processing. Providing tension during feeding facilitates cutting. Applying tension to the sheared material allows for adjustment of the material spacing, facilitating material collection.

4. Waste Collection Machine

The sides of the rolled material often have rough edges, which are cut off during the slitting process to ensure quality.

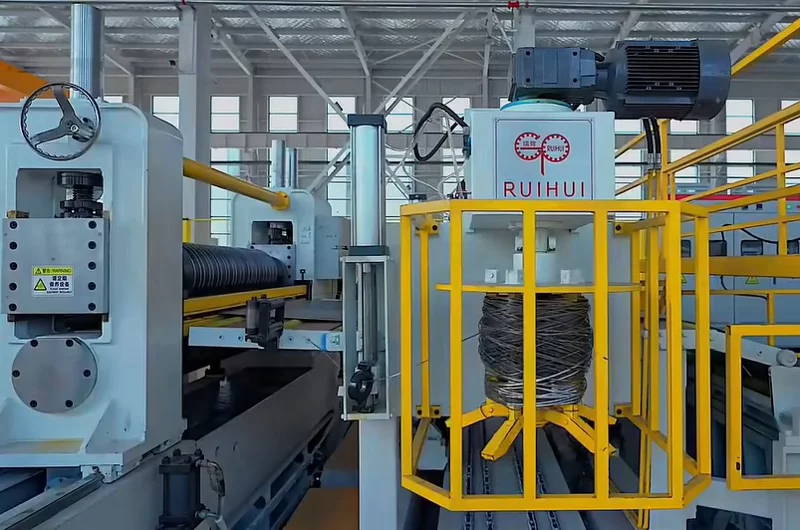

The waste rewinder is responsible for collecting and winding up these rough edges.

5. Winding Machine

The cut strips of material are wound up and collected by the winding machine, making it easy to unwind and flatten them for the next processing.

Main Features

1. High Flexibility

The blade mechanism of the slitting device can be quickly adjusted to cut rolls of material into different widths, meeting the production needs of various specifications.

2. High Efficiency

The slitting production line not only boasts high production speed but also achieves automation, making the operation more convenient.

3. High Quality

When the wide coil is slit, the material at both edges is trimmed away, producing narrow coils with clean, high-quality edges that generally do not require further processing.

In summary, complete slitting lines are designed to produce multiple high-quality narrow coils. While rolls of different widths can be customized, the cost and convenience are not as high as using a slitting line. If you are interested in complete slitting lines or have any questions, you can contact us. Thank you for reading.
