Hot Stamping Line Complete Automation Solution for Hot Stamping of High-Strength Steel

The balance between automotive lightweighting and safety has always been a key focus for automakers. To achieve lightweighting, you need to reduce thickness and use high-strength materials—but while high-strength steel offers superior strength, it is extremely difficult to form at room temperature; forcing it causes cracking and springback. Hot stamping technology was developed precisely to address this challenge: heat the high-strength steel sheet to around 900°C to soften it, stamp it while hot, and then rapidly cool and quench it within the die. The resulting parts are both strong and lightweight. This process is highly effective, but it presents an unavoidable production issue—handling parts at such extreme temperatures is impossible for humans, so a hot stamping line must be fully automated.

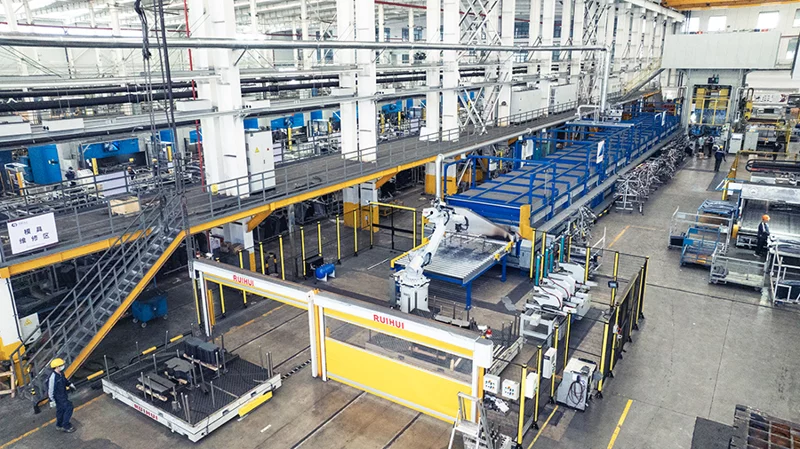

The entire hot stamping process flows as follows: the blank is first fed into a heating furnace, where it is heated to the austenitizing temperature—around 800–900°C. Within a very short time, it is transferred to the press. A loading/unloading robot retrieves the red-hot blank from the furnace outlet and places it into the die, where it is stamped and quenched under pressure. Finally, the robot removes the formed part and delivers it to the next station. From blank entry to finished part exit, the entire process involves no human intervention—everything is handled by automated equipment.

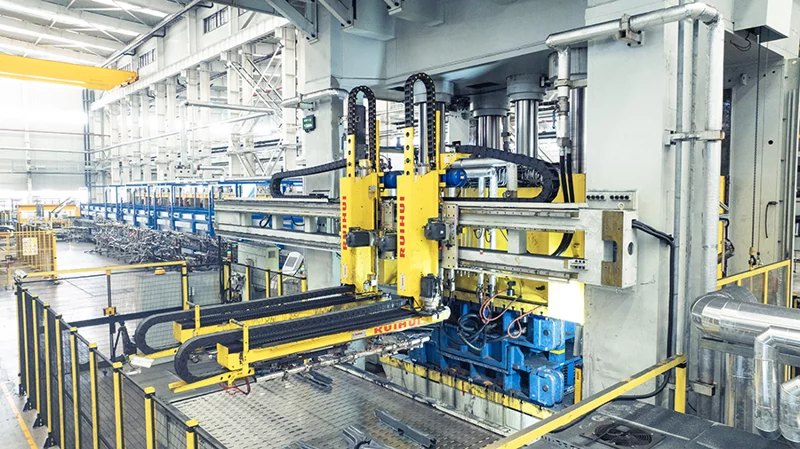

Within the complete solution, the loading and unloading steps are the most demanding on equipment. The hot blank reaches 800–900°C, and the end effector must come into direct contact with it. How is this achieved? Through the high-temperature resistance of the end-effector materials. In hot stamping, the end effectors are almost exclusively grippers made from high-temperature alloy materials that can withstand prolonged exposure to intense heat without deforming or failing. Why not suction cups? Because suction cups rely on vacuum; rubber or plastic cups cannot endure 800–900°C—they would melt on contact. Therefore, for hot stamping loading and unloading, grippers are essential, especially during loading, when the red-hot blank is gripped directly from the furnace outlet—only high-temperature-resistant grippers can handle this task.

Beyond end-effector heat resistance, hot stamping robots must also maintain precise positioning and high speed under high-temperature conditions. The blank cools rapidly after leaving the furnace and must be placed into the die within a specified time; if it is too slow, the temperature will drop too low for proper quenching. Therefore, the robot's transfer speed must be fast and its movements crisp. Additionally, since the robot operates continuously near high-temperature zones, its drive and control systems must be equipped with thermal insulation and heat dissipation designs to ensure stable long-term operation.

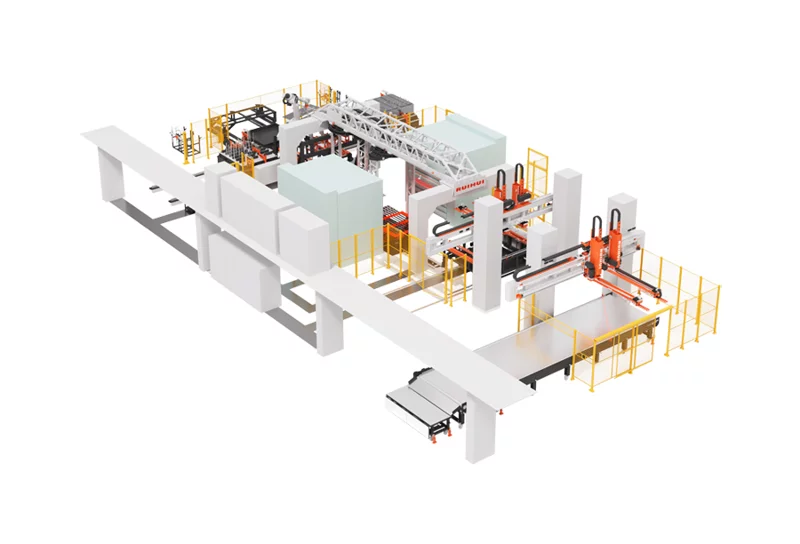

A complete hot stamping line solution includes not only the press loading/unloading in the middle but also fully integrated front-end and back-end equipment. At the front end, the blank feeding system must precisely coordinate with the heating furnace—how blanks are fed into the furnace one by one, and how the heated blank is handed off to the robot at the furnace outlet—all requiring exact synchronization. At the back end, the formed parts must be removed, cooled, collected, and conveyed to subsequent processes through dedicated solutions. The smooth integration of all these stages directly affects the overall line cycle time and stability.

The control of the entire line is also highly sophisticated. The heating furnace, press, loading/unloading robots, and front/back conveyors—all these devices must work together as seamlessly as a single machine, coordinated by a centralized line control system. Parameters such as furnace discharge timing, robot pick-up timing, press stroke timing, and quenching hold time must all be precisely set and finely adjusted during production. A mature hot stamping line solution is not simply a collection of equipment; it requires a well-structured sequence logic that integrates the entire process.

Guangdong RuiHui Intelligent Technology Co., Ltd. has over twenty years of experience in stamping automation. It is a national "Specialized and Sophisticated" "Little Giant" enterprise, headquartered in Dongguan, with more than 400 employees and over 80 R&D staff. RuiHui has specialized technical expertise in hot stamping automation. For the high-temperature conditions of high-strength steel hot stamping, they have developed high-temperature-resistant loading/unloading robots with end effectors featuring high-temperature alloy grippers. Combined with heating furnaces, presses, and front/back-end conveying equipment, RuiHui provides complete hot stamping line solutions. They have supplied hot stamping automation lines to numerous automotive parts manufacturers, with nearly 5,000 sets of equipment operating at customer sites both domestically and internationally. Their equipment has served well-known OEMs and first-tier suppliers including BYD, Geely, Volkswagen, Tesla, BMW, Mercedes-Benz, Honda, and Land Rover Jaguar, giving them extensive experience in the hot stamping field.

Hot stamping of high-strength steel is a task that humans simply cannot perform—it must be automated. The complete hot stamping line solution, with its high-temperature-resistant automation equipment, reliably handles the extreme loading/unloading conditions, enabling the production of high-strength steel parts that meet both strength and lightweighting requirements while running stably and efficiently at high volume.
