How Does a Multi-Press Tandem Stamping Line Improve Production Cycle Time and Efficiency

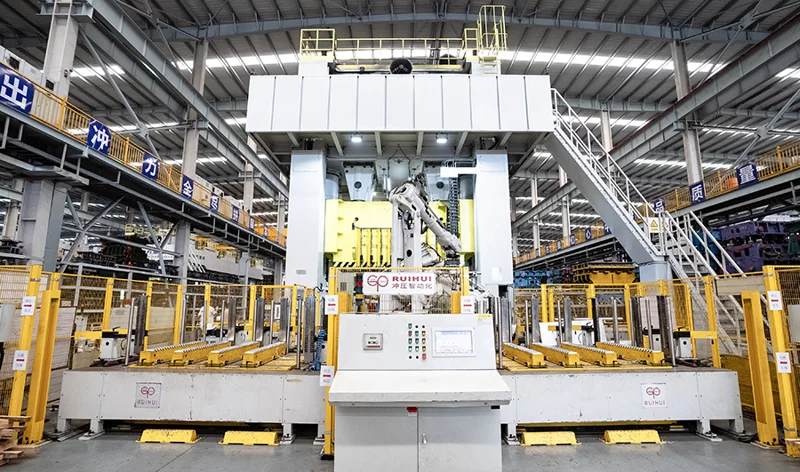

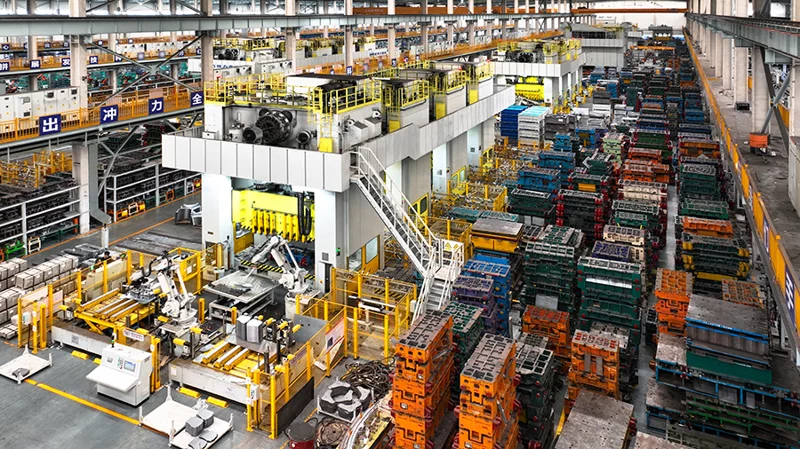

A multi-press tandem stamping line, as the name suggests, consists of multiple presses arranged in series, with workpieces transferred between them by robots or manipulators. This configuration has become increasingly common in high-volume manufacturing in recent years, particularly for large sheet metal parts in the automotive and home appliance industries. What are its actual advantages? Is it worth the investment? Let's examine it from several perspectives.

Cycle time improvement is a standout advantage of tandem lines. While a single-press multi-station line centralizes processes, its overall cycle time is capped by the stroke rate of a single press. A multi-press tandem line, however, is different—each press handles one dedicated工序 (operation), and processes run in parallel, allowing the entire line's cycle time to be significantly increased. This is especially true for tandem lines using high-speed link-type transfer robots, which can meet the cycle time demands of high-speed mass production. For large-volume, single-variety orders, the throughput advantage of this type of line is remarkably prominent. Industry feedback indicates that multi-press tandem solutions deliver significant production capacity gains in high-volume scenarios, and because robotic feeding offers higher positional accuracy than manual placement, product quality consistency is also improved.

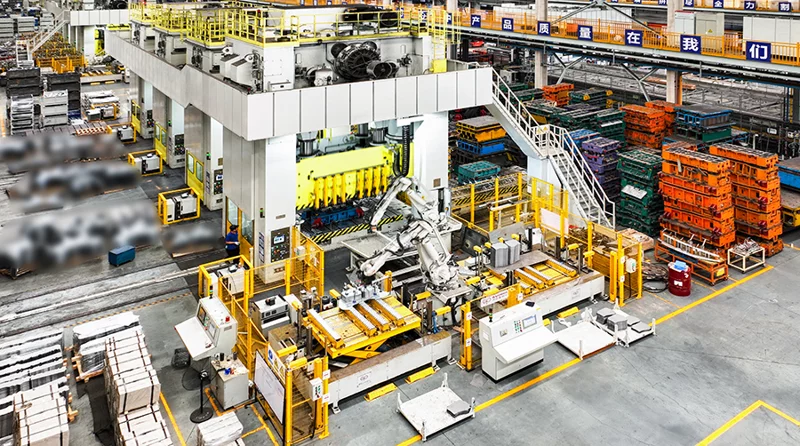

Material flow efficiency is markedly enhanced. Traditional processes rely on manual transport between operations, which is slow and error-prone. With a tandem line, once a workpiece exits the first press, the robot immediately transfers it to the second press, with virtually no waiting time in between. The entire line is coordinated by a central control system that synchronizes the timing of all equipment—when each press closes its die and when the robot picks up the part—all automatically matched, with essentially no idle waiting between machines. This level of协同 efficiency (coordinated efficiency) is unattainable with manual handling. Some lines are also equipped with material buffer mechanisms, so that even if one press experiences a brief fault, downstream equipment can continue running for a period, avoiding a complete line stoppage and associated losses.

However, there is a prerequisite: the products need to be relatively stable. Changeovers on a multi-press tandem line are more complex than on a single-press multi-station line, because every press must be adjusted and the robot trajectories must be reprogrammed. If the line requires frequent product changeovers, the economic viability of this solution diminishes. Therefore, it is better suited for production lines with a relatively fixed product family, large batch sizes, and large part dimensions—such as automotive body panels, home appliance shells, and the like. In addition, the initial investment for a multi-press tandem line is higher than that for a single-press multi-station line, and it also requires more floor space. This is easier to accommodate when planning a new plant, but for retrofitting existing lines, careful assessment of available workshop space is necessary.

Guangdong RuiHui Intelligent Technology Co., Ltd. has over two decades of experience in stamping automation and was an early player in the multi-press tandem line segment. Their multi-press link-type transfer press lines have mature applications in both the automotive parts and home appliance industries. These tandem lines complement RuiHui's 3-axis transfer multi-station lines—one suited for high-speed mass production, the other for flexible multi-variety manufacturing.
