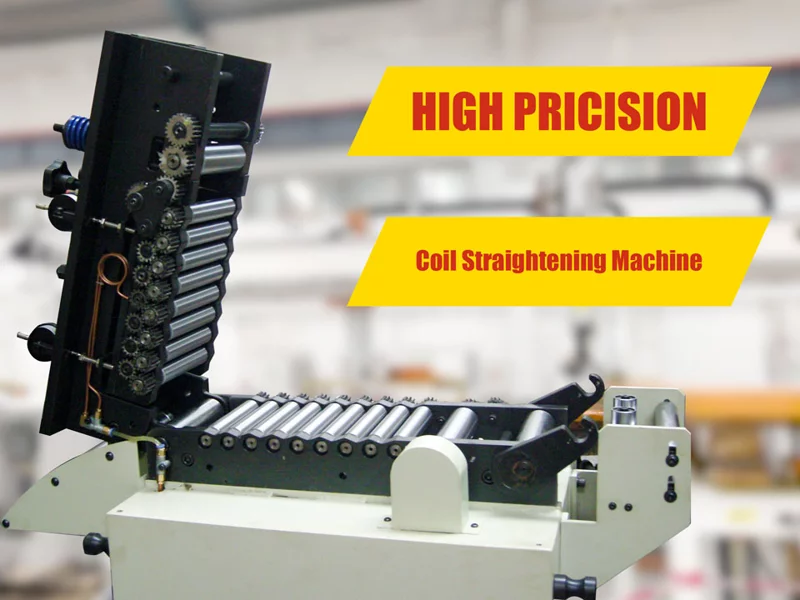

How to Choose a Suitable Coil Straightening Machine

Choosing a suitable straightening machine is crucial to improving the quality and production efficiency of sheet metal processing. The quality of coil processing will affect the subsequent processing and ultimately the quality of the finished product. Hope this article will be helpful to you.

1. The basic information of the coil

Before choosing a coil straightener, you should fully understand your materials. These can be mainly divided into: material type, thickness and width.

1.1. Material type

Generally, coil materials are steel, aluminum, copper, and so on. Some straightening machines are designed specifically for these materials. Therefore, if you want to ensure the leveling effect, it is a very wise choice to choose a leveler that is targeted at these materials.

1.2. Thickness range

Usually, the thickness of the coil is related to the straightening force of the straightener. Thicker coils require a higher straightening force to ensure effective leveling. Thinner coils require less straightening force to avoid deformation caused by excessive force. The force of the straightener should cover the minimum and maximum thickness.

1.3. Coil width

The coil width is also a point that needs attention. The maximum width of the coil determines the length of the rollers of the leveler. On the other hand, the wider the coil, the more rollers the leveler needs, but more is not always better.

2. Straightening machine performance selection

Pay attention to the key parameters of the straightening machine. This can help you have a better understanding of the coil straightener, and make a better choice. Next, we will talk about the main structure of the straightening machine.

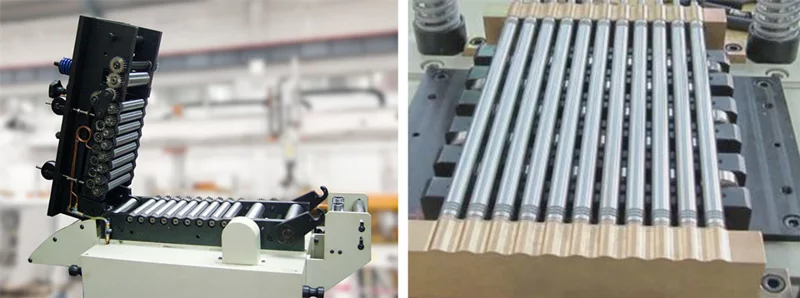

2.1. Straightening roller

The straightening rollers have different arrangements, resulting in different effects. Arrangement methods can be categorized as staggered, parallel, and progressive.

The progressive method offers the highest leveling accuracy, primarily suited for thin materials ranging from 0.1 to 1.0 mm. The parallel method offers the lowest leveling accuracy, primarily suited for thick materials ranging from 2.0 to 6.0 mm. The staggered method is relatively balanced, primarily suited for materials ranging from 0.1 to 3.0 mm, while still ensuring a certain level of accuracy.

2.2. Drive device

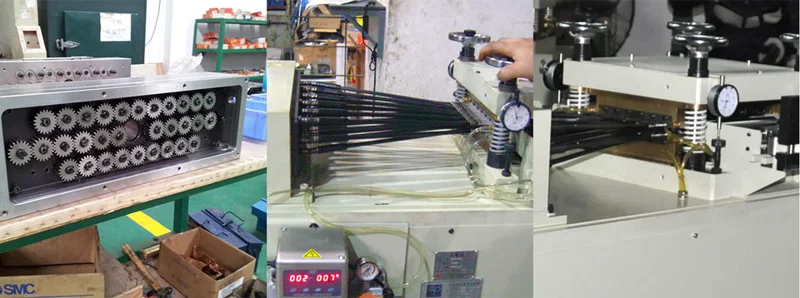

During the leveling process, the rollers not only bend the material but also drive it forward. The drive mechanism's job is to synchronize the rotation of the upper and lower rollers, providing sufficient traction and maintaining a steady and uniform speed during the leveling process.

Gear drive is a common design, each roller is meshed with each other through a precision gear set, with excellent synchronization and high torque. However, it requires regular oiling and maintenance.The power supply is generally 3Phase 220V/380V/50HZ.

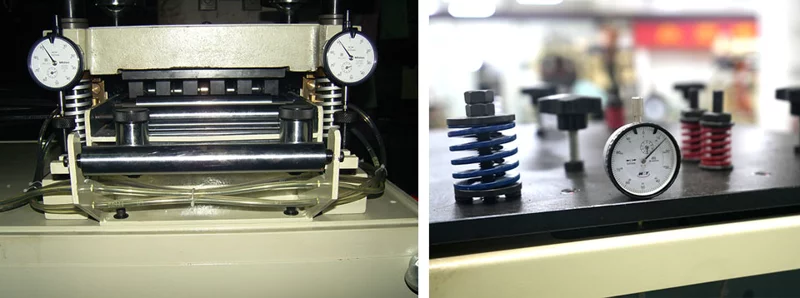

2.3. Adjustment device

The adjustment device mainly adjusts the upper and lower spacing of the rollers to adapt to different coils and achieve the ideal leveling effect. It can be divided into two adjustment modes: manual and electric.

3. After-sales service guarantee

After completing the purchase of the product, it does not mean that the matter is completely over. After-sales service is also a point that needs attention. A good product should not only have good quality, but also have comprehensive and reliable after-sales service.

RUIHUI has many years of experience and offers a wide range of straightening machines. We not only ensure product reliability, but also provide comprehensive after-sales service to reassure our customers.

Our straightening machines mainly include: RLF, RLV, RLV-F, SFS, SNL. If you are interested, you can visit our details page. You can also contact us, we are looking forward to it.
