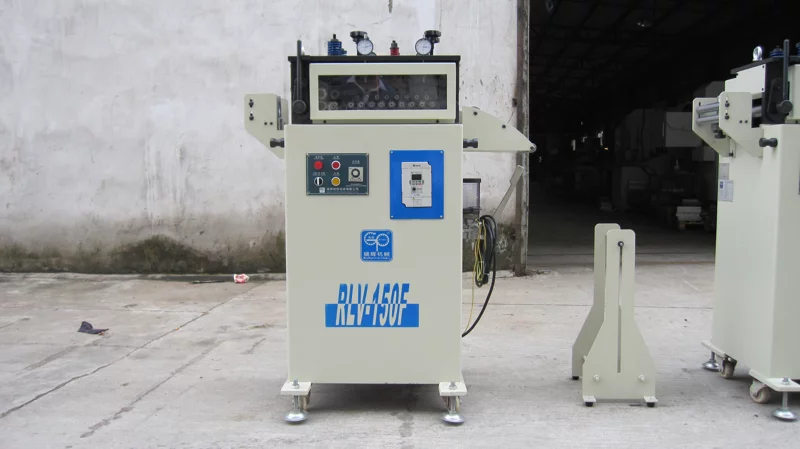

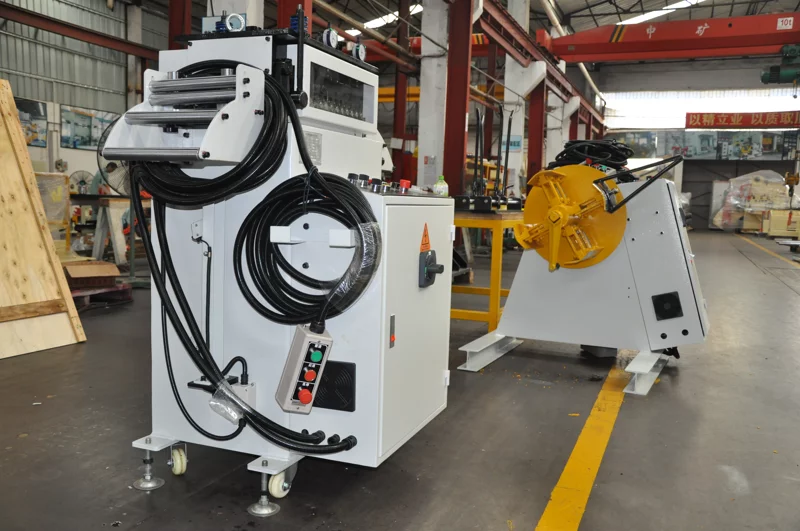

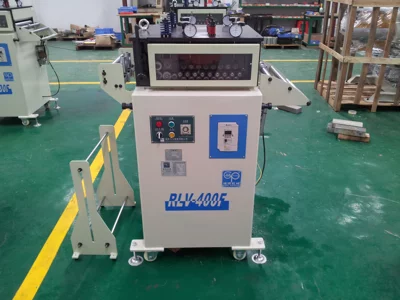

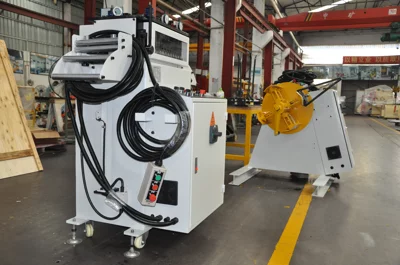

RLV-F Straightener
Basic Attributes
- Model RLV-F
- Coil Width 150~600 mm
- Coil Thickness 0.1~1.5 mm
- Feeding Speed 16 m/min
Popular Models
-
RLV-150F
-
RLV-200F
-

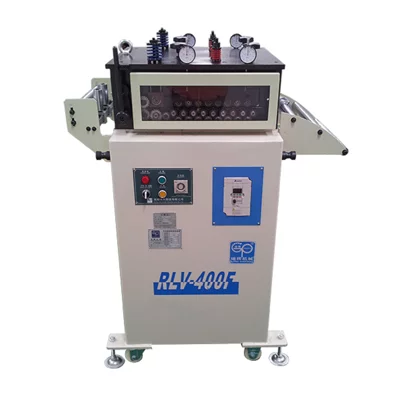

RLV-400F
Models List
-
RLV-300F
-
RLV-500F
-
RLV-600F

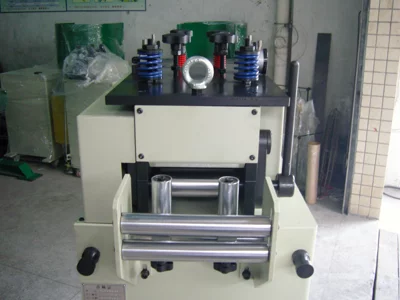

The RLV-F model is a modified type leveling machine. The machine adopts the upper 8 and lowers 9 mechanisms. The diameter of the leveling wheel is Ф30mm, which is suitable for the straightening of thin plates with a thickness of 0.1~1.5mm. The minimum material width can be 150mm, and the maximum can be 500mm. The upper and lower rollers are driven fully synchronously, with variable frequency speed regulation and stable operation. Special models can be produced according to customer requirements. The upper work roll can be opened for cleaning, which is suitable for aluminum materials. Very favorable conditions for precision straightening of thin sheets. The leveling amount adjustment method of this model has handled adjustment, the leveling amount precision is 0.01mm, and the dial indicator shows.
| Item | RLV-150F | RLV-200F | RLV-300F | RLV-400F |
|---|---|---|---|---|
| Coil Width mm | 150 | 200 | 300 | 400 |
| Material Thickness mm | 0.1~1.5 | 0.1~1.5 | 0.1~1.5 | 0.1~1.5 |
| Feeding Speed m/min | 6~22 | 6~22 | 6~22 | 6~22 |
| Motor | 1 | 1 | 1 | 1 |
| Work Rolls | Upper8/Lower9 | Upper8/Lower9 | Upper8/Lower9 | Upper8/Lower9 |
| Pinch Rolls | Upper1/Lower1 | Upper1/Lower1 | Upper1/Lower1 | Upper1/Lower1 |
| Back Up Rolls | N/A | N/A | N/A | Porovided |
| Loop Control | Touch Sensor | Touch Sensor | Touch Sensor | Touch Sensor |
| Work Roll Opening | Manual Operation | Manual Operation | Manual Operation | Manual Operation |
| Power | 3Phase 220V/380V/50HZ | 3Phase 220V/380V/50HZ | 3Phase 220V/380V/50HZ | 3Phase 220V/380V/50HZ |
| Item | RLV-500F | RLV-600F |
|---|---|---|
| Coil Width mm | 500 | 600 |
| Material Thickness mm | 0.1~1.3 | 0.1~1.2 |
| Feeding Speed m/min | 6~22 | 6~22 |
| Motor | 1 | 1 |
| Work Rolls | Upper8/Lower9 | Upper8/Lower9 |
| Pinch Rolls | Upper1/Lower1 | Upper1/Lower1 |
| Back Up Rolls | Porovided | Porovided |
| Loop Control | Touch Sensor | Touch Sensor |
| Work Roll Opening | Manual Operation | Manual Operation |
| Power | 3Phase 220V/380V/50HZ | 3Phase 220V/380V/50HZ |

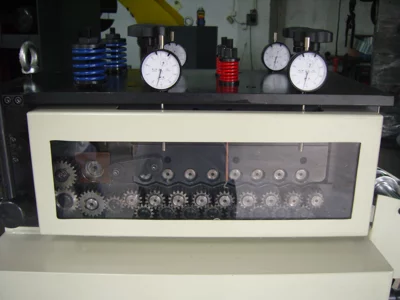

RLV-F Gear Drive

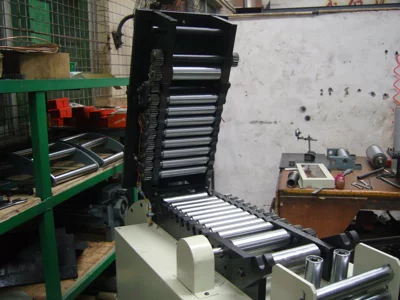

RLV-F Leveling Roller
