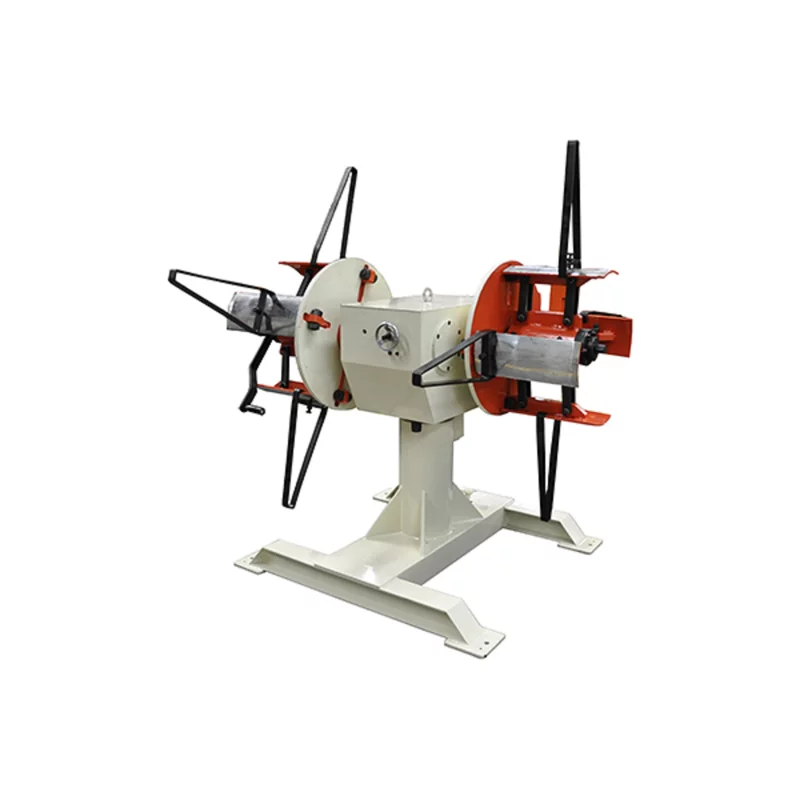

MDW Non-powered Double-headed Decoiler

We design and produce a double-head decoiler with a double uncoiling device. Ruihui automation machinery designed for efficient processing production customers to produce a dual-station uncoiler, which has two roll barrels carrying material rolls, in a roll barrel loading, the other material roll barrel can carry out the loading process of the material rolls, in the quality and reliability of a rolling barrel after use, a simple rotation can complete the process of changing material, simple, fast, stable, production line completely without downtime, greatly improving the processing line whole line The efficiency of the whole line is greatly improved.

1. The double-head material rack saves material change time and improves production efficiency.

2. The double-head material rack can be used in conjunction with a material straightening machine.

3. The rack has a conical base at the bottom, with a thicker bottom and a thinner top, effectively lowering the rack's center of gravity.

4. The torque on the base and rotating seat is very low, ensuring high overall structural stability and fundamentally ensuring the service life of the material.

5. For narrow materials, a left-right shiftable model can be customized (special equipment).

6. The double-head material rack is suitable for use with high-speed punching machines, such as for stamping stators, rotors, EI sheets, and other products.

7. The material rack can be equipped with a motor and electronic control to become a powered rack.

8. This machine uses a non-powered structure, with unwinding power provided by the pull of the subsequent machine. A brake handwheel is attached to the top to adjust the tension of the spindle to prevent loosening of the material during unwinding.
