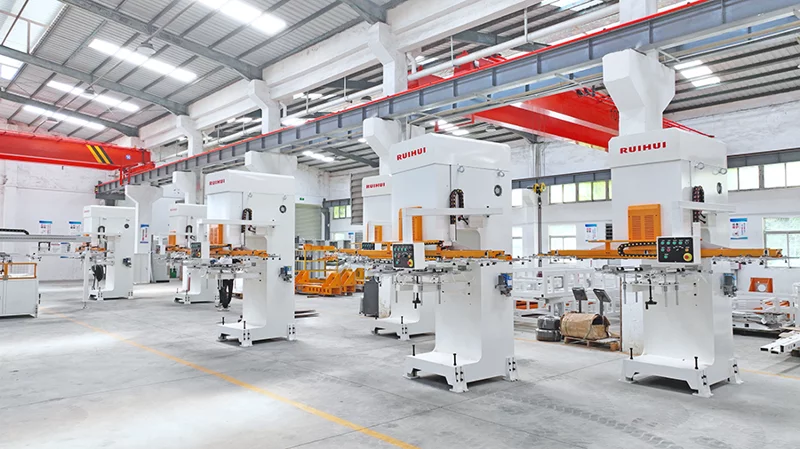

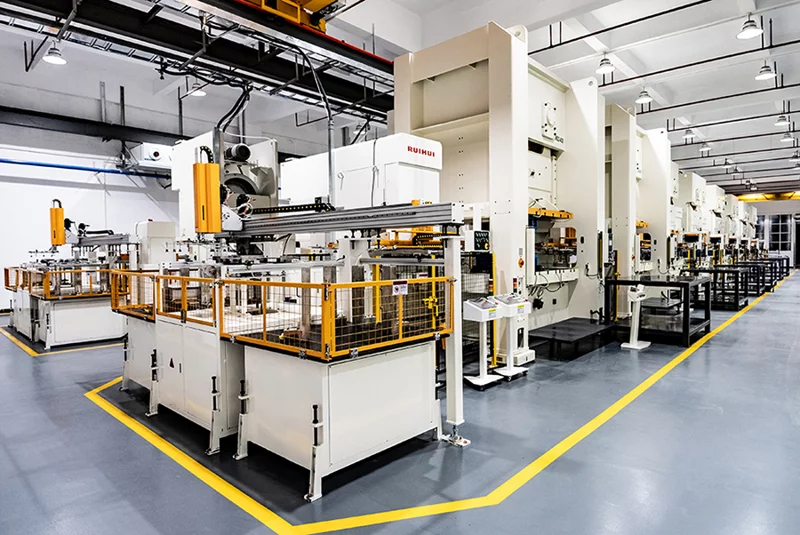

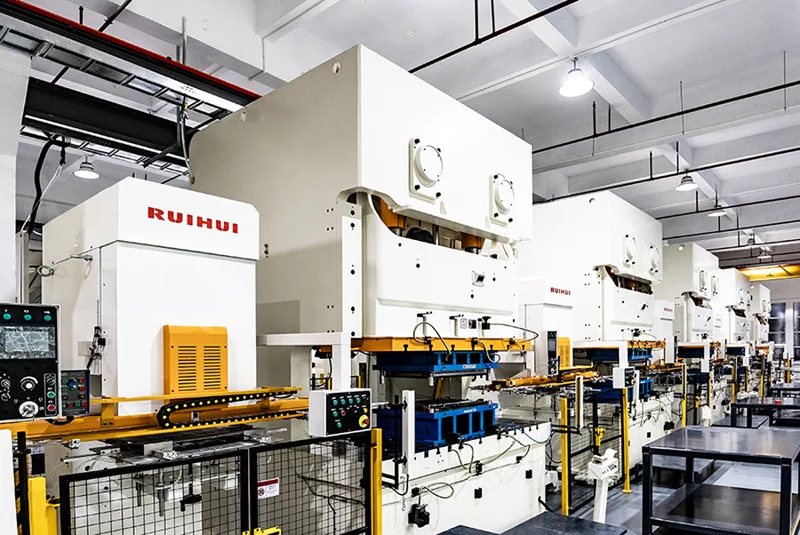

Multi-Press Tandem Linear Transfer Robot Automation Solution

For a multi-press tandem stamping line to run smoothly, it is not enough to simply connect several presses and robots together. The cycle timing of each press, the motion sequence of the robots, and the material flow between the front and back ends all require unified planning. The core of the automation solution for a linear transfer robot tandem line is to integrate all these elements so that the entire line operates as a cohesive, coordinated whole.

The level of automation in a multi-press tandem line is reflected at several levels. First is the automation of individual machines—each press runs automatically, and the robots handle transfer automatically. Press loading, stamping, and unloading are all completed by the control system without manual intervention. Second is the coordinated automation between machines—when the press closes, when the robot picks and places parts—all coordinated by a central control system, with no manual intervention needed between machines. The central control system acts like an orchestra conductor, ensuring each machine performs the right action at the right time. Third is the automation of the entire material flow—the front-end feeder supplies material automatically, the robots transfer parts in the middle, and the back-end stacker collects finished parts automatically. From beginning to end, the material never needs to be touched by human hands.

The linear transfer robot plays the role of a "bridge" in the tandem line. It moves workpieces from the previous press to the next, requiring precise placement and synchronized timing. When selecting the robot, the payload capacity must cover the workpiece weight plus the end-of-arm tooling weight, with an additional margin; the reach must span the distance between the dies of adjacent presses; and the operating speed must match the press cycle. If these parameters are not properly calculated, the entire line will not run smoothly. If the payload is too small, the robot may vibrate at high speeds, affecting positioning accuracy. If the reach is too short, the robot cannot access the die. If the speed is too slow, the press waits for the robot, reducing the line's overall cycle rate.

The control system of the tandem line is another critical factor. A good control system coordinates the timing of all machines and includes fault diagnostics and alarm functions. When an issue occurs, it can be quickly pinpointed without having to stop the entire line and check each machine one by one. The fault diagnosis system continuously monitors the operating status of all machines; if an abnormality is detected, it triggers an alarm and displays the fault location, allowing maintenance personnel to go directly to the problematic machine and resolve it quickly. For lines that require frequent changeovers, the control system should also be able to store multiple product parameter sets, enabling one-touch recall during changeovers to reduce repetitive setup time.

Material buffering is another important but often overlooked aspect of tandem line automation solutions. The front-end feeder, the middle stamping section, and the back-end stacker will never have perfectly identical cycle times—buffers between them help absorb these differences. If one machine experiences a brief fault, material in the buffer allows the upstream and downstream machines to continue running for a short time, preventing an immediate full-line shutdown.

When planning a multi-press tandem linear transfer robot line, Guangdong RuiHui Intelligent Technology Co., Ltd. takes a holistic approach—considering press layout, robot selection, control system configuration, and material flow all together. RuiHui does not simply provide isolated machines; they deliver a complete, coordinated automation line solution. Customers only need to provide product drawings and output requirements, and RuiHui can develop a full line plan and equipment configuration.
