Positioning Accuracy of Transfer Manipulators How to Guarantee Consistent Part‑Placing Performance

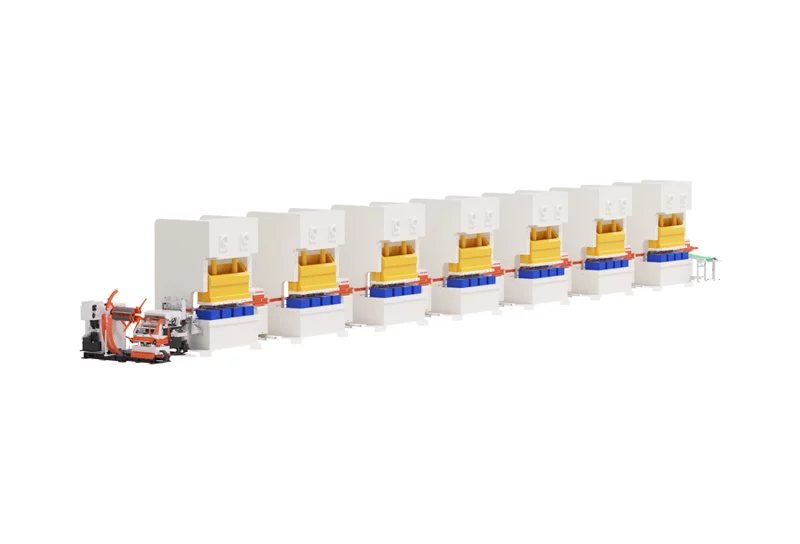

On tandem stamping lines, the consistency of workpiece placement by transfer manipulators directly governs dimensional stability of stamped parts. Mis‑placed workpieces cause dimensional fluctuation and even die collision in severe cases. Positioning accuracy and placement repeatability of transfer manipulators are critical for stable line operation, which are guaranteed from the following aspects.

First, mechanical‑structure rigidity serves as the primary safeguard. During high‑speed traverse and lifting, the manipulator structure bears inertial and shear forces. Insufficient rigidity leads to deformation and vibration, resulting in positional deviation upon arrival. High‑quality transfer manipulators adopt high‑rigidity cast or welded frames, with precision‑machined mounting surfaces for guide rails and transmission components to secure structural stability under high‑speed operation and consistent actual arrival positions for every cycle.

Second, servo drive plus encoder feedback provides the second‑level guarantee. Traverse and lifting motions are driven by servo motors. Servo response and encoder resolution determine positioning performance. High‑resolution encoders detect real‑time positions, while servo drives adjust motor output dynamically for precise positioning. Premium servo systems achieve repeat positioning accuracy within ±0.1 mm, satisfying placement‑consistency requirements for medium‑and‑large sheet‑metal parts.

Third, guide‑rail accuracy and installation precision act as the third safeguard. Guide rails are the motion reference of manipulators. Straightness, parallelism and installation accuracy of rails exert direct impact on positioning performance. Mis‑aligned rails cause motion stalling and positional errors. Guide‑rail accuracy grade shall match positioning requirements, and precision instruments are adopted during installation to calibrate straightness and parallelism within allowable tolerances.

Fourth, gripper repeat positioning constitutes the fourth safeguard. Grippers make direct contact with workpieces, so consistent gripping posture affects final placement accuracy. Gripping surfaces shall be precision‑machined to maintain invariant relative positions between workpieces and grippers. Hook‑type grippers insert into workpiece holes for repeatable hooking positions; jaw‑type plate grippers adopt parallel clamping surfaces to prevent workpiece offset during clamping.

Fifth, control‑system compensation functions deliver the fifth safeguard. Advanced control systems record positional deviations in each cycle and automatically correct target positions for subsequent cycles via compensation algorithms. For instance, if the workpiece is consistently offset 0.05 mm to the left during placement at one press, the system will shift the target position 0.05 mm to the right in the next cycle. Such closed‑loop compensation effectively improves placement repeatability.

Environmental temperature variations shall not be overlooked. Thermal expansion and contraction of mechanical components caused by workshop temperature fluctuation may degrade positioning accuracy. Premium transfer manipulators implement temperature compensation for key components, or the control system adjusts positional parameters automatically according to ambient temperature. Regular cleaning and lubrication mitigate accuracy loss caused by dust and oil contamination on guide rails and transmission units.

Replacing manual workpiece transfer between presses on tandem stamping lines, transfer manipulators deliver far superior placement repeatability controlled precisely by servo systems, compared with manual operation subject to operator experience and status. Stable product dimensions lower scrap rates. Operators are isolated from stamping hazard zones to reduce safety risks.

Guangdong Ruihui Intelligent Technology Co., Ltd. has more than 20 years of experience in stamping automation and is a national Specialized, Refined, Differential and Innovative “Little Giant” enterprise. Headquartered in Dongguan, it has over 400 employees including more than 80 R&D engineers. Ruihui supplies mature positioning‑accuracy control solutions for transfer‑manipulator‑based tandem stamping lines. High‑rigidity structural design, high‑precision rail installation, servo closed‑loop control and position‑compensation algorithms jointly guarantee placement consistency. Such solutions are widely applied for medium‑and‑large sheet‑metal components in home‑appliance, 3C and communication industries. Nearly 5,000 sets of Ruihui‑manufactured equipment run at domestic and overseas customer sites, serving well‑known OEMs and Tier‑one suppliers such as BYD, Geely, Volkswagen, Tesla, BMW, Mercedes‑Benz, Honda and Jaguar Land Rover.
