Turnover Machine Industrial Solution for Automatic Flipping of Stamped Sheet Metal Workpieces Between Processes

In a stamping shop, there is a task that looks simple but is practically impossible for manual labor: flipping an entire stack of sheets. Flipping a single sheet by hand is manageable, but a stack of dozens or even hundreds of sheets—weighing hundreds of kilograms—simply cannot be turned over by human strength. An overhead crane is not a safe option either; the slightest mishap can cause the entire stack to collapse, scrapping the sheets and potentially injuring workers. The turnover machine is specifically designed to handle this challenge.

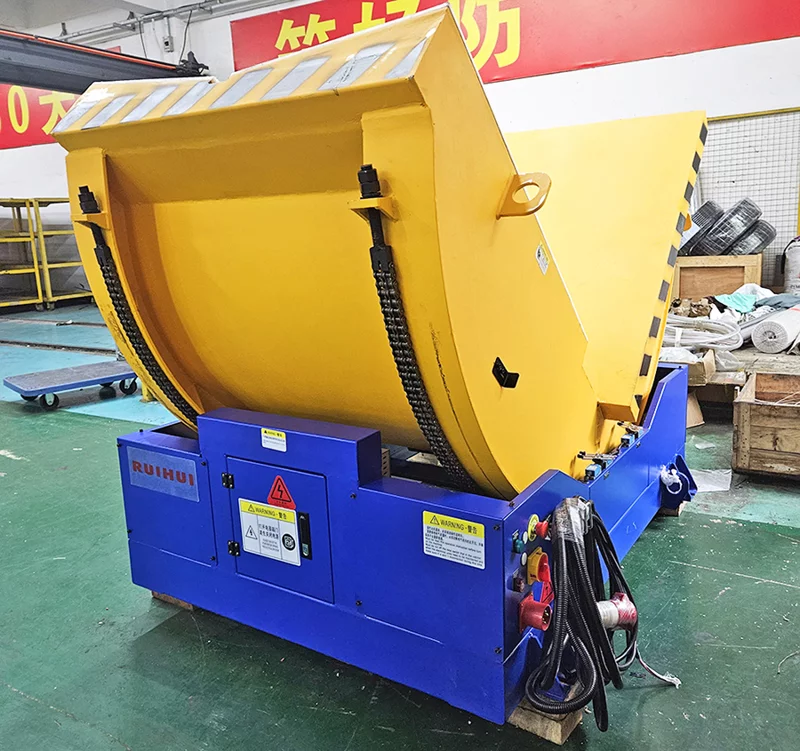

The turnover machine is a standalone station, not operating inside the press. It is typically positioned between the blanking line and the stamping line, or between process steps within the stamping line. Its job is to securely clamp an entire stack of sheets and rotate it by 90° or 180°, so that the sheets enter the next process in the correct orientation. The entire flipping process is fully automatic and requires no manual intervention. The turnover machine transforms what used to be a risky operation—previously done manually or with cranes—into a safe, reliable, and highly efficient automated step.

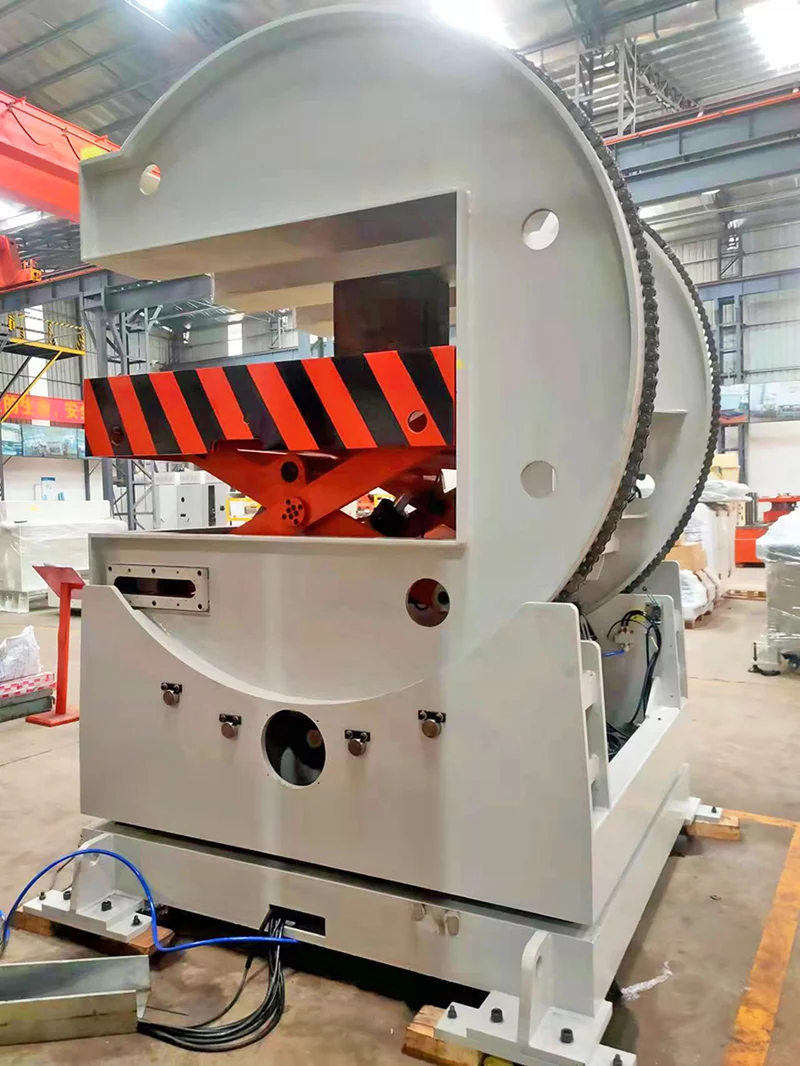

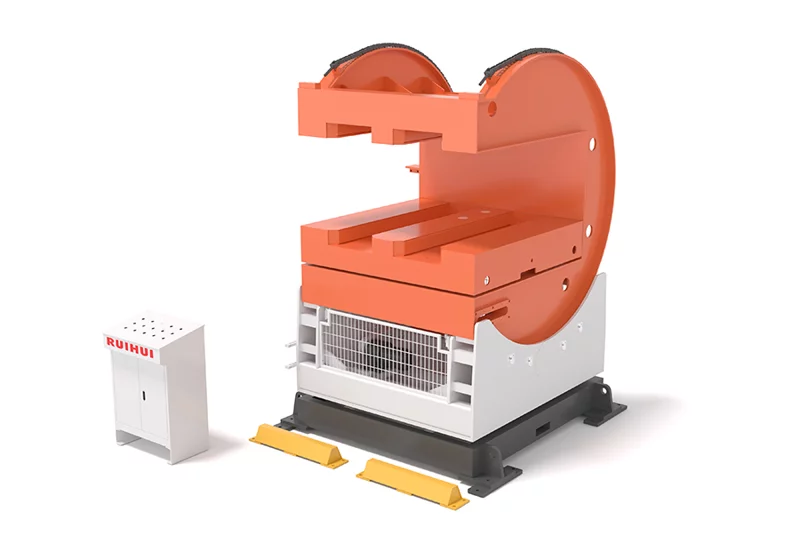

The basic structure of a turnover machine includes a fixed frame, a clamping mechanism, a drive system, and an electrical control system. In operation, a forklift or crane delivers a stack of sheets onto the machine's platform. The clamping device secures the stack, and the hydraulic or servo drive system rotates the flipping mechanism to the target angle. Once in position, the clamp releases, and the equipment for the next process takes the stack away. The entire process is smooth and controlled, with no relative sliding between sheets, so surfaces remain scratch‑free. The clamping device is critical—it must hold the stack firmly throughout rotation without any loosening, yet the clamping force cannot be too high, or it may leave marks on the top or bottom sheets.

The turnover machine has several main application scenarios in stamping shops. One is between the blanking line and the stamping line—when the sheet orientation from the blanking line does not match the feeding direction of the stamping line, flipping the stack corrects the orientation. Another is in transitions between hot stamping and cold stamping lines, or within multi‑stage stamping processes where sheets need to be flipped before continuing. In these cases, the turnover machine acts as an orientation‑changing station. With the turnover machine, these formerly manual or crane‑dependent flipping operations are fully automated—safer and more efficient.

When selecting a turnover machine, several key parameters must be considered. The load capacity must account for the total weight of a full stack, with an appropriate safety margin. The sheet size range must match the equipment's maximum dimensions—length, width, and height. The required flip angle—whether 90°, 180°, or both—must be supported. And the flipping speed must not become a bottleneck for the entire line. A good turnover machine can complete a flip in under one minute, significantly faster than manual or crane operations.

Guangdong RuiHui Intelligent Technology Co., Ltd. provides turnover machines as a standard module within its complete stamping automation line solutions. RuiHui selects the appropriate model based on the customer's sheet dimensions, weight, stack height, and required flip angle, ensuring that the turnover machine does not become a constraint in the overall line. RuiHui's turnover machines have been widely used in the home appliance, automotive, and 3C industries, playing a key role in sheet flipping operations.
