Automation Solution of Hot‑Forming Line for Automotive High‑Strength‑Steel Hot‑Stamped Parts

Growing requirements for vehicle safety and lightweighting drive wide adoption of high‑strength‑steel components. Hot stamping serves as the mainstream manufacturing process: blanks are heated to 800‑900 °C, stamped while hot, and rapidly quenched inside dies to produce high‑strength lightweight parts. Manual operation is impossible for high‑temperature blank handling, making automation indispensable for hot‑forming production lines.

The overall process includes blank loading, heating inside furnace, hot‑blank transfer to press die, hot stamping and in‑die rapid quenching, followed by part conveyance to subsequent processes. The critical link is furnace‑exit‑to‑die feeding. Blanks cool rapidly after leaving the furnace. Excessive transfer time degrades quenching effect and fails to meet target part strength.

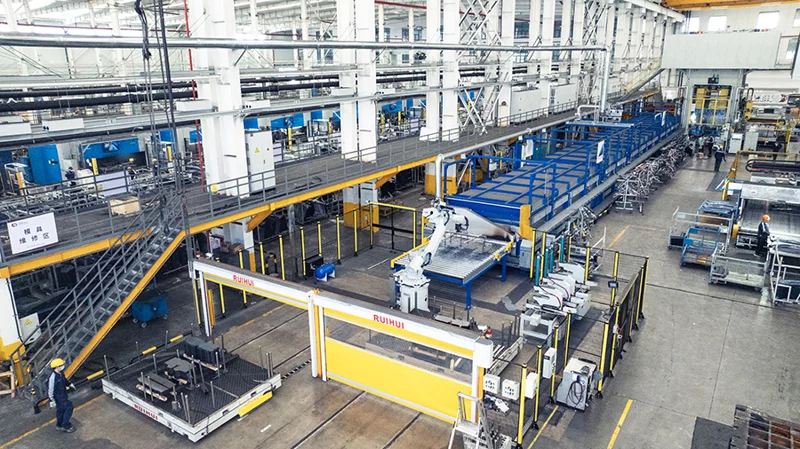

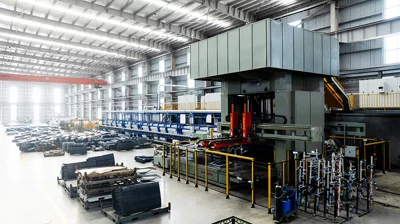

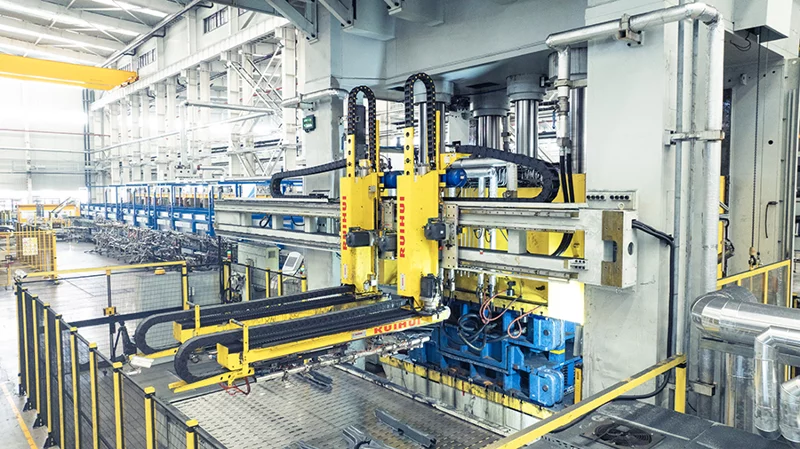

Key automated‑station configurations are as follows. The heating furnace delivers uniform and stable blank temperature with material in‑out logic coordinated with manipulators. High‑temperature loading‑unloading manipulators transfer blanks between furnace and press as well as finished‑part output. End‑effectors adopt heat‑resistant alloy grippers which maintain stable performance without deformation under high‑temperature contact. The press provides sufficient stamping force together with die internal rapid‑cooling capacity, and its takt shall match furnace and manipulator performance. Front‑end blank feeding and back‑end part‑collection peripherals complete the workflow.

Precise time‑sequence coordination constitutes the core of the solution. Reliable signal inter‑communication synchronizes furnace discharging, manipulator pick‑and‑place and press stamping. Optimized robot motion keeps furnace‑to‑die transfer within limited time window. Any delay will disrupt the whole line and impair part mechanical properties.

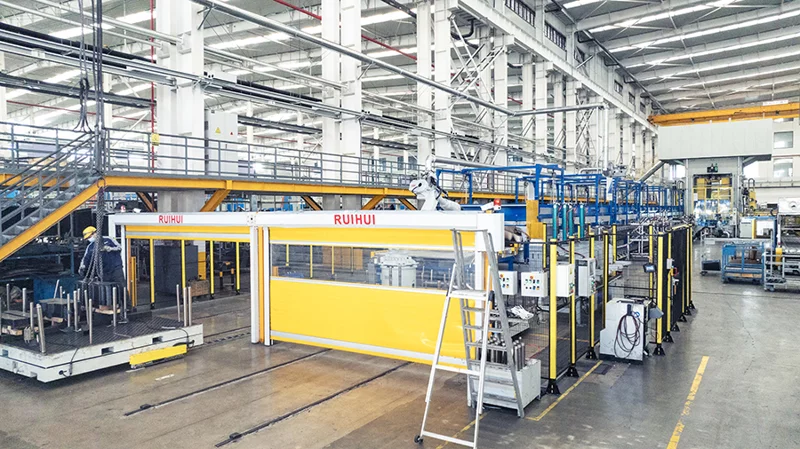

Comprehensive safety protection is required for high‑temperature surroundings. Robust safety interlocks between manipulators and presses prevent personnel access to hot and stamping hazard zones. Heat loss shall be minimized during blank transfer. Considering accelerated component wear under thermal conditions, grippers and heat‑insulating parts shall be easy‑to‑inspect and quick‑to‑replace for good maintainability.

Automation enables mass‑production of hot‑stamped high‑strength‑steel parts which cannot rely on manual handling. Stable takt and accurate positioning guarantee consistent part strength. Operators are isolated from high‑temperature and stamping risks. Continuous full‑line operation secures production capacity.

In conclusion, automation is a mandatory requirement for automotive high‑strength‑steel hot stamping. Integrated combination of heating furnace, high‑temperature manipulators and press, with accurate timing, high‑temperature resistance and complete safety safeguards, realizes stable mass production of hot‑formed components.

Guangdong Ruihui Intelligent Technology Co., Ltd. has over 20‑year experience in stamping automation and is a national Specialized, Refined, Differential and Innovative “Little Giant” enterprise. Headquartered in Dongguan, it has more than 400 employees including over 80 R&D engineers. Ruihui supplies turn‑key automation packages for hot‑forming lines covering furnace material handling, high‑temperature manipulators and press timing coordination. Specially‑developed manipulators are equipped with heat‑resistant alloy grippers and thermal‑protection structures for long‑term stable thermal‑environment operation, supported by mature timing logic and safety interlocks. The company has delivered hot‑forming automation lines for multiple automotive component manufacturers. Nearly 5,000 sets of Ruihui‑manufactured equipment run at domestic and overseas customer sites, serving well‑known OEMs and Tier‑one suppliers such as BYD, Geely, Volkswagen, Tesla, BMW, Mercedes‑Benz, Honda and Jaguar Land Rover, with rich hot‑forming‑project experience.
