Robot Stamping Line for Automotive Body Sheet Metal Design of a Fully Automatic Stamping Production Line for Body Panels

Automotive body sheet metal parts, especially body panels, are large in size, require many operations, and demand high surface quality. In the past, many factories produced these parts using multiple presses with manual loading and unloading, where workers had to carry material back and forth between presses. Large and heavy panels were difficult to handle, and accurate placement was hard to achieve, resulting in low efficiency, unstable quality, and high safety risks. The robot stamping line for automotive body sheet metal was developed to address this problem, turning panel stamping into a fully automatic production line.

Why are body panels suitable for robot stamping lines? First, because they require many operations and are large in size. Panels often go through drawing, trimming, piercing, flanging, and restriking operations. A single press cannot accommodate so many die sets, so multiple presses must be arranged in tandem according to the process sequence. Second, surface quality requirements are extremely high—outer panels cannot tolerate scratches or dents. Manual loading and unloading easily causes surface damage during handling. Robots use multi-point vacuum suction cups to pick up parts, distributing force evenly and providing far better surface protection than manual handling.

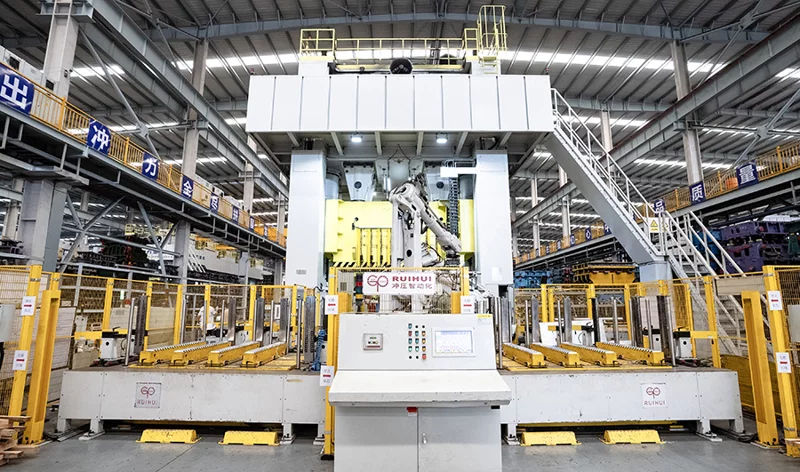

In terms of line design, the fully automatic stamping production line for body panels is structured as follows: at the front end is destacking and feeding—the sheet stack is automatically destacked, fed sheet by sheet, positioned, and delivered to the first press. In the middle, multiple presses are arranged in tandem according to the process sequence, with robots between every two presses for loading and unloading. The robot removes the workpiece from the previous press's die and places it into the next press's die. At the back end is part collection and stacking—finished parts are automatically collected and neatly stacked. The entire line runs fully automatically from blank to finished part.

Several aspects of panel stamping line design require special attention. First, timing coordination. Panel stamping has demanding cycle time requirements. The robot's pick-and-place actions must precisely coordinate with each press's cycle. The press will not operate unless the robot has retreated to a safe position, and the robot will not reach into the die unless the press is at a safe angle. This signal interaction must be reliable. Second, robot configuration. Panels are large and heavy, so the robot's payload and reach must be calculated based on the largest part, with sufficient margin. Third, posture adjustment. Panels sometimes need to be flipped or angle-adjusted between operations. The six-axis flexibility of the robot is perfectly suited for this, and the posture transitions between each operation must be planned during design. Fourth, surface protection. From picking to transferring to placing, the outer panel surface must not be scratched at any point. Suction cup distribution, suction force, and motion trajectories must all be considered.

Line design must also consider flexibility. Automotive models update quickly, and panels change accordingly. The line design should facilitate changeovers—robot programs can be adjusted quickly, die change solutions should be available, and changeover downtime should be minimized. A single line capable of accommodating multiple vehicle models in mixed production is the trend in modern automotive stamping.

Safety design is the bottom line of the production line. A panel stamping line must have safety fencing to enclose the robot and press working areas, with workers operating only in safe zones. Safety light curtains must be installed so that if someone enters the working area, the equipment automatically stops. The safety interlock between robots and presses is the bottom line. When the panel stamping line is running, workers do not touch the sheets or the dies, ensuring safety.

The robot stamping line for automotive body sheet metal transforms panel production from labor-intensive manual work into an automated, intelligent process. Efficiency is improved, quality is stabilized, and safety is ensured. This is the mainstream direction for fully automated production of automotive body panels.
