Hot Forming Loading Unloading Robot How to Evaluate High-Temperature Resistance Performance

Anyone working in hot stamping forming knows that the core of this business comes down to one word: "heat." Sheet material is heated in a furnace to over 900°C, turning it into a glowing red austenitic state, and then immediately transferred from the furnace to the robot, which grips it and loads it into the press die. Throughout this process, the robot is constantly exposed to intense thermal radiation—even without direct contact with the furnace, the red-hot steel itself is a massive heat source. So, whether the robot's high-temperature resistance is up to par directly determines whether the production line can run reliably.

So how do we evaluate this performance? The key lies in its "internal strength"—the materials. Ordinary steel softens, anneals, and deforms under high temperatures, which is fatal to the robot's structural rigidity. A high-temperature-resistant robot must use heat-resistant alloy steels for everything from its main structure to critical transmission components, relying on the material's inherent high-temperature strength to withstand sustained thermal radiation, ensuring that the structure does not deform and accuracy is not lost even in extreme heat.

Second, seals and lubricating grease must also be high-temperature-rated. When a robot runs for extended periods in a high-temperature environment, ordinary seals quickly age and harden under heat, losing their sealing effectiveness. Dust and scale then penetrate the joints, and the equipment soon fails. Similarly, ordinary grease will liquefy and carbonize at high temperatures, causing dry friction between moving parts and accelerating wear. Therefore, the entire sealing and lubrication system must use specialty materials with sufficient temperature ratings—this is an easily overlooked but absolutely critical detail.

Another point that's often missed is cables and air tubing. As the robot moves, these cables must repeatedly flex and bend. If their temperature rating is insufficient, the outer sheath will quickly harden and crack, leading to short circuits or air leaks. High-temperature-resistant specialty cables offer longer service life and greater reliability.

Finally, thermal management of the control system is also important. If servo drives operate under high temperatures for extended periods, they are prone to overheating and shutdown. A well-designed solution will house the controllers in a control cabinet located away from the heat source, communicating with the robot via fiber optics or wireless connections, fundamentally solving the heat dissipation problem.

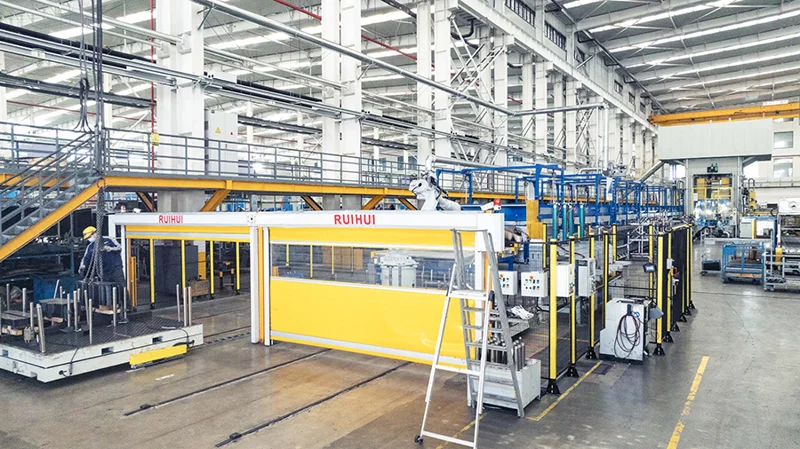

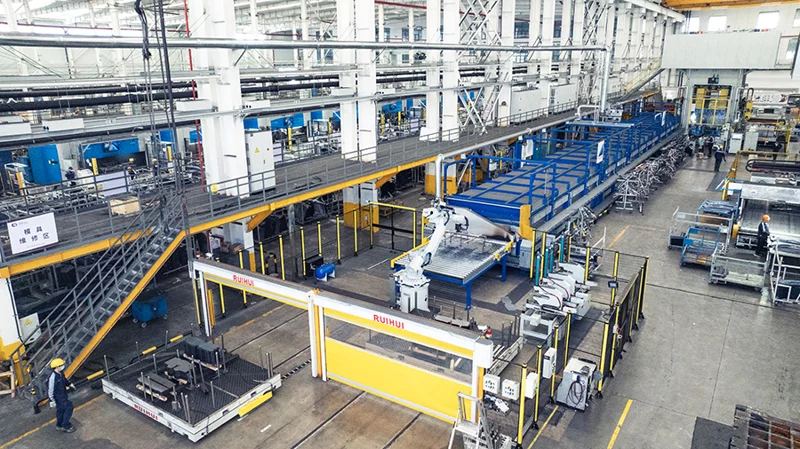

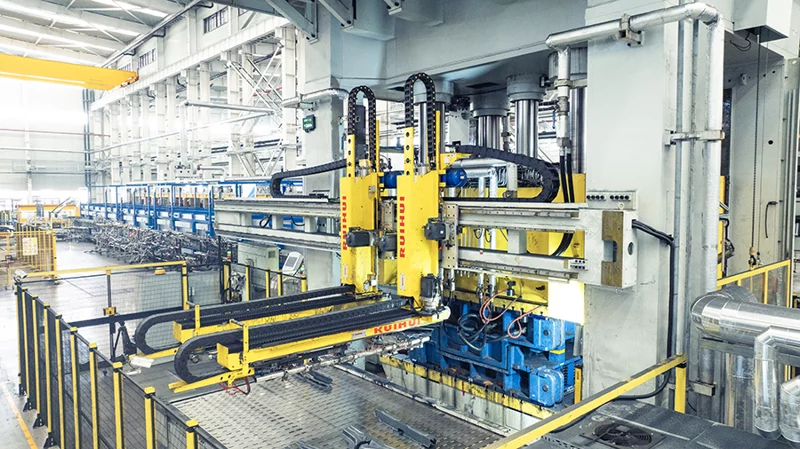

For such extreme operating conditions, Guangdong RuiHui Intelligent Technology Co., Ltd. adopts a core approach in its solution design: relying on materials to solve high-temperature challenges. RuiHui's hot forming loading/unloading robots use heat-resistant alloy steel for all critical structural components, ensuring structural rigidity and dimensional stability at high temperatures through material selection alone. They also incorporate high-temperature-resistant seals, specialty greases, and heat-resistant cables to ensure that the entire machine does not "shut down" under continuous thermal radiation. This technical philosophy—grounded in materials and process excellence—delivers proven long-term reliability and service life.

In summary, evaluating a hot forming robot's high-temperature resistance comes down primarily to the thermal capacity of the materials themselves, while also considering seals and lubrication, cable temperature ratings, control system heat dissipation, and other dimensions. The factor that truly determines whether equipment can maintain stable long-term operation in high-temperature environments is, above all, whether the materials themselves can "take the heat."
