What to Retrofit on an Old Slitting Line to Improve Slitting Quality

Many factories have old slitting lines that have been in service for eight or ten years. When these lines were purchased, they were good equipment, but by today's standards, their slitting quality no longer keeps up—either the cut edges have large burrs, or the width tolerance cannot be held consistently, or the rewound coils are loose and uneven. Replacing an entire slitting line requires a significant investment, so many owners wonder: can we upgrade just a few key areas without replacing the whole line and bring slitting quality up to a new level?

The answer is yes. Retrofitting an old slitting line is essentially about "spending money where it counts"—focusing on the areas that directly affect slitting quality.

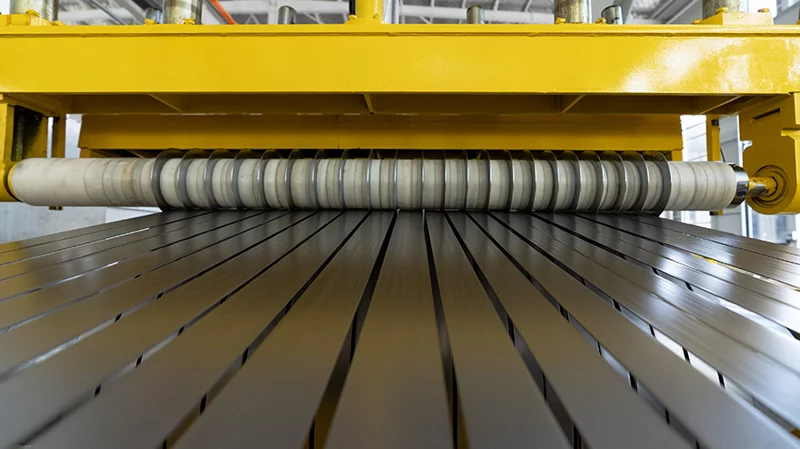

The first area to address is usually the shearing system. After years of use, the circular slitter blade holders on old lines suffer from worn arbor bearings and increased blade holder clearances. When blades are mounted and rotated, they run out, and the slit edges are naturally not clean. During retrofit, if the blade holder body is still solid, consider replacing it with a set of high-precision bearings and arbors to reduce runout. If the blade holder itself is severely worn, simply replace it with an integrated blade holder—the new holder offers much better rigidity and precision than the old one.

Blades are also a key upgrade target. Old lines may still use ordinary tool steel blades with average wear resistance, requiring sharpening after just a few thousand meters. Many retrofit solutions now recommend switching to powder metallurgy high-speed steel or carbide blades, which offer higher hardness and better wear resistance, last longer per setup, and provide more stable slit edge quality. An automatic clearance adjustment device is also worth adding—old lines rely on manual feeler gauge adjustment, which is slow and depends on the operator's touch. Adding an automatic clearance adjustment mechanism lets you input material thickness and type, and the system automatically calculates the optimal clearance—fast and accurate, with noticeably improved burr control.

The second area to address is the tension control system. On old slitting lines, rewind tension control often relies on mechanical friction clutches, which generate tension through friction. This method has obvious drawbacks: tension is unstable, fluctuating as the rewind diameter increases and friction changes. During retrofit, replace it with a servo-controlled independent tension system. Each narrow strip's rewind tension can be individually set and adjusted with real-time feedback, resulting in consistent tightness and significantly improved end-face alignment. For materials that will undergo precision stamping after slitting, good rewind quality ensures smooth unwinding in the next process.

The third worthwhile upgrade is the edge guiding system. Old lines either use mechanical guides that push hard, or photoelectric sensors with slow response and low accuracy. The current mainstream solution uses high-precision CCD or laser sensors to detect strip edge position in real time, with fast response and high accuracy, combined with servo-driven guide rollers to keep strip deviation within an extremely small range. Once slitting width accuracy is stabilized, narrow strip width consistency naturally improves.

The fourth area that can be upgraded is automation auxiliary equipment. For example, if the old line has no automatic loading trolley, coil changes rely entirely on manual overhead crane operation—lifting, aligning, and mounting the mandrel—taking over half an hour. With an automatic loading trolley, the coil is hoisted on, automatically centered, and automatically pushed onto the mandrel, completing a coil change in just a few minutes. Another example: if the old line has no automatic scrap edge winding, the edge scrap scatters on the floor and workers must clean it frequently. Adding a scrap edge winder automatically winds the edge scrap into small coils for collection, keeping the area clean and eliminating the need for a dedicated person to handle edge scrap.

Fifth, control system upgrades can be considered as a whole. Old lines have control cabinets full of relays and contactors, with many failure points and difficult wiring to troubleshoot. Switching to a PLC plus touchscreen control system centralizes all line operations on one screen, with speed, tension, and slitting parameters clearly visible, and the ability to store multiple process recipes. When changing specifications, simply recall the recipe with one touch—no need to reset parameters one by one, making operation easier and reducing errors.

In summary, retrofitting an old slitting line is about "grasping both ends and controlling the middle"—improving shearing quality and rewind quality, and controlling edge guiding and tension during operation. The changes are not extensive, the investment is far less than buying a new line, but the improvement in slitting quality is very noticeable. If the equipment foundation is still in good condition, retrofitting is a highly cost-effective choice.
