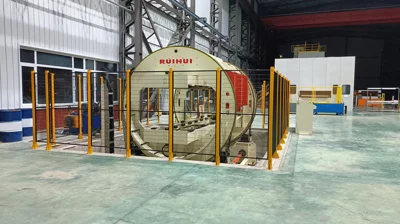

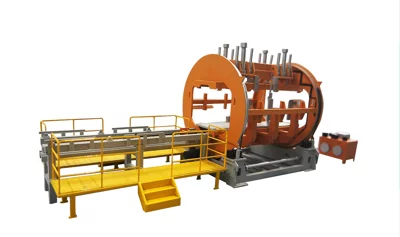

Large Coil Tipper Machine
The large coil tipper machine is composed of the tipper part and the loading and unloading part, featuring both stack flipping and horizontal rotation capabilities. It enables single-side loading and unloading, making it ideal for heavy-duty material handling applications. Equipped with an independent control system, all actions can be completed automatically with one-button operation, streamlining workflows and enhancing efficiency. The machine is equipped with safety guards, ensuring operator safety.
1. It is equipped with stack flipping and horizontal rotation functions, enabling single-sided loading and unloading of material stacks.
2. It features an independent control system, allowing all operations to be executed with a single touch.
3. It can bear a large weight of material stacks, meeting the needs of different scales of production.
4. A well-designed and robust structure ensures the stability and reliability of the equipment during long-term operation.
5. It achieves stable start and stop of flipping motions, effectively preventing machine damage or material displacement due to inertia.
| Item | Large Coil Tipper Machine |
|---|---|
| Stack Length mm | 300~4500 |
| Stack Width mm | 300~2050 |
| Stack Height mm | 750 (Including Tray) |
| Stack Weight t | 20 |
| Rack Thickness mm | 150 |
| Maximum Opening mm | 300~1100 |
| Structural Form | O Type |
