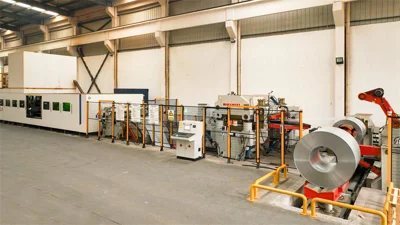

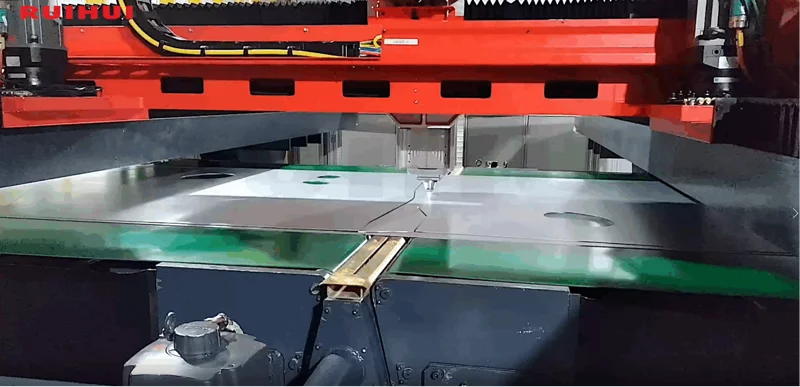

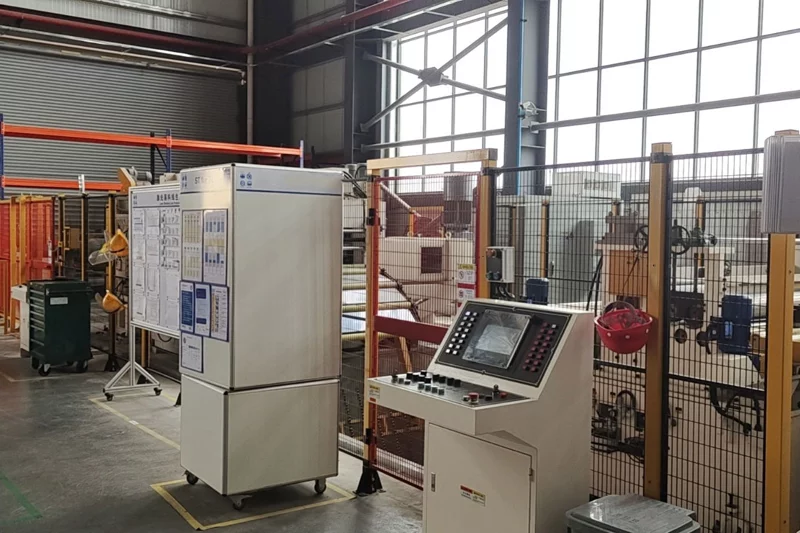

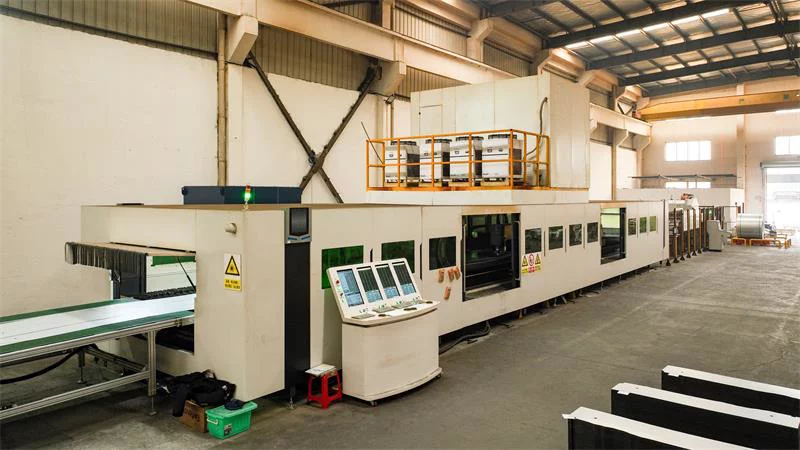

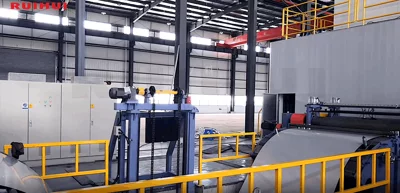

Laser Blanking Line The Future of Rough Sheet Production
Popular Models
-
Laser Blanking Line
Die-free production reduces tooling, maintenance, and storage costs.
High-performance laser cutting system delivers lower consumable costs, easier maintenance, and reduced service expenses.
Intelligent nesting system optimizes material usage and improves efficiency.
Low energy consumption meets green and sustainable production requirements.
Adaptable to various metal parts, enabling high-precision, non-destructive production with outstanding contour accuracy — especially for precision automotive body blanks.
High flexibility supports both small and large batch production, achieving truly flexible manufacturing.
Innovative belt-type follow-up cutting platform ensures long-term cutting efficiency and performance, delivering extremely flexible production at a lower investment cost.
| Item | Laser Blanking Line |
|---|---|
| Material Thickness mm | 0.6–3.5 |
| Material Width mm | 1650 / 1850 / 2250 |
| Number of Laser Cutting Machines Unit(s) | 2 / 3 |
| Laser Power kW | 4 / 6 |
| Maximum Moving Speed m/min | 120 |
| Positioning Accuracy mm | ±0.05 |
| Repetition Accuracy mm | ±0.03 |
| Stroke (X-Axis) mm | 1500 / 3200 |
| Stroke (Y-Axis) mm | 1700 / 1900 / 2300 |
| Power Supply | 3-Phase 380V / 50Hz |
Highly Efficient Die-Free Production
Eliminates the need for stamping dies, enabling flexible manufacturing and significantly reducing tooling costs and maintenance. Suitable for various batch sizes — from prototype development to mass production.
Optimized Material Utilization
Through intelligent nesting, different part shapes are arranged for zero-overlap cutting, maximizing material usage and reducing waste.
High-Performance Laser Cutting System
Equipped with advanced core technology for efficient and precise cutting. Offers low consumable costs, easy maintenance, and reliable localized technical support.

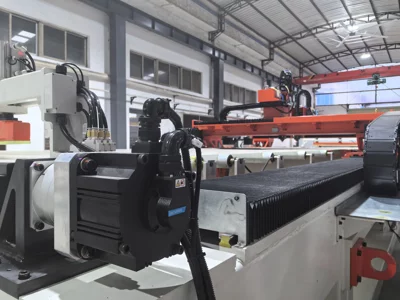

Innovative Belt-Type Follow-Up Cutting Platform
Features a simplified structure with higher acceleration and faster positioning speed. Ensures dynamic, high-precision, non-destructive cutting performance and maintains long-term efficiency and functionality.
Low Energy Consumption
Designed to meet energy-saving and emission-reduction standards, achieving safe, green, and sustainable production.
