6-axis Robot Tandem Stamping Line
Popular Models
-
Robot

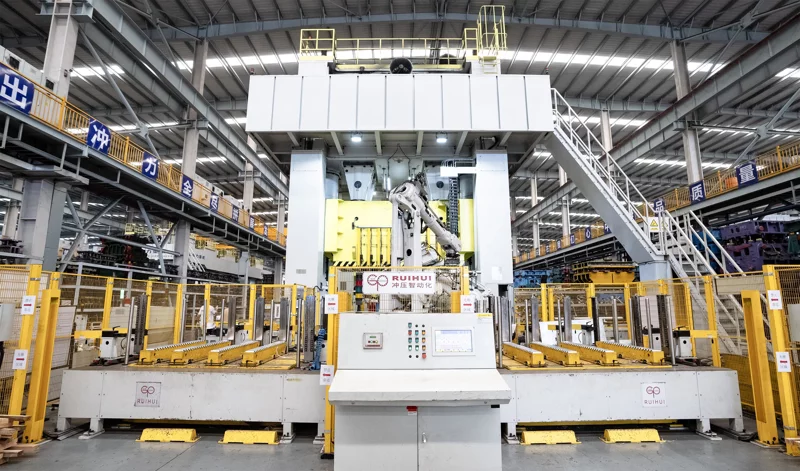

The Robot 6-axis Tandem Stamping Line is a high-efficiency, intelligent, and safe multi-station production system.

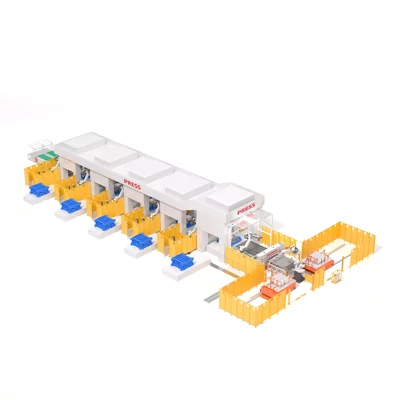

The complete line consists of three core modules: the destacking unit at the line head, the press unit, and the transfer unit at the line tail.
Equipped with six-axis servo robots, intelligent sensors, and a visual detection system, it enables fully automated operations from destacking and feeding to stamping and finished-part output.
Each module features an independent electrical control architecture, offering high modularity and flexibility.
The system can quickly switch production programs to accommodate different vehicle models or component structures, making it ideal for automotive, home appliance, and sheet metal manufacturing requiring high precision.
Through automatic loading, precise centering, intelligent transfer, and flexible unloading, the Robot Automation Stamping Line minimizes manual intervention, significantly improves production efficiency and part consistency, and provides modern smart manufacturers with a highly efficient, stable, and sustainable production solution.
| Item | Robot |
|---|---|
| Max Sheet Dimension mm | 400 × 2500 |
| Min Sheet Dimension mm | 200 × 1500 |
| Sheet Thickness mm | 0.5-3.2 |
| Applicable Material | Steel/Aluminum |
Modular Structure Design
Challenge solved: Traditional stamping lines take a long time to change dies or switch products, with poor flexibility. Designed for high flexibility, the modular structure allows quick adaptation to multi-variety production and complex component requirements. Each unit operates with an independent electrical control system, enabling flexible combination and rapid changeover. Through program switching, the line seamlessly supports both small-batch and mass production of different sheet sizes and product types.
Dual-Station Continuous Loading
Challenge solved: Single loading interruptions cause downtime and limit production efficiency. Equipped with two loading trolley systems, when one destacking platform is in operation, the other can be preloaded to ensure uninterrupted production. Operators place material stacks with pallets onto the trolley, and the built-in pallet positioning system with dual-sheet detection ensures continuous, stable feeding. This significantly improves line utilization and overall productivity.
Intelligent Servo Robot

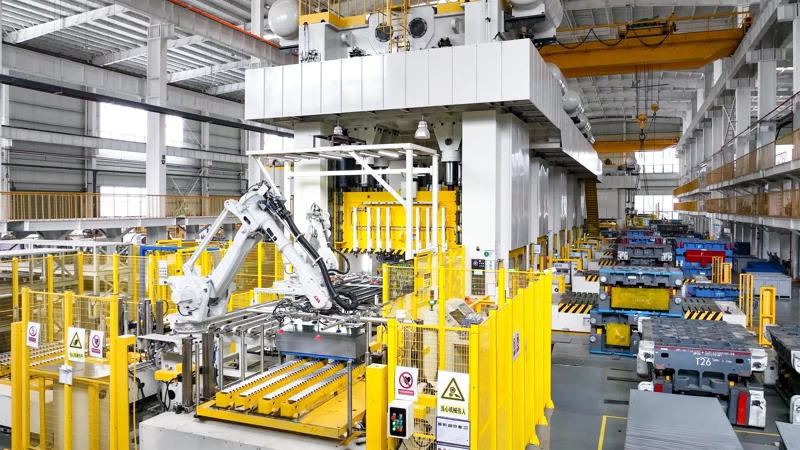

Challenge solved: Manual loading lacks precision and consistency, affecting production rhythm. The six-axis servo robot precisely picks up sheets from the stack, performs dual-sheet detection, and transfers them quickly to the intermediate positioning table. The robot automatically completes gripping, flipping, clamping, and unloading between presses, greatly improving production efficiency and product quality while reducing labor intensity and cost.
High Safety Standard Design

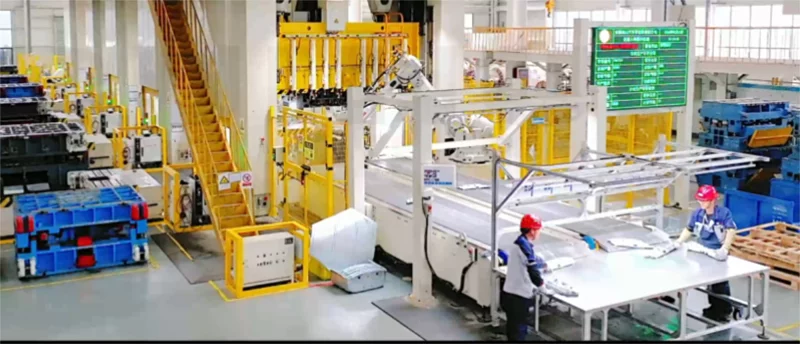

Challenge solved: High labor dependency, safety risks, and maintenance complexity. In the tail-end unit, the robot transfers parts from the last press to the final conveyor. The conveyor is equipped with an emergency stop button, anti-deviation, and alignment systems. Safety light curtains and protective fencing ensure full operational safety. Robots completely replace manual operations in hazardous zones, reducing human risk and ensuring compliance with EU and national safety standards. This minimizes uncontrollable factors, enhances workplace safety, and lowers enterprise risk costs.
