3‑in‑1 Feeder Automated Solution for Stamping Workshops

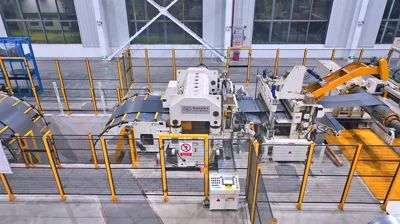

Feeding used to be labor‑intensive in stamping workshops. Operators were required for coil handling, centering and feeding, restricting production efficiency and increasing workload. The 3‑in‑1 feeder integrates uncoiling, leveling and feeding within one unit and delivers a complete automated feeding solution for stamping production.

Conventional feeding systems adopt separate uncoiler, leveler and feeder requiring manual intermediate handling, which is time‑consuming and labor‑intensive. The integrated 3‑in‑1 feeder completes uncoiling, leveling and feeding sequentially without manual material transfer and reduces human intervention to improve efficiency.

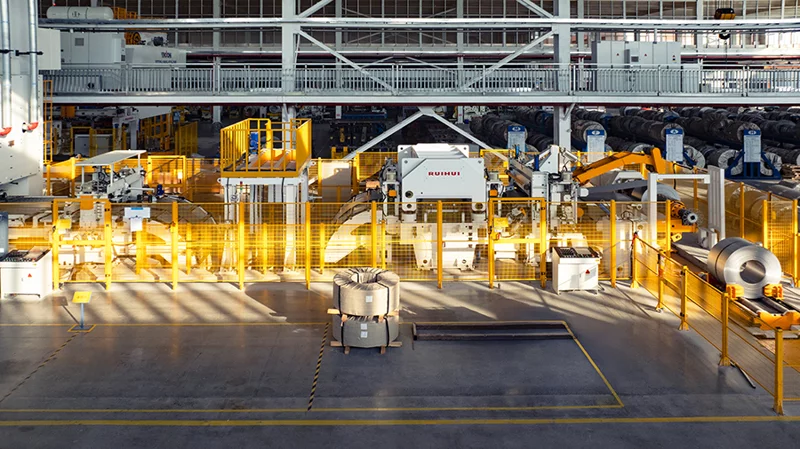

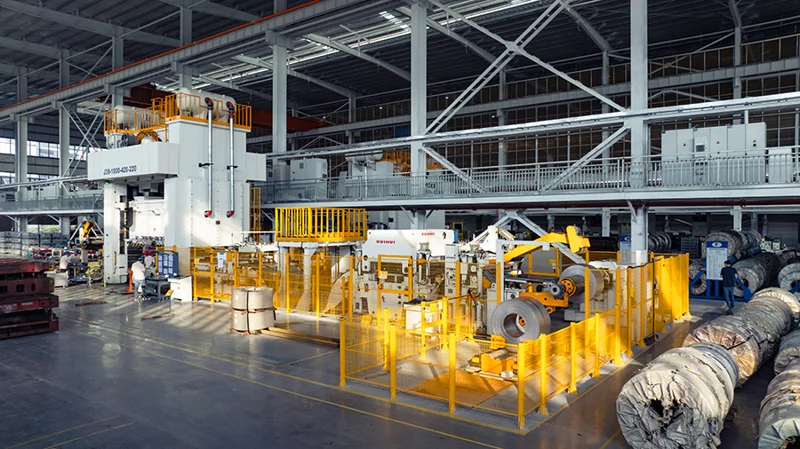

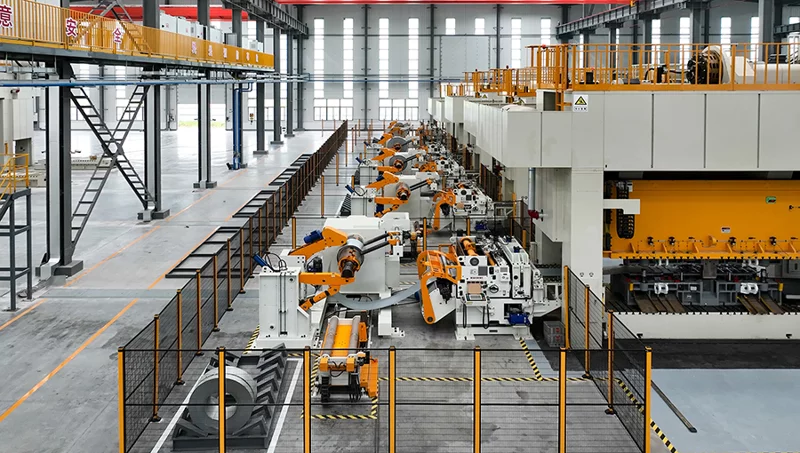

A complete feeding automation system consists of auxiliary units besides the 3‑in‑1 feeder itself. At the upstream end, an automatic coil loading trolley realizes coil positioning and automatic feeding to eliminate manual hoisting and alignment. The core 3‑in‑1 unit performs integrated uncoiling, leveling and feeding. Downstream, it connects with the press for automatic takt synchronization. Some systems are equipped with oil‑coating devices to lubricate sheets before feeding for die protection and better forming performance. The whole line runs automatically from coil loading to stamping.

Feeding accuracy serves as a key performance indicator. Servo‑motor drive and real‑time encoder feedback ensure precise feeding and consistent stamping dimensions. The leveling mechanism relieves internal stress of coil strips to keep material flat and feeding stable for reliable stamping quality. Feeding speed automatically synchronizes with press cycles; new material segments are fed right after each stamping stroke to avoid press idle waiting.

For frequent product changeovers with varying sheet specifications, the formula‑memory function stores feeding parameters for different products. Operators can recall preset formulas directly instead of resetting each parameter, greatly shortening changeover time, which brings prominent advantages for multi‑variant stamping workshops.

This solution brings tangible benefits. Labor demand decreases: one operator can supervise an entire line, mainly responsible for coil change and status monitoring with reduced physical workload. Production efficiency rises thanks to continuous synchronized feeding and stable takt. High feeding precision and superior leveling quality also improve product consistency.

Guangdong Ruihui Intelligent Technology Co., Ltd. has more than 20‑year experience in stamping automation and is a national Specialized, Refined, Differential and Innovative “Little Giant” enterprise. Headquartered in Dongguan, it has over 400 employees including more than 80 R&D engineers. Ruihui widely deploys 3‑in‑1 feeders and supplies complete solutions covering automatic coil trolleys, 3‑in‑1 feeders and press interconnection. Servo drive guarantees feeding accuracy while leveling mechanisms flatten strips. Built‑in formula‑memory supports fast changeover, and oil‑coating modules are optional. Nearly 5,000 sets of Ruihui‑manufactured equipment operate at domestic and overseas sites, serving well‑known OEMs and Tier‑one suppliers such as BYD, Geely, Volkswagen, Tesla, BMW, Mercedes‑Benz, Honda and Jaguar Land Rover, with rich practical experience in feeding automation.
