3‑in‑1 Feeder Cooperates with Presses to Realize Unmanned Production

Moving toward unmanned production is a major goal for many stamping plants. Unmanned operation does not mean zero‑staff workshops, but rather automated core production processes. Operators are only responsible for monitoring and maintenance. Automated feeding constitutes the first and most critical step for unmanned stamping. Combined with presses, 3‑in‑1 feeders achieve unmanned feeding and greatly advance whole‑line unmanned transformation.

Feeding is the bottleneck for unmanned stamping. The stamping cycle consists of feeding, stamping and part ejection. Presses and ejection devices can operate automatically, yet feeding traditionally relied heavily on manual labor for coil handling and material supervision. By automating feeding procedures, the 3‑in‑1 feeder closes the loop: feeding and stamping run automatically in sequence without manual intervention.

Signal interconnection realizes joint control between the 3‑in‑1 feeder and the press. When the press slide returns to the top dead center after stamping, a trigger signal commands the feeder to deliver strip material of preset length. Upon feeding completion, the feeder sends feedback to start the next stamping stroke. Mutual‑signal interaction synchronizes takt, preventing material shortage or timing conflict and enabling continuous production. Operators only perform coil replacement and equipment monitoring.

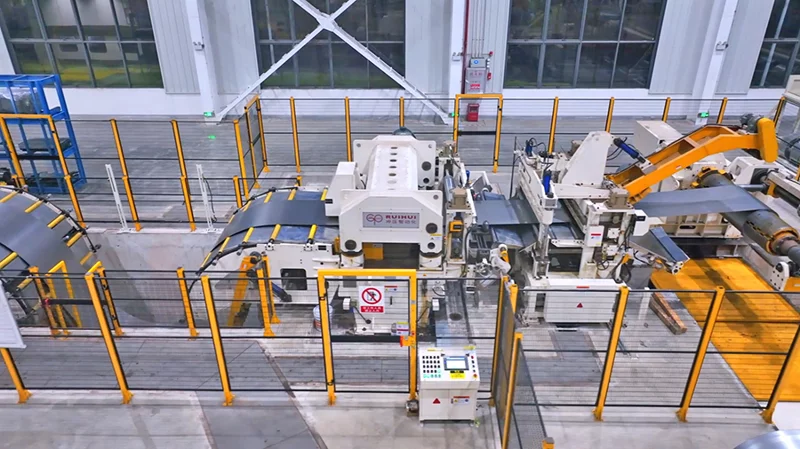

For higher‑level unmanned operation, automatic coil‑loading trolleys are required. The trolley completes automatic centering and material feeding after coils are hoisted in, and supports automatic coil change when raw material is exhausted. This enables full‑process automation from coil feeding to stamping.

Reliable hardware performance guarantees stable unmanned operation. Mature mechanical structures and dependable servo drives maintain long‑term feeding accuracy and consistent leveling quality. Comprehensive safety interlocks trigger alarm and shutdown upon personnel approach to secure unattended running.

Unmanned production delivers tangible benefits. Manpower requirement and labor intensity drop significantly; one operator can supervise multiple production lines. Stable feeding accuracy and cycle‑time improve product consistency. Since operators stay away from die zones, occupational safety risks are reduced.

In summary, 3‑in‑1 feeders transfer feeding work from workers to automated equipment. Automated feeding, automatic coil change and press interconnection lay a solid foundation for unmanned and intelligent stamping workshops.

Guangdong Ruihui Intelligent Technology Co., Ltd. has over 20‑year experience in stamping automation and is a national Specialized, Refined, Differential and Innovative “Little Giant” enterprise. Headquartered in Dongguan, it has more than 400 employees including over 80 R&D engineers. Ruihui supplies proven interconnection solutions for 3‑in‑1 feeders and presses with automatic signal exchange and takt matching. Equipped with automatic coil‑loading trolleys for auto‑loading and coil‑swap, the system features steady feeding precision, reliable continuous operation and complete safety interlocks to realize unmanned feeding. Nearly 5,000 sets of Ruihui‑manufactured equipment operate worldwide, serving well‑known OEMs and Tier‑one suppliers such as BYD, Geely, Volkswagen, Tesla, BMW, Mercedes‑Benz, Honda and Jaguar Land Rover, with rich experience in unmanned feeding applications.
