Application of Metal Stamping Technology in the Automotive Industry
Share to :
In modern automobile manufacturing, metal stamping is one of the core production processes. Whether it's body structural components, safety components, or functional parts such as engine compartments and chassis, the vast majority rely on high-efficiency, high-precision stamping processes. The most representative examples are progressive die stamping lines, 3-axis transfer stamping lines, and hot forming stamping lines. This article will help you understand the application of these three production lines in the automotive industry.
Progressive Die Stamping Line
Overview
(The leveled metal strips are then continuously stamped.)
Progressive die stamping lines are mainly used for high-efficiency, large-volume production of small to medium-sized automotive parts.
The material is continuously fed in coil form, and multiple processes such as blanking, forming, and cutting are completed in sequence within a single progressive die.
Features
1. Continuous feeding, high speed.
2. Fixed die stations ensure high product consistency.
3. Dense station layout limits forming capability.
Typical Products
Electrical connectors, seat belt metal buckles, seat components.
(Here is a progressive die stamping line. After being processed by the NC straightener feeder, the metal strip is fed into the press to begin stamping.)
Transfer Die Stamping Line
Overview
(3-axis transfer handles workpieces.)
Transfer die stamping lines are mainly used for forming medium to large automotive structural and body parts. Material is usually fed as sheets and transferred between die stations by a 3-axis transfer to complete multiple forming processes, balancing forming capability and production efficiency.
Features
1. Can produce multiple types of products.
2. High automation, including automatic coil feeding and press die change.
3. Spacious layout with independent die stations, suitable for complex segmented forming.
4. 3-axis transfer system requires more complex setup and maintenance, with higher investment costs.
Typical Products
Car hoods, trunk lids, door panels.
(Here is a compound 3-axis transfer stamping line. It can start with either coils or sheets.)
Hot Forming Stamping Line
Overview

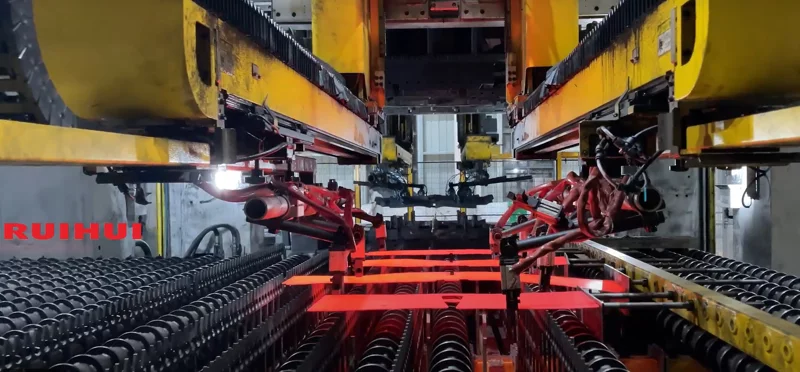

(Heated metal sheets are being transported.)
Hot forming stamping lines are designed for high-strength steel forming. High-temperature heating reduces the material’s yield strength, improves ductility and flowability, and facilitates stamping. Rapid cooling after heating transforms the material structure into martensite, further increasing strength. To ensure fast cooling, the production line requires precise coordination between the heating furnace and the press.
Features
1. Strong forming capability with high finished product strength.
2. To ensure precise control and stable automation, it requires temperature sensors, monitors, making the system complex and costly.
3. Sheet heating requires waiting time, so production efficiency is moderate.
4. Dies, conveyor belts, and manipulator end effectors must be designed to withstand high temperatures for stable operation.
Typical Products
Automotive A and B pillars, crash beams, electric vehicle battery protection shells, door reinforcement parts.
(Here is a Roller furnace hot forming stamping line.)
(This is a comparison of the three production lines.)
| Progressive Die Stamping Line | Transfer Die Stamping Line | Hot Forming Stamping Line | |
| Cost | Moderate | High | Higher |
| Maintenance | Simple | Moderate | Difficult |
| Ease of Operation | Simple | Moderate | Difficult |
| Speed | Fast | Medium | Slow |
| Forming Type | Simple / Continuous Forming | Complex / Multi-step Forming | Complex / Hot Forming |
| Forming Capability | Moderate | Good | Excellent |
