How Does a Three-in-One Feeder Improve Stamping Production Efficiency

In stamping workshops, coil material handling is often the "hidden bottleneck" that limits overall line efficiency. In the traditional setup, uncoiling, leveling, and feeding are handled by three separate machines—not only occupying more floor space and requiring complex commissioning, but also prone to feeding inaccuracies caused by coordination errors between machines. The three-in-one servo feeder was developed precisely to address this pain point—integrating all three functions into a single unit to improve the smoothness and stability of stamping production from the very start.

Integrated Design Reduces Error Accumulation

The core advantage of the three-in-one feeder lies in its "integration." The three processes—uncoiling, leveling, and feeding—are completed on a single machine frame, eliminating the cumulative errors that can arise from inconsistent installation baselines in separate machines. With servo motor drive and high-precision encoder feedback, feeding accuracy can be consistently maintained within ±0.05mm, making it especially suitable for automotive components or 3C precision parts with stringent dimensional consistency requirements.

More importantly, the leveling rollers and feed rollers share a coaxial design. The sheet metal enters the feeding stage immediately after leveling, reducing intermediate stops and the risk of secondary deformation. For difficult-to-level materials such as high-strength steel and stainless steel, this integrated structure more effectively eliminates internal stress, ensures sheet flatness, and provides a stable foundation for subsequent stamping operations.

Quick Changeover Adapts to Multi-Variety Production

Modern stamping orders are increasingly trending toward "small-batch, multi-variety" production, making frequent changeovers a regular occurrence. Three-in-one feeders typically feature large touchscreen control systems that can store hundreds of product parameter sets. During changeovers, the operator simply recalls the corresponding program, and the equipment automatically adjusts parameters such as leveling gaps and feed lengths—eliminating the need for manual repeated adjustments.

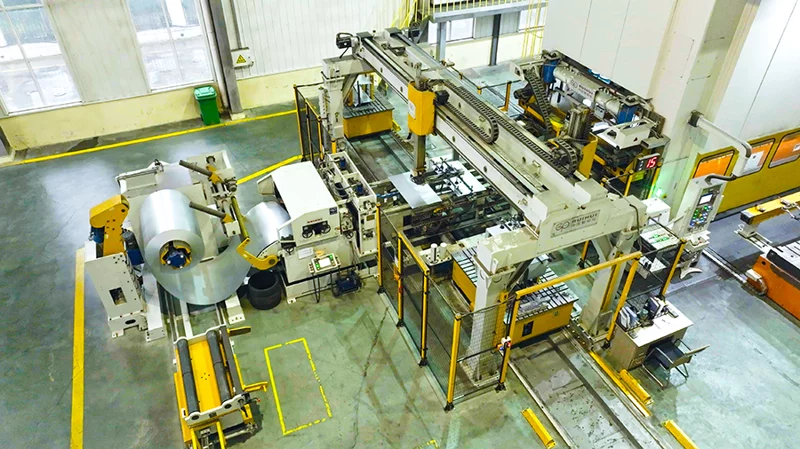

Some high-end models also support automatic loading carriages and material head shearing functions to further reduce manual intervention. For example, when a coil runs out, the carriage automatically loads a new coil, the shearing unit trims the material head, and the line can quickly resume operation. This "one-touch changeover" capability enables the equipment to maintain efficient operation even in scenarios requiring frequent product changes.

High-Speed Response Matches High-Cycle Lines

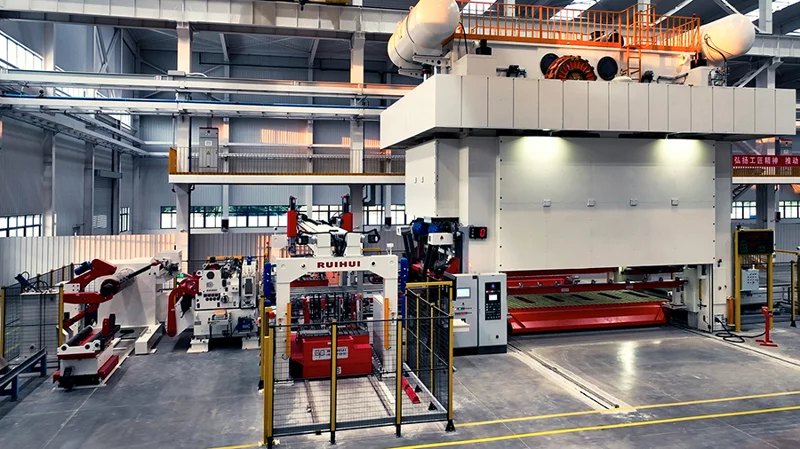

In high-speed stamping applications, feed rates can reach over a hundred cycles per minute, placing stringent demands on servo system response speed. The three-in-one feeder uses high-performance servo drives with precise start-stop control, eliminating slipping or overshooting, and reliably matching the cycle requirements of high-speed presses.

Additionally, the equipment can be equipped with double-sided oiling devices based on material characteristics. Uniform lubrication not only protects the dies but also reduces stamping resistance, indirectly improving stamping speed and die life. For products with strict surface cleanliness requirements—such as new energy battery casings—dust removal modules can also be added to prevent metal dust from affecting downstream welding quality.

Intelligent Coordination Unlocks Full-Line Automation

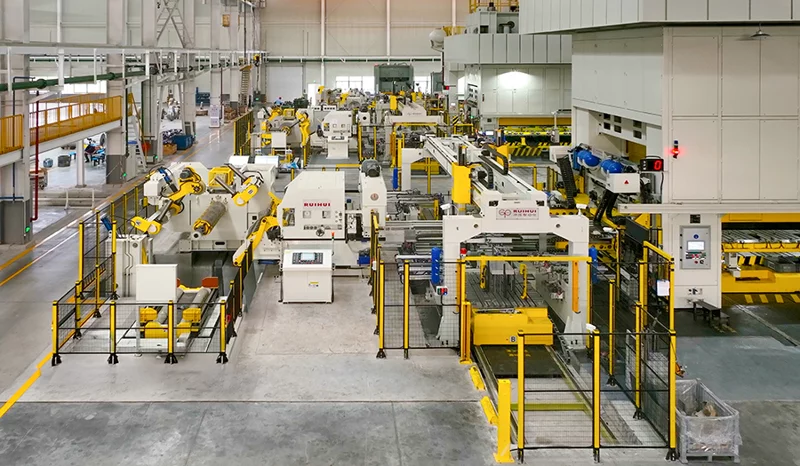

The three-in-one feeder is more than just a standalone machine—it serves as the "front-end hub" of an automated production line. It can interface with decoilers, transfer robots, stackers, and other equipment to form a fully automated process from coil to finished part. For example, in the complete stamping line solutions provided by RuiHui, the three-in-one feeder integrates seamlessly with 3-axis transfer robots and automatic collection systems to enable unattended continuous production.

The control system comes with standard communication interfaces that can connect to the factory MES system, enabling real-time upload of feeding data, fault alarms, and other information for production management and traceability. This digital capability transforms the equipment from a mere "workhorse" into a data node within the smart factory.

Stable and Reliable Operation Reduces Downtime Risks

The long-term stability of equipment directly impacts production efficiency. Three-in-one feeders feature high-strength frame structures, with critical components such as leveling rollers undergoing heat treatment for enhanced wear resistance. Some models offer hinged-top designs for easy cleaning of internal debris, preventing scratches or feeding deviations caused by accumulated waste material.

For thick-plate stamping (3mm and above), the equipment is equipped with powerful backup pressure rollers to ensure effective leveling. As long as users select the appropriate model based on their commonly used material thickness and width—and avoid operating beyond specifications—the equipment will deliver stable long-term performance.

Conclusion

Through its integrated, intelligent, and high-precision design, the three-in-one feeder ensures the continuity and consistency of stamping production from the very source. It is not only an "accelerator" for efficiency improvement, but also a cornerstone for achieving automated and digitalized production.

Guangdong RuiHui Intelligent Technology Co., Ltd. has over two decades of deep experience in the stamping automation field. Their three-in-one feeders—with their integrated uncoiling, leveling, and feeding design—have mature applications in stamping lines across automotive, home appliance, 3C hardware, and other industries, providing stable and reliable automation equipment and complete line solutions to thousands of enterprises both domestically and internationally.
