Introduction of C-Type Independent Manipulator Stamping Production Line

In modern manufacturing, stamping is a crucial process, and its level of automation directly impacts production efficiency and product quality. The C-type independent manipulator, as an innovative achievement in stamping automation, is reshaping traditional stamping production methods with its unique structure and superior performance, providing strong technical support for enterprises to achieve intelligent upgrades. This article will help you understand the components and characteristics of the C-type independent manipulator stamping production line.

Components

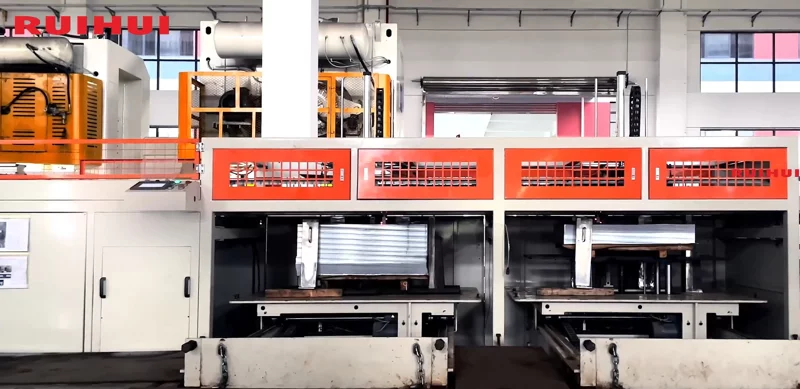

1. Destacking System

Materials are transported via destacking trolleys, then magnetically separated from the upper layers of sheets, and finally picked up and transferred by robotic arms. To improve production efficiency, this production line is typically equipped with a dual destacking system.

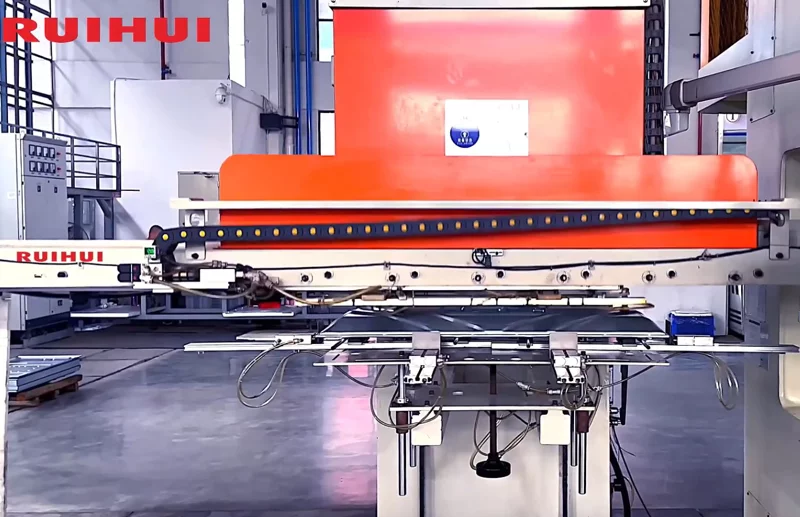

2. C-Type Independent Manipulator

C-Type independent manipulators are responsible for transferring workpieces between the punch presses. Each robot can operate independently. The manipulator is designed for vertical movement as a whole, rather than vertical movement along a horizontal bar. The tracks are C-shaped, therefore, it is called C-Type.

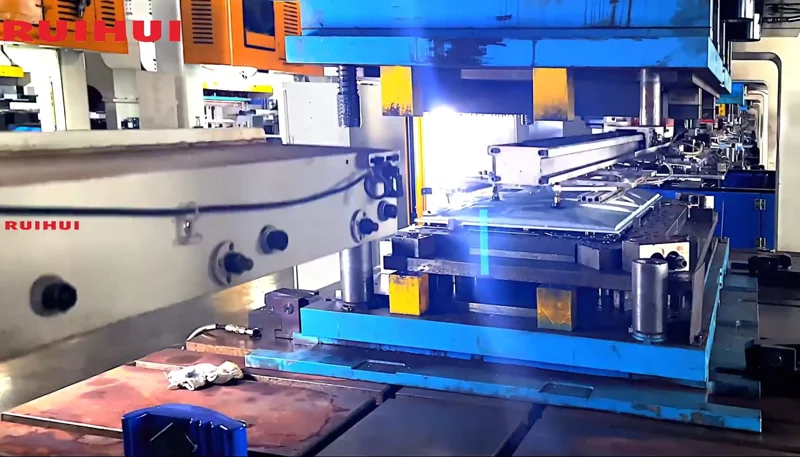

3. Press Machine

This production line usually consists of 2-6 punch presses. Multi-station dies are typically used on the presses to achieve continuous punching, forming, and trimming processes.

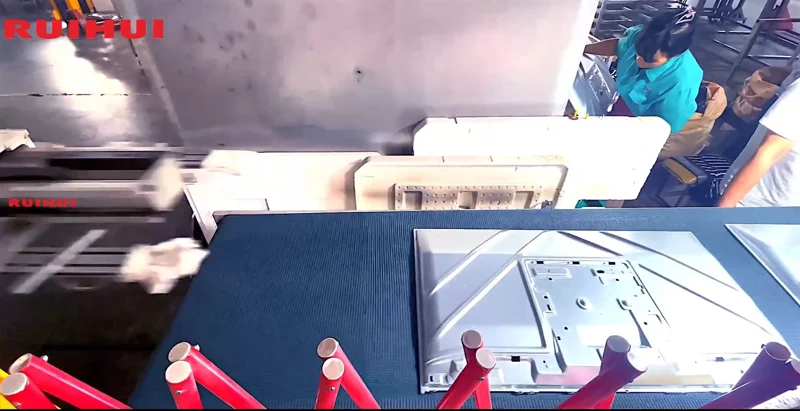

4. Conveyor Belt



The conveyor belt is responsible for smoothly transporting the stamped finished products to the manual material receiving area.

Main Features

1. High Stability

The C-Type structure design allows the manipulator to remain stable under high-speed operation and heavy load conditions, making it less prone to shaking or wobbling, and accurately placing the workpiece into the mold.

2. Easy Maintenance

The independent design allows for individual repair or replacement of a single manipulator in case of malfunction, without causing prolonged downtime for the entire production line.

Application areas

1. Home Appliance Industry

It is generally used for continuous stamping of parts such as refrigerator and washing machine shells.

2. Automotive Parts

Generally used for multi-process molding of car doors, hoods, and so on.

In general, the C-Type independent manipulator stamping production line is suitable for processing medium to large-sized sheet metal. With its excellent material handling capabilities, it provides higher production efficiency and ensures higher finished product quality.
