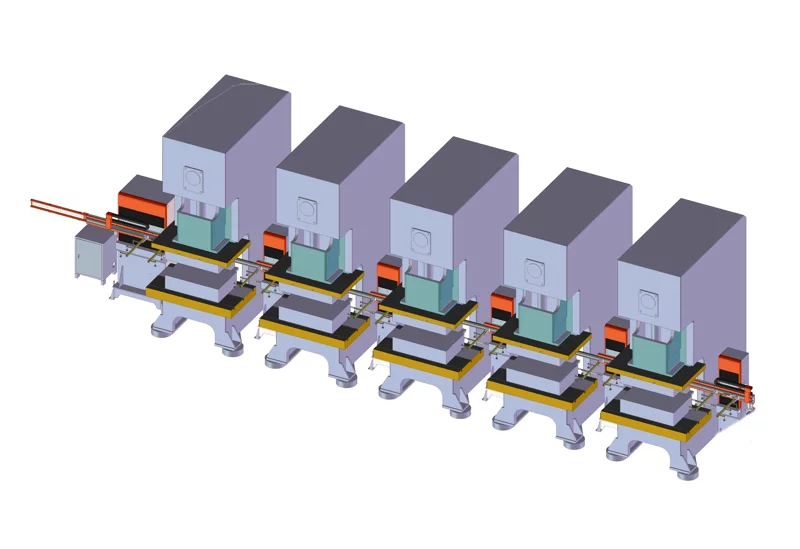

Introduction of Connecting Rod Type Manipulator Stamping Production Line

The connecting rod type manipulator stamping production line is a tandem stamping production solution centered on mechanical linkages, widely used in small and medium-sized stamping production. Through fixed horizontal and vertical movement, the robotic arm can achieve high-speed and stable workpiece transfer between multi-station stamping presses. This article will help you understand the linkage-type translational robotic stamping production line.

Components

1. Destacking System

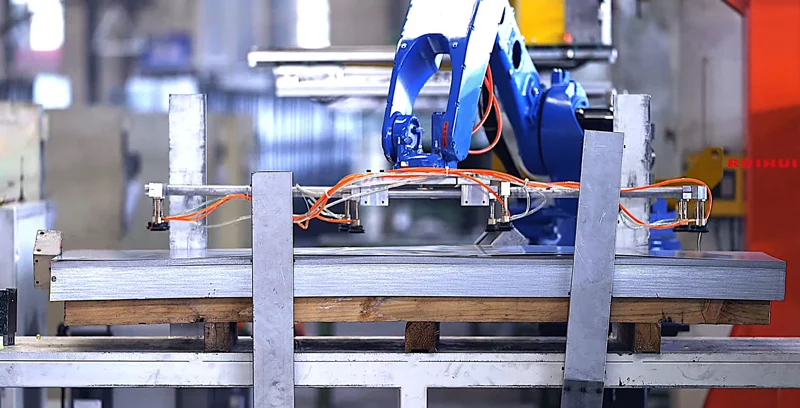

After the sheet material is extracted using a multi-axis robotic arm, it is placed on transfer rollers for transport. Since the connecting rod type manipulator is fixed, the plate is positioned and corrected at the end of the transmission process to ensure that the linkage robot can accurately extract the plate.

2. Connecting Rod Type Manipulator and Punching Machine

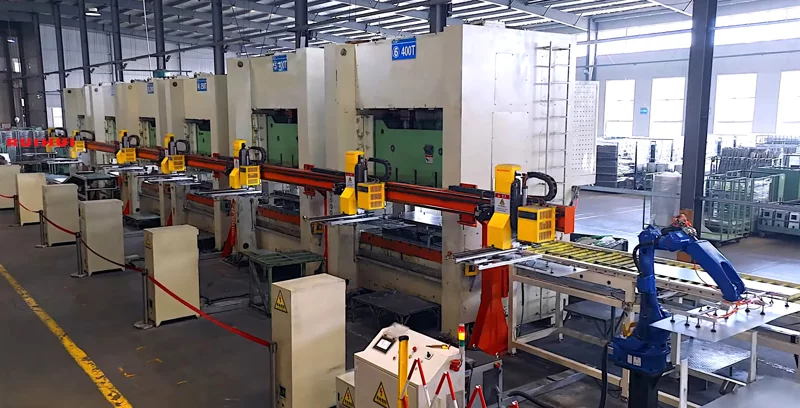

The connecting rod type manipulator and the stamping machine can maintain mechanical synchronization. The manipulators are uniformly fixed to the horizontal bar, and are driven horizontally by two main units at the front and rear. Since the horizontal movement of the manipulator is fixed, the spacing of the stamping machine is also fixed, which ensures that the robotic arm accurately places the workpiece into the mold.

3. Conveyor Belt

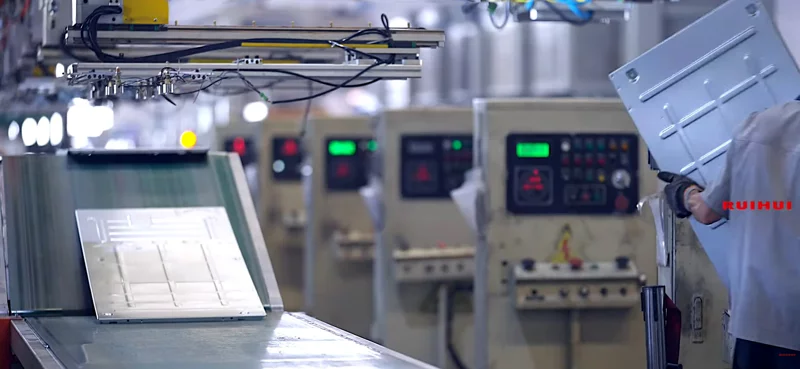

After processing, the workpieces are transported to the manual receiving area via conveyor belt, which ensures smooth transportation while also allowing for speed adjustment.

Main Features

1. Lower Cost

Link-type translational robots do not require a horizontal drive for each robot, resulting in lower costs compared to stand-alone robots.

2. Easy Operation

Since the horizontal movement of a link-type translational robot is fixed, the operation is simple and easy to learn.

3. Convenient Maintenance

Synchronous movement of the link-type translational robot is achieved through links, driven by two main units at the beginning and end of the links. Compared to the independent manipulator, its maintenance is significantly easier.

Application Areas

The connecting rod type manipulator stamping production line is suitable for small to medium-sized processing of a single specification. Hardware Industry: Standard hinges, support plates, connecting plates. Home Appliance Industry: Microwave oven internal support components, air conditioner side panel. Automotive Parts: computer power supply shell, computer chassis.
