What Is a Turnover Machine Detailed Explanation of the Working Principle for Flipping Entire Stacks of Sheets

Many stamping and sheet metal processing workshops are well‑equipped, but one step is often overlooked: flipping an entire stack of sheets. Sheets used in stamping production are rarely handled one by one—they are almost always transferred in stacks, with dozens or even hundreds of sheets piled together, making them thick and heavy. When the process requires flipping the whole stack, it becomes particularly troublesome. The machine specifically designed for this task is the turnover machine.

Let's start with what a turnover machine actually does. Simply put, it flips an entire stack of sheets by 90° or 180° according to production needs. The key word here is "entire stack"—not just one or two sheets, but dozens or even hundreds of sheets stacked together, flipped as a whole. This is a task that manual labor simply cannot perform—a stack weighing hundreds of kilograms or even several tons is not only impossible to flip, but even moving it is a struggle. Therefore, the turnover machine is specifically designed for scenarios where manual handling cannot cope with entire‑stack flipping.

When is whole‑stack flipping needed? For example, after a blanking line cuts coil into individual sheets and stacks them, the process may require flipping the stack to adjust the orientation for the next step—such as rotating 90° before entering the destacker. Alternatively, after a stack has been stored for a while, it may need to be flipped to inspect the bottom surface or to change the storage orientation. These situations might seem minor, but without a turnover machine, the stack can only be handled by overhead crane with manual assistance—slow, unsafe, and often forcing operators to bypass the process requirement and settle for less.

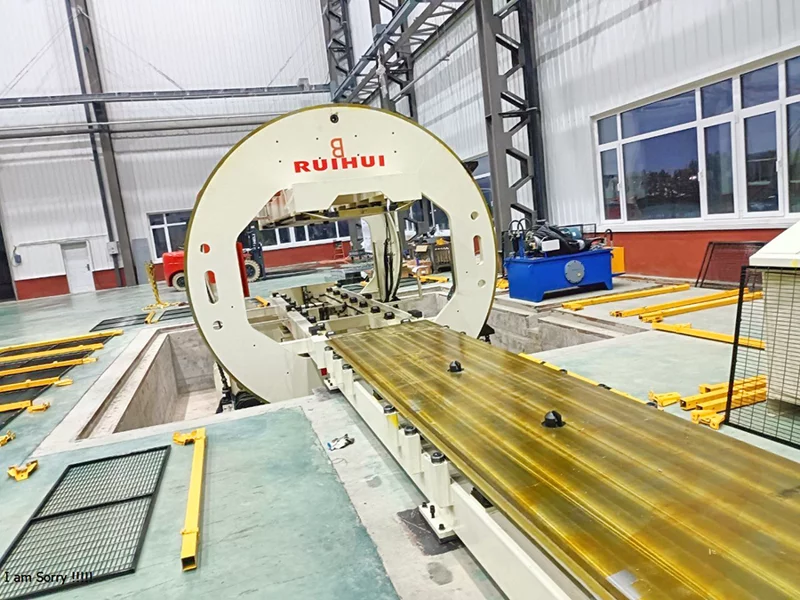

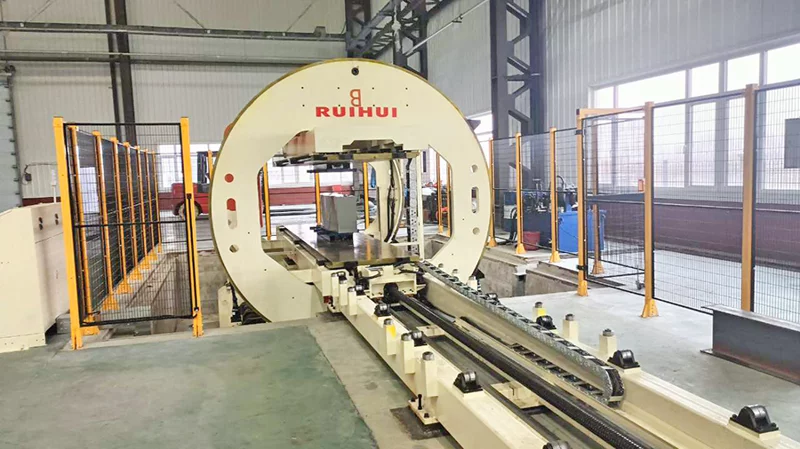

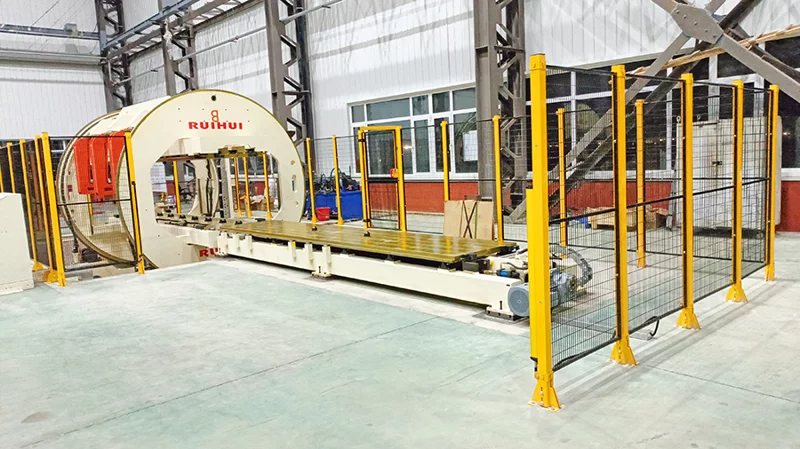

The working principle of a turnover machine is not complicated. The entire stack of sheets is first placed onto the turnover table. Through a rotation mechanism at the base, the table steadily flips the stack by 90° or 180°, then stops and positions the stack for the next process. The operation follows several steps: loading, clamping, flipping, positioning, and unloading.

The most critical aspect is "smoothness." A stack contains dozens of sheets; if it shakes or slips during flipping, the entire stack will scatter or shift, disrupting subsequent material handling. Therefore, the turnover table must be sturdy enough for the load; the clamping mechanism must securely hold the stack without loosening or slipping; the rotation drive must be smooth, with no sudden shocks during startup, rotation, or stopping; and the positioning after flipping must be precise, stopping exactly where needed. When all these elements work together, the whole‑stack flipping becomes both fast and stable.

With a turnover machine, this process is no longer a challenge. What previously required crane lifting and manual assistance is now completed automatically at the push of a button—smoothly, safely, and quickly. The process requirements are met, material flow along the line is streamlined, and workers no longer have to handle heavy, hazardous stacks, reducing both physical labor and safety risks.

Guangdong RuiHui Intelligent Technology Co., Ltd. has over twenty years of experience in stamping automation. It is a national "Specialized and Sophisticated" "Little Giant" enterprise, headquartered in Dongguan, with more than 400 employees and over 80 R&D staff. RuiHui's turnover machines feature servo‑driven flipping mechanisms for smooth operation and precise positioning, with load capacities ranging from hundreds of kilograms to several tons for whole stacks. They can flip 90° or 180°, and the reliable clamping system ensures stack stability without scattering during flipping. RuiHui's turnover machines are maturely applied in sheet stack flipping processes across automotive sheet metal, home appliance, and hardware industries, and can be customized based on sheet dimensions, stack weight, and process requirements. RuiHui has supplied turnover machines and supporting automation solutions to numerous stamping and sheet processing companies, with nearly 5,000 sets of equipment operating at customer sites both domestically and internationally. Their equipment has served well‑known OEMs and first‑tier suppliers including BYD, Geely, Volkswagen, Tesla, BMW, Mercedes‑Benz, Honda, and Land Rover Jaguar, giving them extensive experience in the field.

Flipping an entire stack of sheets may seem like a small step, but if done poorly, it can become a bottleneck in the production line. The turnover machine, with its simple yet refined principle, reliably handles the whole‑stack flipping that manual labor cannot manage, ensuring smooth material flow between processes—a truly practical link in stamping and sheet automation.
