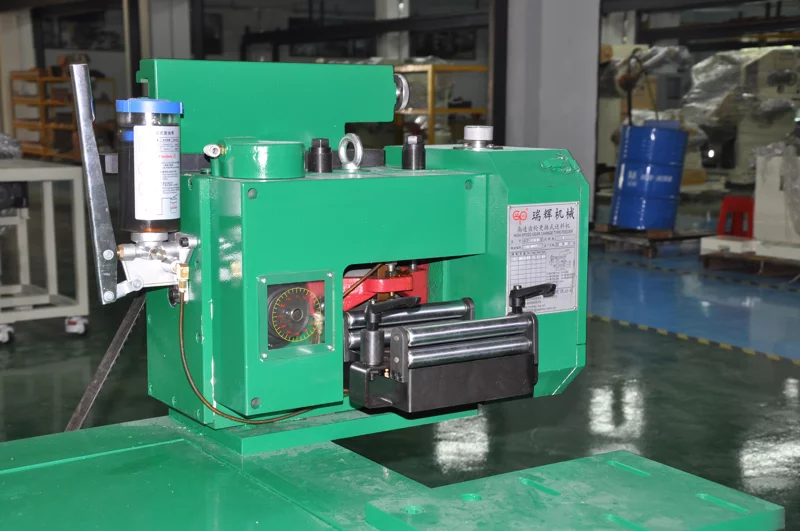

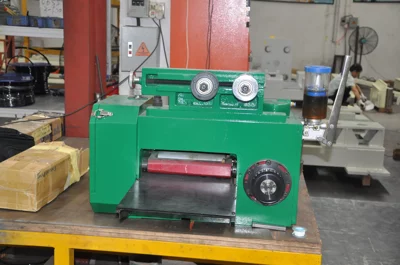

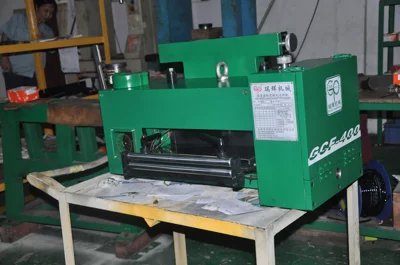

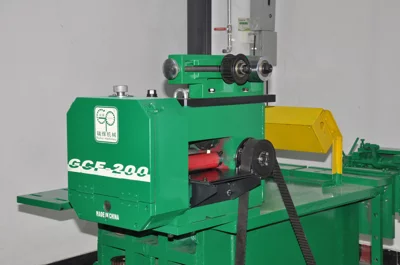

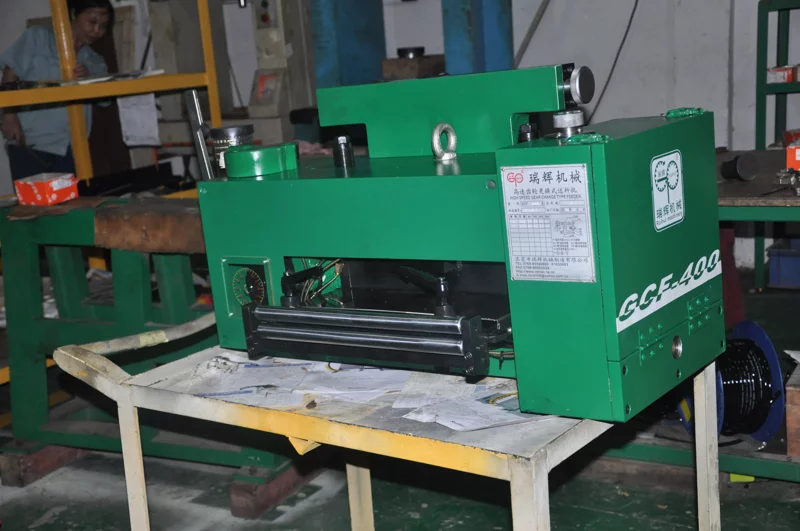

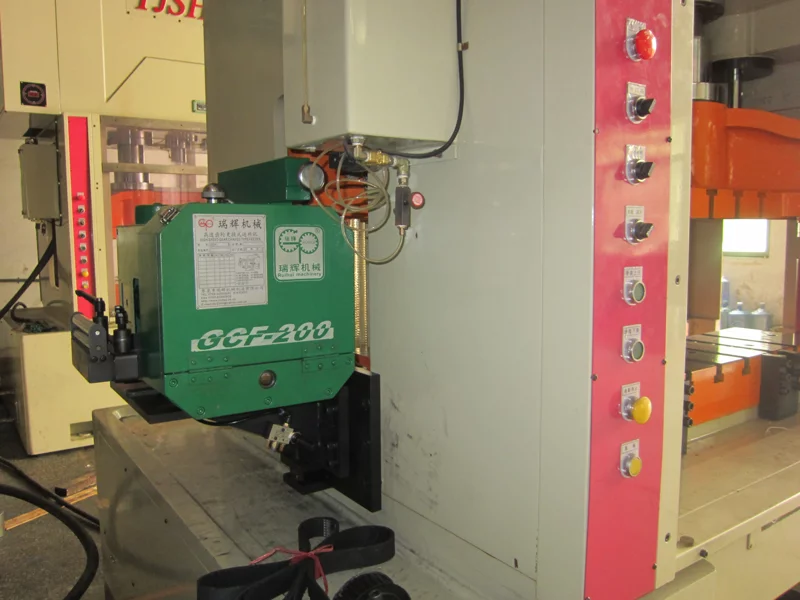

GCF Coil Feeder

The gear feeder is cam feeder, which adopts box structure, compact structure, not easy to deformation. The rotary cam mechanism is used to achieve intermittent feeding, and the stable gear transmission mechanism ensures the accuracy and stability of feeding, and the maximum stamping speed can be over 400 times/min. This machine is suitable for punching products requiring high-speed processing and high-precision feeding. It is mainly used with double-head material holders and S-type leveling machines and is suitable for punching products requiring high-speed processing and high precision feeding (stamping laminations of motor rotor and stator).

1. Suitable for automatic feeding in multi-process continuous die processing.

2. Regardless of material width and thickness, simply adjust the feeder to match the die.

3. The punch press is directly driven, consuming no electricity or gas, resulting in excellent energy savings and carbon reduction.

4. Accuracy varies depending on rotation speed and feed length. Generally, accuracy is ±0.05mm. With guide pins for positioning, accuracy can reach ±0.01mm.

5. Design and manufacturing can be tailored to customer material properties (guide profiles, bright-surface electroplated plates, and various special materials).
