RNC-F Coil Feeder
Basic Attributes
- Model RNC-F
- Coil Width 20~400 mm
- Coil Thickness 0.2～3.2 mm
- Feeding Speed 16 m/min
- Feeding Accuracy 0~500/±0.20 mm
Popular Models
-

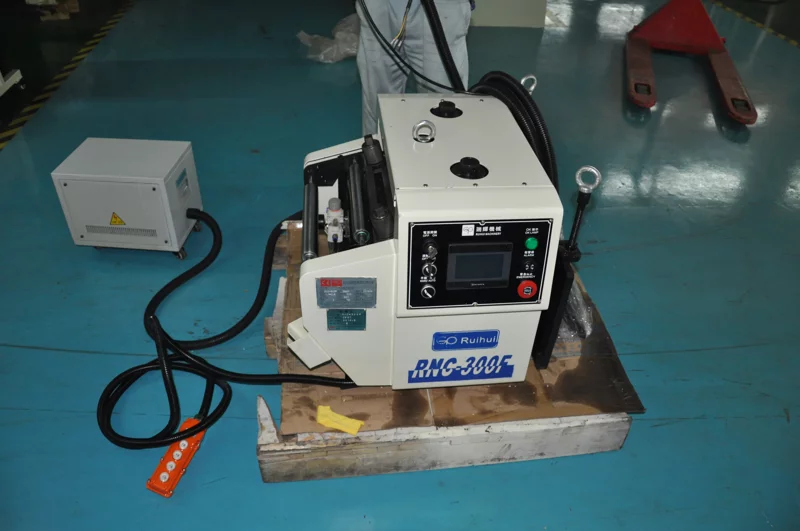

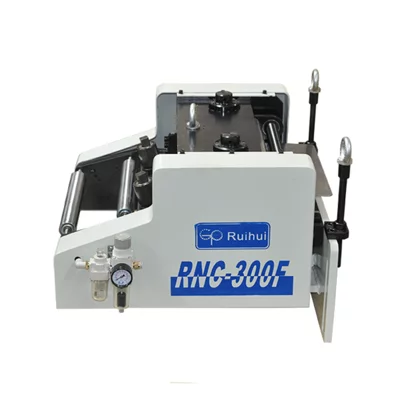

RNC-300F
-

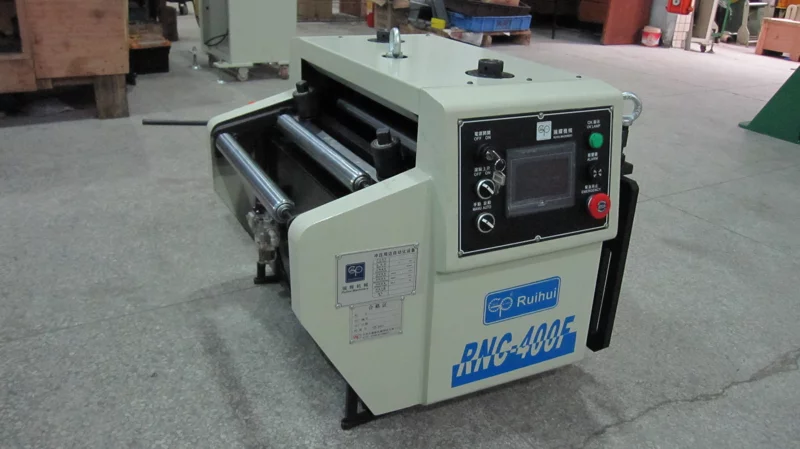

RNC-400F
Models List
-

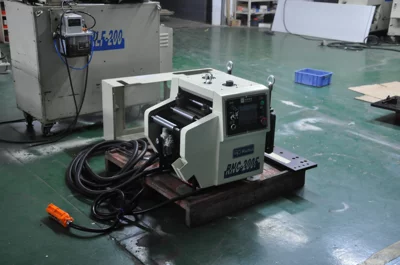

RNC-200F
The new model adopts pneumatic relaxation, and the mechanical structure and control system are integrated. Through CCS (Computer Controlled Servo System), high-precision multiple numerical control that was previously impossible is achieved. It can be operated quickly and accurately.

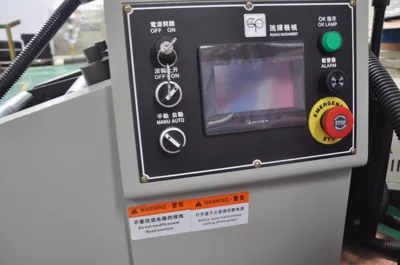

Due to the machine's structure, the control system motor typically uses a 0.75kW motor. Therefore, based on the operating principle, this machine can only reach a maximum of 400mm. The servo control system is a Japanese Yaskawa brand, and the touch screen is a Taiwanese Weilun brand. Custom brands are available upon request.
If required, standard cylinders can be converted to high-speed cylinders. By optimizing the structure and program, speeds can reach up to 300 SPM.
| Item | RNC-200F | RNC-300F | RNC-400F |
|---|---|---|---|
| Coil Width mm | 200 | 300 | 400 |
| Material Thickness mm | 0.2～3.2 | 0.2～3.2 | 0.2～3.2 |
| Pass Line mm | 70~170 | 70~170 | 70~170 |
| Pass Line Adjust mm | 80-150 | 80-150 | 80-150 |
| Feeding Speed m/min | 16 | 16 | 16 |
| Feeding Accuracy mm | Within ±0.2 | Within ±0.2 | Within ±0.2 |
| Relasing Performance SPM | ~200 | ~200 | ~150 |
| Releasing System | Pneumatic Type | Pneumatic Type | Pneumatic Type |
| Motor kw | AC0.4 | AC0.4 | AC0.75 |
| Power | AC220/1PHASE | AC220/1PHASE | AC220/1PHASE |
