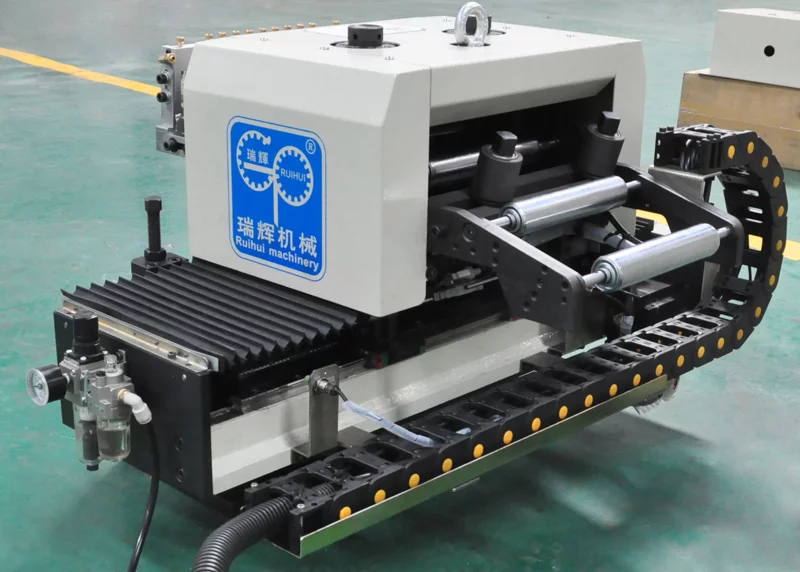

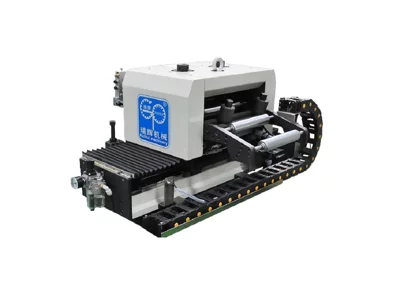

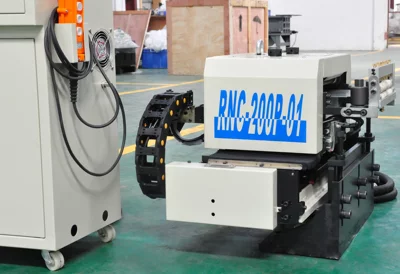

RNC-P Zig Zag Coil Feeder
Basic Attributes
- Model RNC-P
- Coil Width 300~1300 mm
- Coil Thickness 0.3~3.2 mm
- Feeding Speed 16 m/min
- Feeding Accuracy 0~500/±0.20 mm
Models List
-
RNC-300P
-
RNC-400P
-
RNC-500P
Description

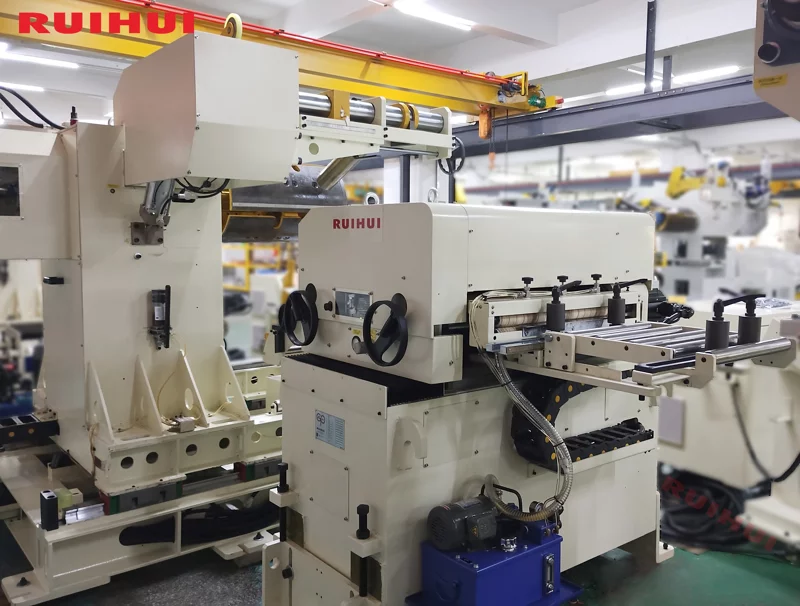

The Zig Zag coil feeder is mainly used in conjunction with heavy material racks, levelers, punch presses, and receiving devices to form a circular stamping production line. It replaces the traditional stamping mode that proceeds step by step along the material's extension direction, reducing the generation of stamping scraps, reducing production processes, saving time and labor, lowering production costs, and greatly improving production efficiency.
Product Specification
| Item | RNC-300P | RNC-400P | RNC-500P |
|---|---|---|---|
| Coil Width mm | 300 | 400 | 500 |
| Material Thickness mm | 0.3~3.2 | 0.3~3.2 | 0.3~3.2 |
| L to R Displacement mm | ±150 | ±200 | ±250 |
| Roll Pressure | Spring Type | Spring Type | Spring Type |
| Releasing System | Pneumatic Type | Pneumatic Type | Pneumatic Type |
| Power Supply | 3Phase 220V/380V/50HZ | 3Phase 220V/380V/50HZ | 3Phase 220V/380V/50HZ |
