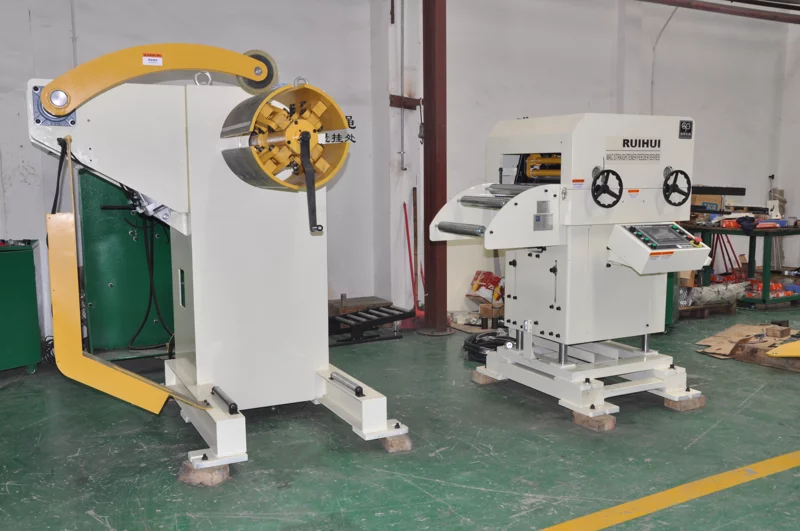

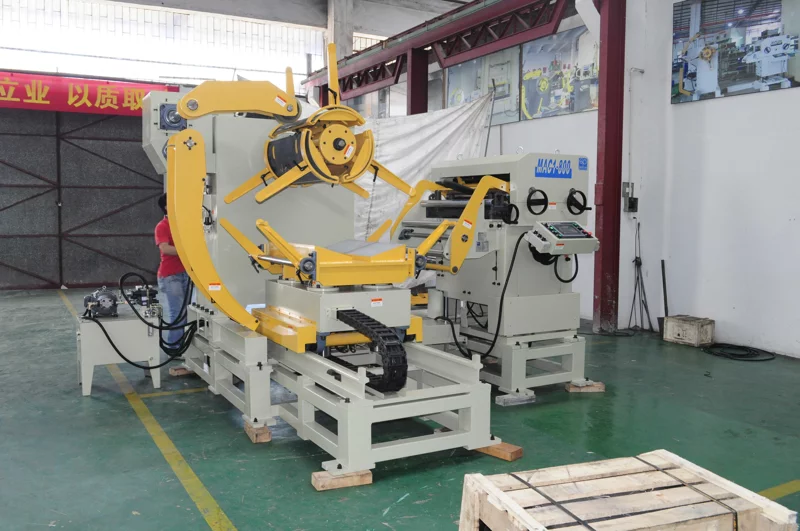

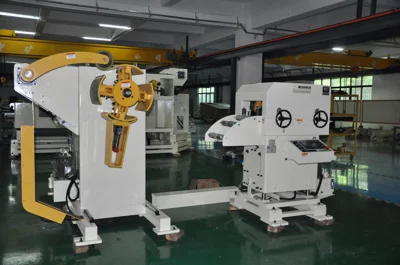

MAC1 NC Straightener Feeder
Basic Attributes
- Model MAC1
- Coil Width 50~400 mm
- Coil Thickness 0.2~3.0 mm
- Coil Weight Capacity 3,000 kg
- Feeding Speed 16 m/min
- Feeding Accuracy 0~500/±0.20 mm
Popular Models
-
MAC1-300
Models List
-
MAC1-400
The MAC1 three-in-one feeder integrates the functions of a material rack, leveler, and feeder into a single unit, saving significant space. Loading, feeding, blocking, folding, leveling, feeding, and changing materials can all be completed by one person using a single control console. This significantly reduces labor costs and effectively resolves the issue of inconsistent leveling and feeding, achieving high-speed leveling and feeding while maintaining a sturdy and aesthetically pleasing appearance. It can accommodate materials with a maximum width of 400mm and a thickness of 3.0mm.
MAC1 Standard Features
1. Photoelectric arc control system
2. Hard chrome-plated feed rollers and correction rollers
3. Feed outlet guide mechanism
4. Pressing arm mechanism
5. Advanced turbine height adjustment mechanism for feed line
6. Feeder rack with frequency converter
7. Japanese-made dial indicator
8. Arc control roller
| Item | MAC1-300 | MAC1-400 |
|---|---|---|
| Coil Width mm | 50~300 | 50~400 |
| Material Thickness mm | 0.2~3.0 | 0.2~3.0 |
| Material Weight kg | 3000 | 3000 |
| Coil O.D. mm | 1200 | 1200 |
| Coil I.D. mm | 508 | 508 |
| Feeding Length mm | ~400※ | ~400※ |
| Feeding Speed m/min | 16~24 | 16~24 |
| Straightener Roll | Upper4/Lower3 | Upper4/Lower3 |
| Feeding Roll | 1 | 1 |
| Main Motor kw | AC2.0 | AC2.0 |
| Mandrel Expansion | manual / hydraulic | manual / hydraulic |
| Reel Motor kw | AC1.5 | AC1.5 |
| Power | 3Phase 220V/380V/50HZ | 3Phase 220V/380V/50HZ |
| Operating Air Mpa | 0.49 | 0.49 |

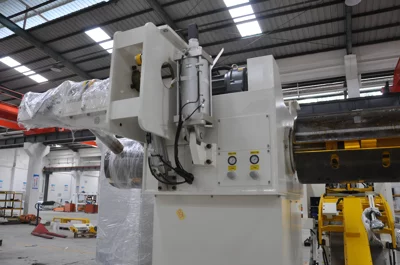

MAC1 Pneumatic Device

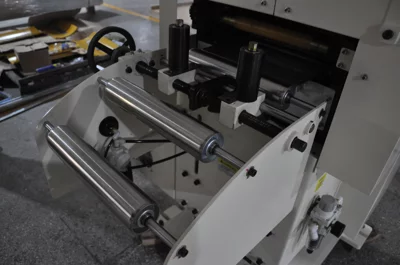

MAC1 Feeding Adjustment
