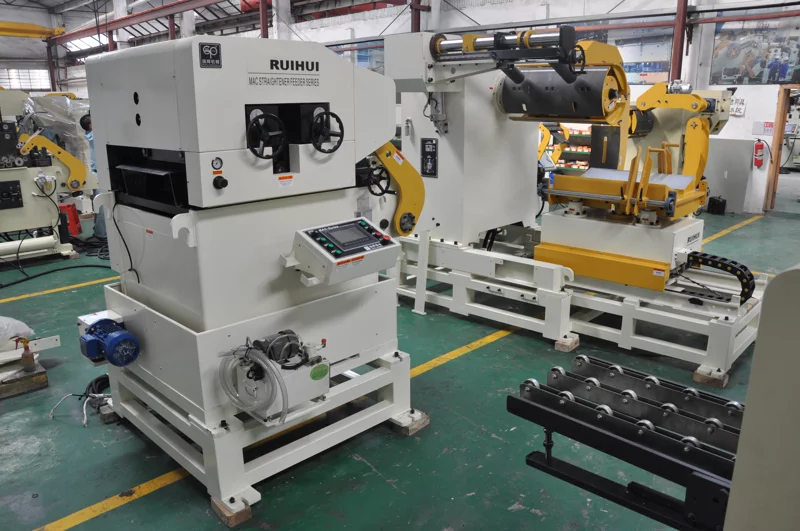

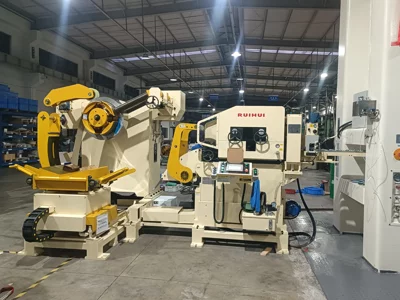

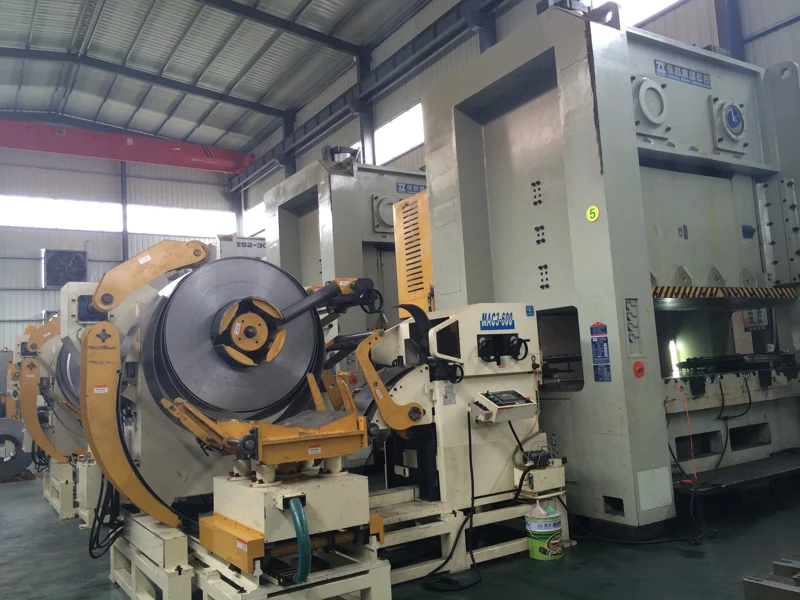

MAC3 NC Straightener Feeder

MAC3 NC Straightener Feeder

❮ ❯

Basic Attributes

Model MAC3
Coil Width 50~1000 mm
Coil Thickness 0.3~4.5 mm
Coil Weight Capacity ~7000 kg
Feeding Speed 16 m/min
Feeding Accuracy 0~500/±0.20 mm

Popular Models

MAC3-400

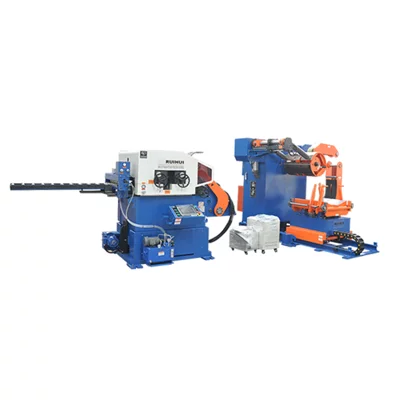

MAC3-600

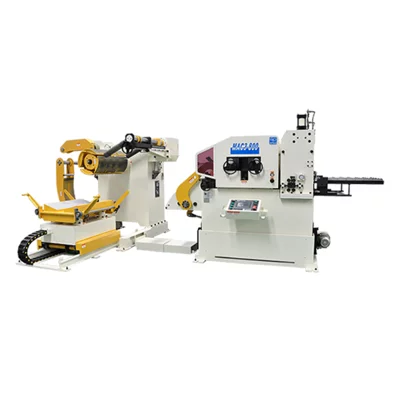

MAC3-800

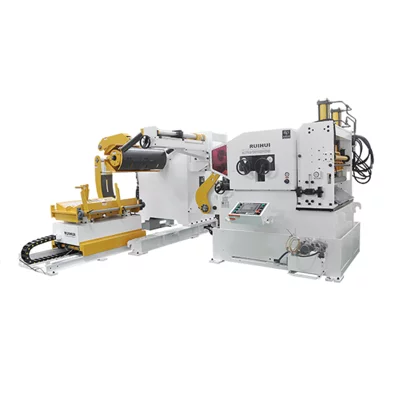

MAC3-1000

Contact now

Description

This type of machine is primarily designed for straightening materials with a thickness of 0.3 to 4.5 mm. It typically uses 7 or 9 rollers, corresponding to a maximum material width of 1000 mm. It is widely used in the hardware and automotive parts industries. Currently, we have custom-made 600 mm models with a maximum feed rate of 85 SPM.

1. The innovative mechanical structure minimizes the required operating space.

2. The human-machine interface allows for simple operation and convenient material feeding.

3. A Japanese-made servo motor ensures high-precision feeding.

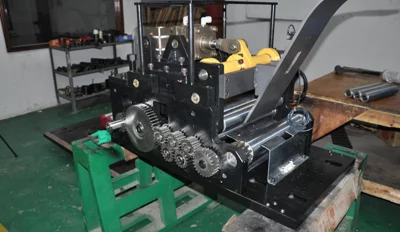

4. The feed rollers and leveling rollers undergo a special heat treatment, resulting in high hardness (HRC 60°), wear resistance, and long service life.

5. A wide range of models are available to best suit the size of the press and the application. We can also manufacture custom specifications.

Product Specification

Item	MAC3-400	MAC3-600	MAC3-800	MAC3-1000
Coil Width mm	50~400	50~600	50~800	50~1000
Material Thickness mm	0.3~4.5	0.3~4.5	0.3~4.5	0.3~4.5
Material Weight kg	5000	5000	5000、7000	7000
Coil O.D. mm	φ1400	φ1400	φ1400	φ1400
Coil I.D. mm	φ508	φ508	φ508	φ508
Feeding Length mm	~500※	~500※	~500※	~500※
Feeding Speed m/min	16~24	16~24	16~24	16~24

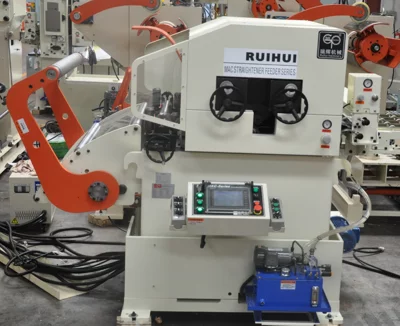

Straightener Roll	Upper 4/Lower 3	Upper 4/Lower 3	Upper 4/Lower 3	Upper 4/Lower 3
Feeding Roll	1	1	1	1
Main Motor kw	AC4.4	AC4.4	AC5.5	AC7.5

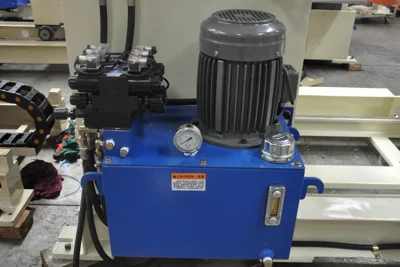

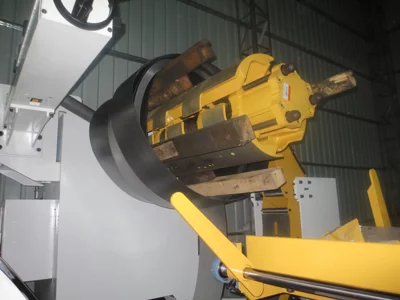

Mandrel Expansion	hydraulic	hydraulic	hydraulic	hydraulic
Reel Motor kw	2.2	2.2	2.2、3.7	3.7
Power	3Phase 220V/380V/50HZ	3Phase 220V/380V/50HZ	3Phase 220V/380V/50HZ	3Phase 220V/380V/50HZ
Operating Air Mpa	0.49	0.49	0.49	0.49
