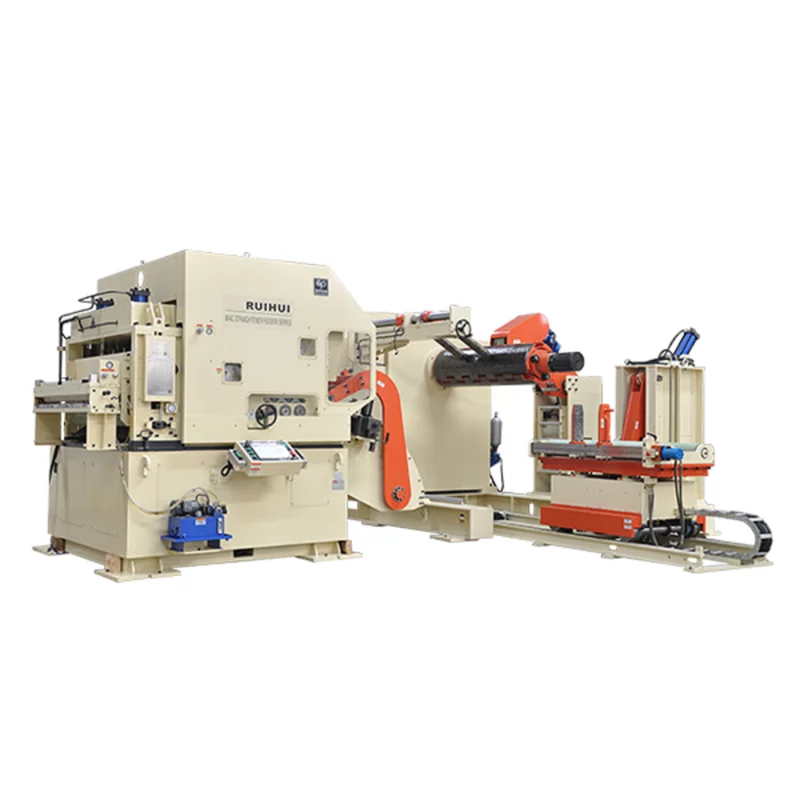

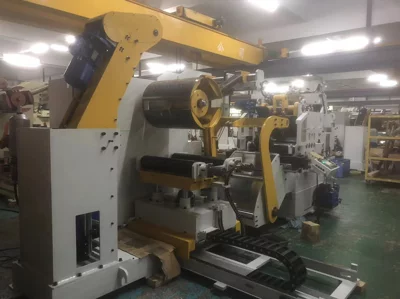

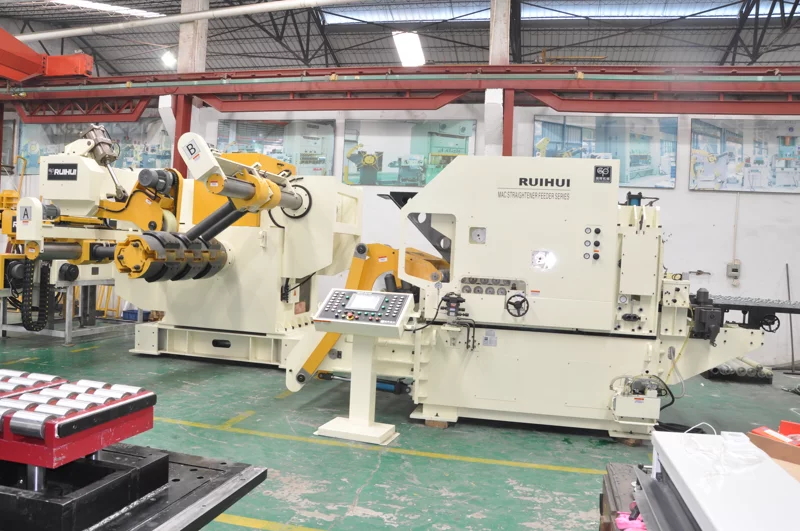

MAC4-H NC Straightener Feeder
Basic Attributes
- Model MAC4-H
- Coil Width 70~2000 mm
- Coil Thickness 0.6~6.0 mm
- Coil Weight Capacity ~10000 kg
- Feeding Speed 16 m/min
- Feeding Accuracy 0~500/±0.20 mm
Popular Models
-
MAC4-600H
-
MAC4-800H
-
MAC4-1000H
-
MAC4-1300H
This new servo-assisted unwinding and leveling machine is specifically designed for automated feeding of thick and medium-thick plates with wide strip widths and high yield strengths during stamping. This machine typically features 9 or 11 rollers. It can stress-relieve and straighten high-strength carbon steel plates. It is suitable for high-strength plates (yield strength 600N/mm²), such as cold-rolled, pickled, galvanized, and steel sheets.
1. This machine integrates unwinding, leveling, feeding, and shearing, offering easy operation and a compact footprint.
2. It utilizes a servo system imported from Japan to ensure high-precision feeding.

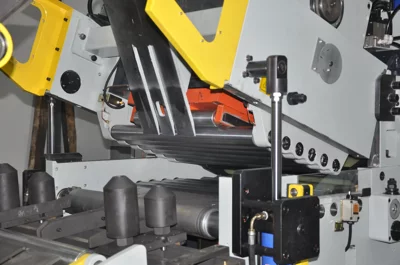

3. The leveling back-pressure roller, specifically designed for strong and thick plates, provides guaranteed stress relief.
| Item | MAC4-600H | MAC4-800H | MAC4-1000H | MAC4-1300H |
|---|---|---|---|---|
| Coil Width mm | 70~600 | 70~800 | 70~1000 | 70~1300 |
| Material Thickness mm | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 |
| Material Weight kg | 5000 | 5000 | 7000 | 10000 |
| Coil O.D. mm | 1400 | 1400 | 1400 | 1400 |
| Coil I.D. mm | 508 | 508 | 508 | 508 |
| Feeding Length mm | ~500※ | ~500※ | ~500※ | ~500※ |
| Feeding Speed m/min | 16~24 | 16~24 | 16~24 | 16~24 |
| Straightener Roll | Upper 6/Lower 5 | Upper 6/Lower 5 | Upper 6/Lower 5 | Upper 6/Lower 5 |
| Feeding Roll | 1 | 1 | 1 | |
| Main Motor kw | AC15.0 | AC15.0 | AC15.0 | AC22.0 |
| Mandrel Expansion | hydraulic | hydraulic | hydraulic | hydraulic |
| Reel Motor kw | AC2.2 | AC2.2 | AC3.7 | AC7.5 |
| Power | 3Phase 220V/380V/50HZ | 3Phase 220V/380V/50HZ | 3Phase 220V/380V/50HZ | 3Phase 220V/380V/50HZ |
| Operating Air Mpa | 0.49 | 0.49 | 0.49 | 0.49 |

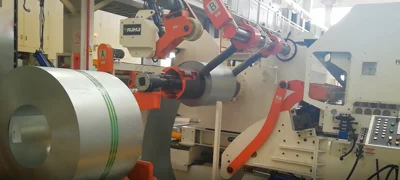

MAC4-H Decoiler Spindle

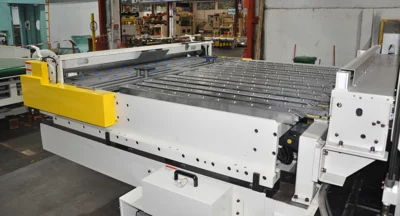

MAC4-H Material Support Rack
