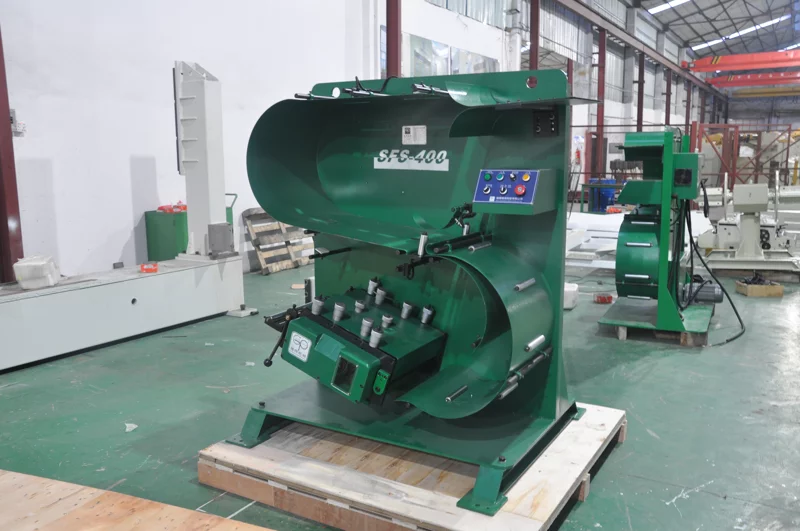

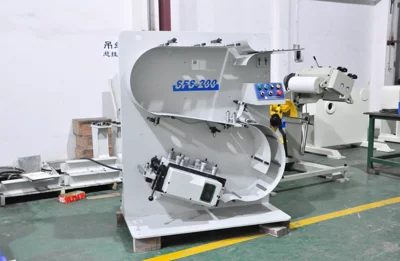

SFS Straightener
Basic Attributes
- Model SFS
- Coil Width ~300 mm
- Coil Thickness 0.35~1.6 mm
- Feeding Speed 40 m/min
Popular Models
-
SFS-200
Models List
-
SFS-300
Description
The rollers are chrome-plated, ensuring high precision, durability, and minimal space requirements. They allow for fully synchronized production with punch presses, resulting in high speed, no indentations on the material surface after leveling, excellent stress relief, and high flatness. The horsepower of the straightening machine is increased to ensure sufficient traction, which can pull the non-powered decoiler to run smoothly and unwind.
Product Specification
| Item | SFS-200 | SFS-300 |
|---|---|---|
| Coil Width mm | 200 | 300 |
| Coil Thickness mm | 0.35~1.6 | 0.35~1.6 |
| Feeding Speed m/min | 40 | 40 |
| Straighten Rolls | Upper 9/Lower 10 | Upper 9/Lower 10 |
| Power | 3Phase 220V/380V/50HZ | 3Phase 220V/380V/50HZ |
