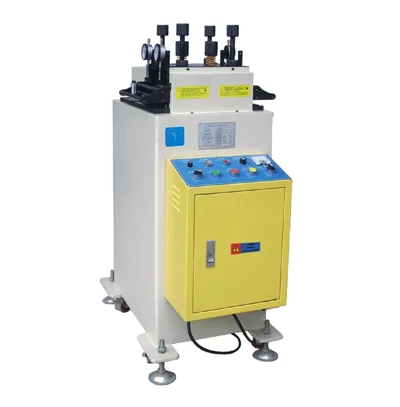

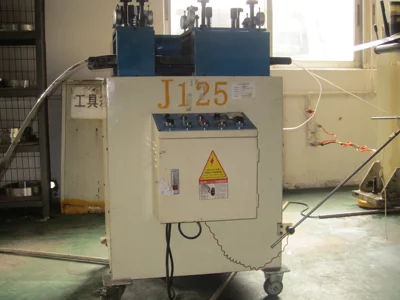

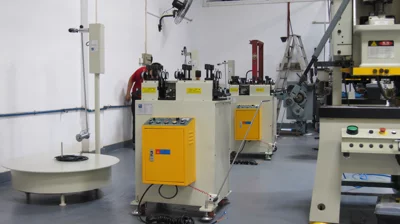

SNL Straightener
Basic Attributes
- Model SNL
- Coil Width ~300 mm
- Coil Thickness 0.1～0.6 mm
- Feeding Speed 6~22 m/min
Popular Models
-
SNL-200
Models List
-
SNL-100
-
SNL-300
The SNL thin plate precision leveling machine is an improved model, employing a 9-row upper and 10-row lower leveling structure. The leveling rollers have a diameter of Ф20mm and are primarily suitable for materials with a thickness of 0.1-0.6mm. This model features handle adjustment and a graduated dial display, achieving a leveling accuracy of 0.01mm. It is suitable for stainless steel, copper, brass, and other metal sheets.
The two-stage leveling eliminates the need for intermediate leveling adjustments during the coil leveling process (from head to tail), ensuring consistent flatness. The transmission device is controlled by a frequency converter (cycle control), allowing synchronization with the punch press speed for smooth material transport. It can be used with any feeder.
| Item | SNL-100 | SNL-200 | SNL-300 |
|---|---|---|---|
| Coil Width mm | 100 | 200 | 300 |
| Coil Thickness mm | 0.1～0.6 | 0.1～0.6 | 0.1～0.6 |
| Feeding Speed m/min | 6~22 | 6~22 | 6~22 |
| Motor hp | 1/2 | 1 | 1 |
| Inverter | Provided | Provided | Provided |
| Work Rolls | Upper 9/Lower 10 | Upper 9/Lower 10 | Upper 9/Lower 10 |
| Back Up Rolls | N/A | N/A | N/A |
| Adjustment | Quatre independent type | Quatre independent type | Quatre independent type |
| Loop Control | Touch Sensor | Touch Sensor | Touch Sensor |
| Work Roll Opening | Manual Operation | Manual Operation | Manual Operation |
| Drive Method | All Rolls are Driven with Side Gear | All Rolls are Driven with Side Gear | All Rolls are Driven with Side Gear |
