Are There Successful Application Cases of 3-Axis Multi-Station Transfer Robots in Automotive Stamping Plants

The answer to this question is a resounding yes. In fact, it's fair to say that the automotive industry is one of the most mature and widespread application fields for 3-axis multi-station transfer robots.

Why does the automotive industry favor 3-axis transfer robots so much? Let's look at the characteristics of automotive stamping parts. Auto body panels—such as doors, hoods, roof panels, and chassis frames—have two notable features: first, they are large in size; and second, they have complex shapes that often require five or six or even more processes, including drawing, trimming, and piercing, to reach their final form. These large parts are produced on heavy-duty stamping lines of 1,200 tons or more, placing extremely high demands on the rigidity and precision of automation equipment.

For such large parts, manual handling is not only back-breaking but also makes it very difficult to maintain precision. A slight hand tremor could cause edge damage or scratches on the part—something absolutely unacceptable for automotive exterior panels. A 3-axis transfer robot can reduce safety hazards by keeping personnel away from heavy workpieces and high-speed stamping areas. Ordinary robots or simple manipulators may not be able to reach deep into the die, or may lack the load capacity to pick up the part. In contrast, the 3-axis transfer robot features a three-axis linear motion structure with high rigidity and high repeat positioning accuracy, improving product consistency and ensuring dimensional stability for every part produced.

The 3-axis transfer robot is practically tailor-made for this scenario. It can move through large ranges in all three dimensions—X, Y, and Z—with long reach and high load capacity (ranging from several kilograms to several hundred kilograms). It can reach directly inside large dies, firmly grasp heavy workpieces formed by presses of over a thousand tons, flip them in mid-air, and accurately place them into the next station. The entire process is smooth, fast, and avoids scratching the product surface, resulting in a significant increase in production efficiency.

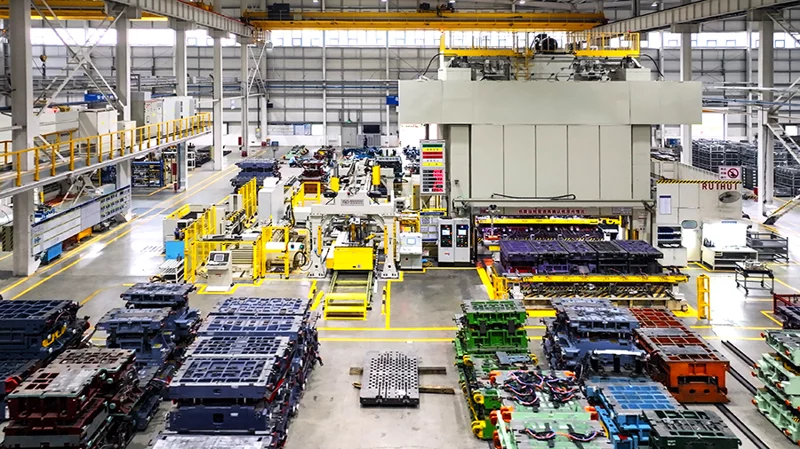

In today's automotive stamping plants, you'll hardly ever see manual handling on large panel production lines. Instead, 3-axis transfer robots paired with multi-station dies complete all operations for a complex part within a single massive press in just seconds. This production method not only delivers extremely high efficiency but also ensures excellent product quality consistency by eliminating human interference in intermediate steps.

Guangdong RuiHui Intelligent Technology Co., Ltd. has extensive practical experience in this area. With over two decades in the industry, RuiHui's 3-axis transfer robots have been deeply applied in the automotive sector—not only supplying to domestic auto parts manufacturers, but also serving many Tier 1 suppliers of globally renowned OEMs.

For instance, RuiHui equipment can be found in the supply chains of major automotive brands such as BYD, Geely, Volkswagen, Tesla, BMW, Mercedes-Benz, and Honda. What does this tell us? It demonstrates that RuiHui's equipment has passed the rigorous standards of top-tier international automakers in terms of precision, speed, and reliability. RuiHui's robots feature a three-axis linear motion structure with high rigidity and high repeat positioning accuracy, specifically designed to handle the "challenging" large and precision parts in automotive stamping.

Moreover, automotive plants demand extremely high line uptime—every minute of downtime incurs substantial losses. The reason RuiHui's equipment has earned a place in these major plants is its reliability. RuiHui not only provides the equipment, but also offers customized services tailored to the specific process requirements of automotive manufacturers—whether that's in-line cleaning, special end-effector designs, or other needs.

So, if you're in the automotive industry or planning to support automotive stamping operations, a 3-axis multi-station transfer robot isn't a question of "whether to use it"—it's a standard necessity. And a supplier like RuiHui, with extensive automotive industry experience, is naturally the most reliable choice.
