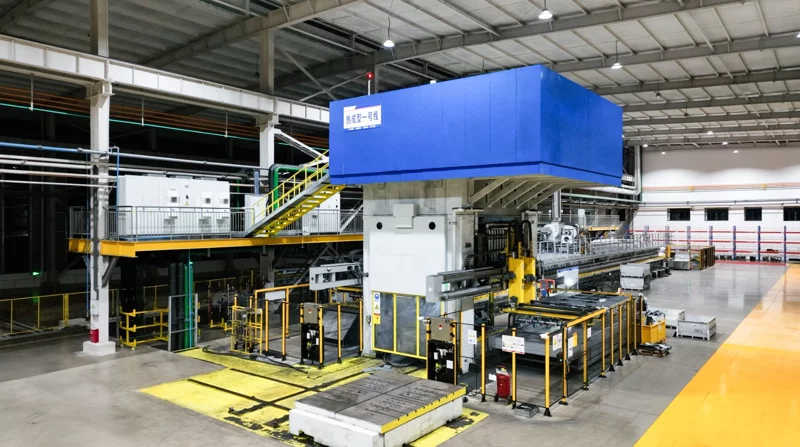

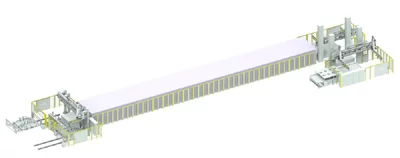

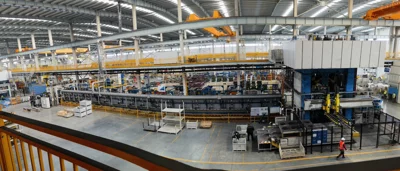

Roller Furnace Hot Forming Automation Stamping Line
Roller furnace hot forming automatic stamping production line is an advanced manufacturing technology, which combines roller body furnace thermoforming and stamping process, and realizes continuous and high-efficiency production process through highly automated production line. The production line is widely used in the field of metal material processing and forming, which has brought important progress and promotion to the manufacturing industry.
Roll furnace hot forming automatic stamping production line usually includes destacking system, automatic feeding system, punch press, roll furnace, transmission system, 3D transfer and control system, and other components. The automatic feeding system automatically transports raw materials to the punching machine to ensure a continuous supply for production. The punch press uses a mold to stamp and form metal materials. Roll furnaces provide a high-temperature environment to enable the thermoforming process. The transfer system smoothly transfers the stamped parts to the roller furnace area. The control system intelligently manages the entire production line to realize automatic control and monitoring of the production process.
| Item | Roller Furnace Hot Forming Automation Stamping Line |
|---|---|
| Material MAX. With mm | 2500*2300 |
| Material MIN. With mm | 400*150 |
| Material Thickness mm | 0.6~3.5 |
| Number of Production Pieces | 1 mold 1 piece~1 mold 4 pieces |
| Material | Steel |
| Adaptation Furnace | Continuous Furnace |
| Speed Range SPM | ≥4 |
| Configuration system | Siemens control system and drive system |

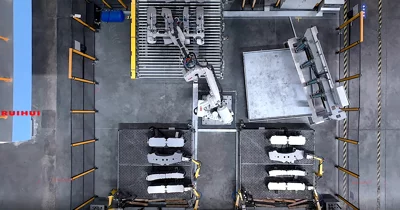

Double-Station Destacking
A roller furnace hot forming production line is typically equipped with a dual-station destacking system. By using two alternating stacking stations, it enables non-stop stack switching. While destacking is carried out on one side, the other side can pre-stage the next stack of materials, ensuring continuous and stable feeding.

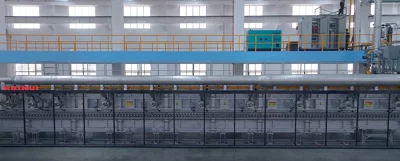

Continuous Heating by Roller Furnace
The sheets enter the furnace continuously through the roller conveyor and are gradually heated in multiple heating zones. This makes the system suitable for large-volume production, offering high overall efficiency and stable heating cycles.

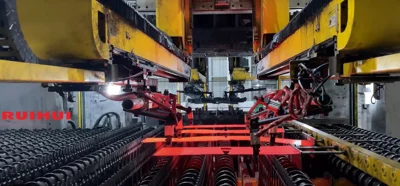

Tapping Positioning + Material Lifting
Precise positioning is achieved through a tapping device, after which a lifting mechanism raises the material so that the manipulator can grasp it more smoothly and securely. Finally, the sheet is placed into the press mold in a stable and accurate manner.
