Understanding Three Different Types of Destacking System in Metal Stamping

In metal stamping, the destacking system is responsible for breaking down stacked sheets into individual pieces and placing them on a conveyor belt to be transferred to the next work area. A destacking system typically consists of loading trolley, destacking manipulator, and conveyor belt. This article will help you understand and choose between truss destacking system and 6-axis robot destacking system.

Truss Destacking System

Overview

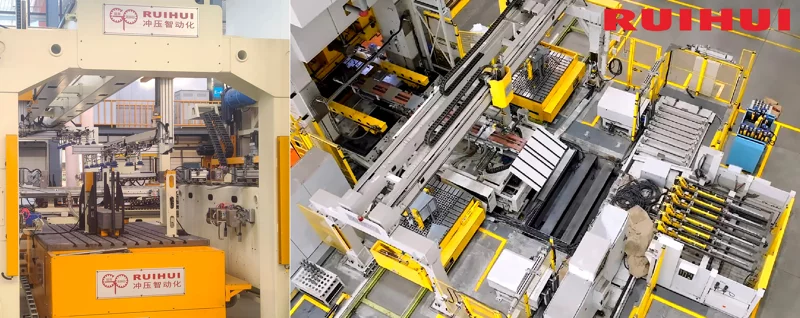

(Overall appearance of the truss destacking system.)

The frame of a truss destacking device typically consists of two portal-shaped supports and a crossbeam. The manipulator is located on the crossbeam and can move freely. It occupies less ground space and mainly uses the overhead space. This design makes full use of factory space.

Features

1. The truss frame has a stable overall structure, suitable for long-term, high-frequency operation.

2. Through alternating operation of two destacking manipulators, a faster destacking cycle time can be achieved, with high consistency in repetitive movements, which helps improve overall line productivity.

6-Axis Robot Destacking System

Overview

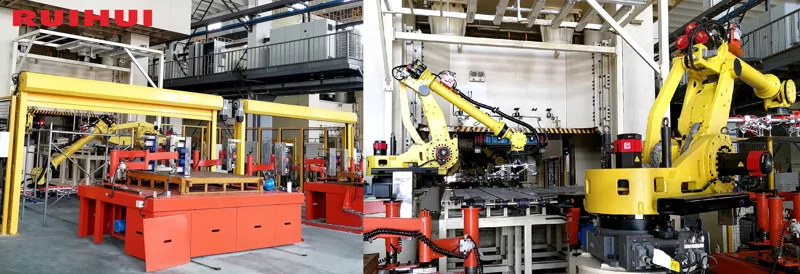

(Overall appearance of the 6-axis robot destacking system.)

The 6-axis robot has six degrees of freedom, enabling multi-angle and multi-pose movement within space. Compared to the truss-type frame, the 6-axis robot requires more ground space.

Features

1. Highly flexible with many movable joints. Capable of performing specific processing steps such as flipping.

2. The end effector can be automatically replaced, which is more automated than the truss-type destacking manipulator.

Top Suction Destacking System

Overview

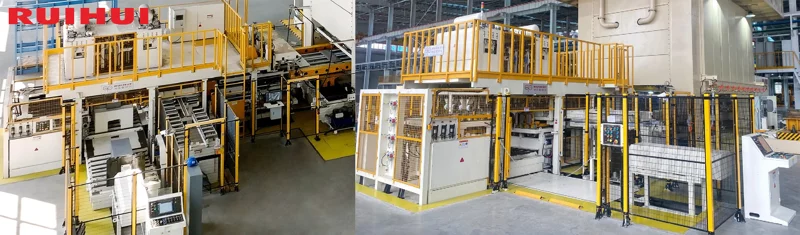

(Overall appearance of the top suction destacking system.)

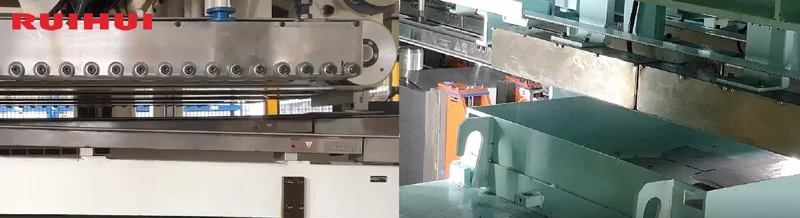

The top suction destacking system works by having top suction cups directly pick up sheets, which are then transferred by the top conveyor belt. There are two conveyor belts for transmission: the upper and lower conveyor belts. A double-sheet detection is performed during convey; if the detection passes, the sheet continues to the end released to the lower conveyor belt, and then transferred to the next work area by the lower conveyor belt.

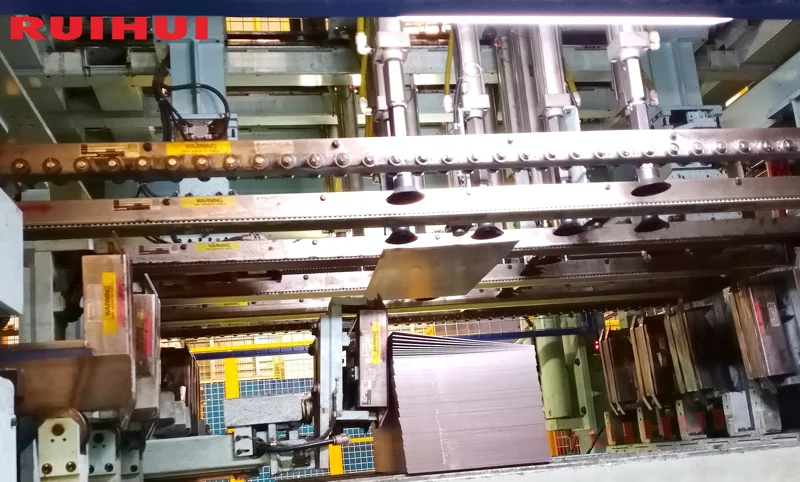

(Conveyor belts and dual collection bins of the top suction destacking system.)

Features

The suction cups are independently controllable and have the parameter memory function, allowing for the selection of specific suction cups to grip different sheets, without manual adjustment.

(Here is a comparison of truss destacking, 6-axis robot destacking, and top suction destacking.)

Application

Truss destacking and top suction destacking are suitable for use in automated stamping lines with high cycle time requirements, and they are commonly used in transfer die stamping.

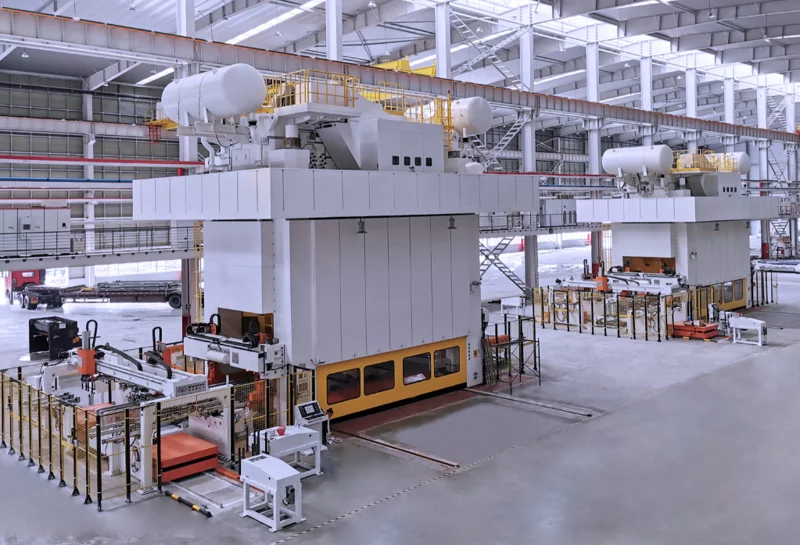

(This is the truss destacking stamping line.)

(This is the top suction destacking stamping line.)

(This is a comparison of transfer die stamping and tandem stamping.)

6-axis robot destacking is often used in tandem stamping of large presses, and is more advantageous in applications with multiple product types, small batches, or high requirements for workpiece posture.

(This is the 6-axis robot destacking stamping line.)
